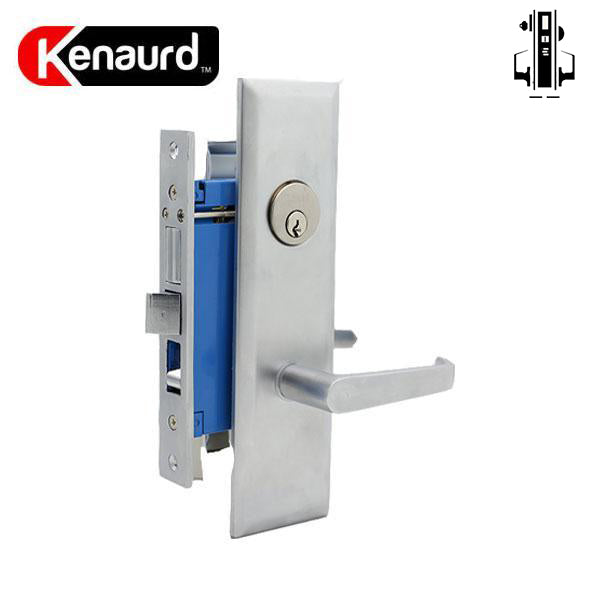

Can you provide the length, width, and thickness of this mortise lockset?
Heavy Duty Mortise Lockset w/ Lever - 2-1/2" Backset - 26D - Satin Chrome - LH
Status:
Open Mar 18, 2026 - 10:47 AM
1answer
Answer
Mar 18, 2026 - 10:47 AM
For SKU KMLWL01-SS-SC1-LH, the dimensions are the outside trim plate at 10" x 3" and the inside trim plate at 7-1/8" x 2-3/8". The lock also uses a 1-1/8" long SC1 mortise cylinder and is made for 1-1/4" to 1-3/4" door thickness with a 2-1/2" backset.
