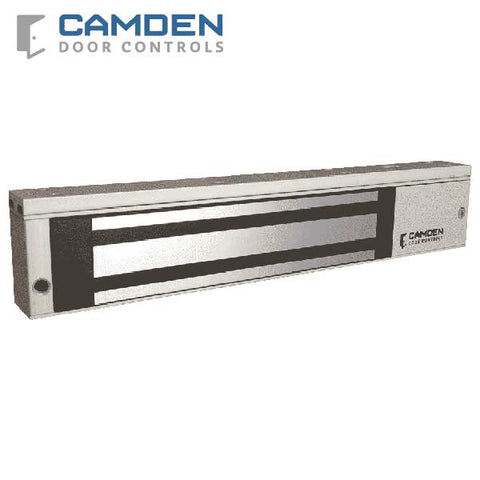

Camden CX-91S-06V2 - Single Door Surface Mount Mag Lock - 600 lb Holding Force - 12/24 VDC - UL/UCL Listed
Camden CX-91S-06V2 - Single Door Surface Mount Mag Lock - 600 lb Holding Force - 12/24 VDC - UL/UCL Listed
Camden CX-91S-06V2 - Single Door Surface Mount Mag Lock - 600 lb Holding Force - 12/24 VDC - UL/UCL Listed
Camden CX-91S-06V2 - Single Door Surface Mount Mag Lock - 600 lb Holding Force - 12/24 VDC - UL/UCL Listed
Camden CX-91S-06V2 - Single Door Surface Mount Mag Lock - 600 lb Holding Force - 12/24 VDC - UL/UCL Listed

Camden CX-91S-06V2 - Single Door Surface Mount Mag Lock - 600 lb Holding Force - 12/24 VDC - UL/UCL Listed

$84.30 $160.00
Availability: Available
Wishlist
  • Product SKU: CMD-CX-91S-06V2
  • NSID: 26287
  • CMD-CX-91S-06V2
    Item number: XXXX

    Camden CX-91 Series single door magnetic locks offer the best performance and value.

    • 600 and 1,200 Lb. single door models are UL and CUL listed
    • Weather and vandal resistant construction proven over thousands of installations
    • Surface and mortise mount models
    • Compatible with all access/egress systems
    • Field selectable 12/24 VDC operation
    • Onboard MOV power surge protection prevents damage to mag lock
    • A wide range of mounting brackets and spacers available
    • Lifetime warranty


    $84.30
    Get it shipped
    Today!
    Order within
    00 Hrs
    00 Mins
    00 Secs

Specifications:

Voltage:  12/24 VDC
Current Draw:  CX-90 Series: 360 mA @ 12 VDC
180 mA @ 24 VDC
CX-91 Series: 500 mA @ 12 VDC
250 mA @ 24 VDC
Temp Range:  5°F to 122°F (-15°C to 50°C)
Contact Rating:  TDS versions
Bond Sensor: 1 A @ 30 VDC
Door Status Switch: 0.5 A @ 30V AC/DC
Time Delay:  TLS versions: 0 to 30 Seconds
Dimensions:
CX-91S-06: 4.25"L x 11.5"W x 2"H
(107.95mm x 292.1mm x 50.8mm)



Spec Sheets

  • CX-Series Mag Locks_Spec Sheet_R2 pdf 0.52 DOWNLOAD

Reference Guides

  • Guide To Code Compliant Installation of Magnetic Locks pdf 0.77 DOWNLOAD
  • Magnetic Lock Cross Reference pdf 0.14 DOWNLOAD

Manuals

  • CX-91S and 92S-06_Manual_R2 pdf 0.38 DOWNLOAD
  • CX-91S-06_Mounting Template pdf 0.13 DOWNLOAD
  • CX-91S and 92S-12_Manual_R2 pdf 0.38 DOWNLOAD
  • CX-91S-12_Mounting Template pdf 0.05 DOWNLOAD
  • CX-91M-06_Manual pdf 0.59 DOWNLOAD
  • CX-90S-03_Manual_R1 pdf 0.37 DOWNLOAD
  • CX-90M-03_Manual_R1 pdf 0.53 DOWNLOAD

CMD-CX-91S-06V2
Item number: XXXX

Camden CX-91 Series single door magnetic locks offer the best performance and value.

  • 600 and 1,200 Lb. single door models are UL and CUL listed
  • Weather and vandal resistant construction proven over thousands of installations
  • Surface and mortise mount models
  • Compatible with all access/egress systems
  • Field selectable 12/24 VDC operation
  • Onboard MOV power surge protection prevents damage to mag lock
  • A wide range of mounting brackets and spacers available
  • Lifetime warranty

Specifications:

Voltage:  12/24 VDC
Current Draw:  CX-90 Series: 360 mA @ 12 VDC
180 mA @ 24 VDC
CX-91 Series: 500 mA @ 12 VDC
250 mA @ 24 VDC
Temp Range:  5°F to 122°F (-15°C to 50°C)
Contact Rating:  TDS versions
Bond Sensor: 1 A @ 30 VDC
Door Status Switch: 0.5 A @ 30V AC/DC
Time Delay:  TLS versions: 0 to 30 Seconds
Dimensions:
CX-91S-06: 4.25"L x 11.5"W x 2"H
(107.95mm x 292.1mm x 50.8mm)



Spec Sheets

  • CX-Series Mag Locks_Spec Sheet_R2 pdf 0.52 DOWNLOAD

Reference Guides

  • Guide To Code Compliant Installation of Magnetic Locks pdf 0.77 DOWNLOAD
  • Magnetic Lock Cross Reference pdf 0.14 DOWNLOAD

Manuals

  • CX-91S and 92S-06_Manual_R2 pdf 0.38 DOWNLOAD
  • CX-91S-06_Mounting Template pdf 0.13 DOWNLOAD
  • CX-91S and 92S-12_Manual_R2 pdf 0.38 DOWNLOAD
  • CX-91S-12_Mounting Template pdf 0.05 DOWNLOAD
  • CX-91M-06_Manual pdf 0.59 DOWNLOAD
  • CX-90S-03_Manual_R1 pdf 0.37 DOWNLOAD
  • CX-90M-03_Manual_R1 pdf 0.53 DOWNLOAD
