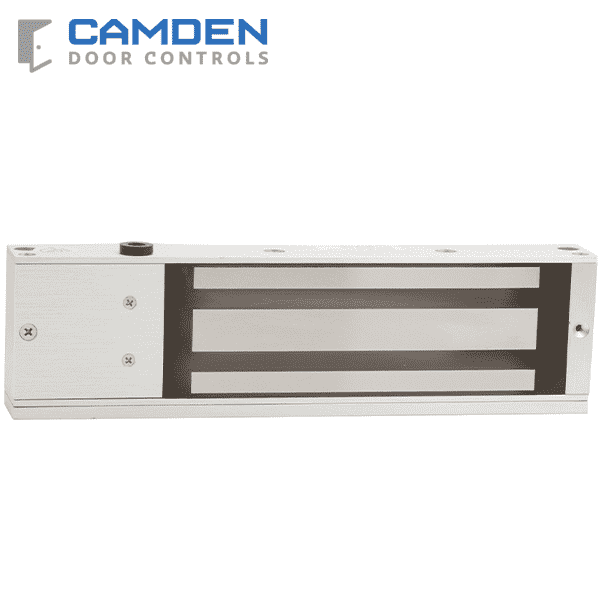

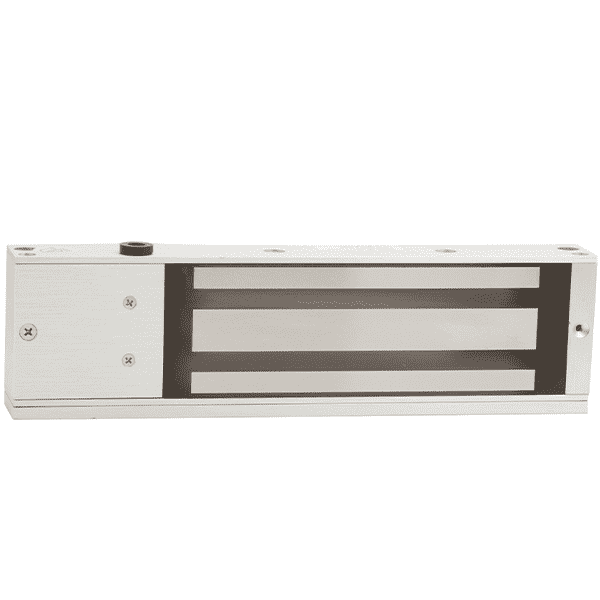

Camden CX-91S-12 - Single Door Surface Mount Mag Lock - 1200 lb Holding Force - 12/24 VDC - UL/ULC Listed

Available to Order
SKU: CMD-CX-91S-12
NSID: 1344

Please Note: This product ships within 1 week

$116.00
$190.00
$116.00
Camden CX-90 and CX-91 Series single door magnetic locks offer the best performance and value. There is a range of 300, 600 and 1,200 Lb. models with the option of a built-in 'TDS' module that provide an adjustable timer, lock sensor, door status switch, relay and LED. This Mag Lock has 1200 Lb Holding Force, Basic model
  • 600 and 1,200 Lb. single door models are UL and CUL listed
  • Weather and vandal resistant construction proven over thousands of installations
  • Surface and mortise mount models
  • Compatible with all access/egress systems
  • Field selectable 12/24 VDC operation
  • On board MOV power surge protection prevents damage to mag lock
  • A wide range of mounting brackets and spacers available
  • Lifetime warranty
Call 1-800-878-6604 for Bulk / Dealer Pricing!

Specifications:

Voltage: 12/24 VDC
Current Draw: CX-90 Series: 360 mA @ 12 VDC
180 mA @ 24 VDC
CX-91 Series: 500 mA @ 12 VDC
250 mA @ 24 VDC
Temp Range: 5°F to 122°F (-15°C to 50°C)
Contact Rating: TDS versions
Bond Sensor: 1 A @ 30 VDC
Door Status Switch: 0.5 A @ 30V AC/DC
Time Delay: TLS versions: 0 to 30 Seconds
Dimensions: CX-90S-03: 6-1/2" x 1-3/8" x 13/16"
(165mm x 35mm x 21mm)
CX-90M-03: 8" x 1-3/8" x 13/16"
(203mm x 35mm x 21mm)
CX-91S-06: 9-7/8" x 1-7/8" x 1"
(251mm x 48mm x 25mm)
CX-91M-06: 9" x 1-1/2" x 1-1/8"
(229mm x 38mm x 29mm)
CX-91S-12: 10-1/2" x 2-7/8" x 1-7/8"
(267mm x 73mm x 48mm)
Armature Plate:
300 Lbs.: 5-1/8" x 1-1/4" x 1/4"
(130mm x 32mm x 6mm)
600 Lbs.: 7-15/16" x 2-3/16" x 5/8"
(202mm x 56mm x 16mm)
1200 Lbs.: 7-15/16" x 3" x 5/8"
(202mm x 76mm x 16mm)
