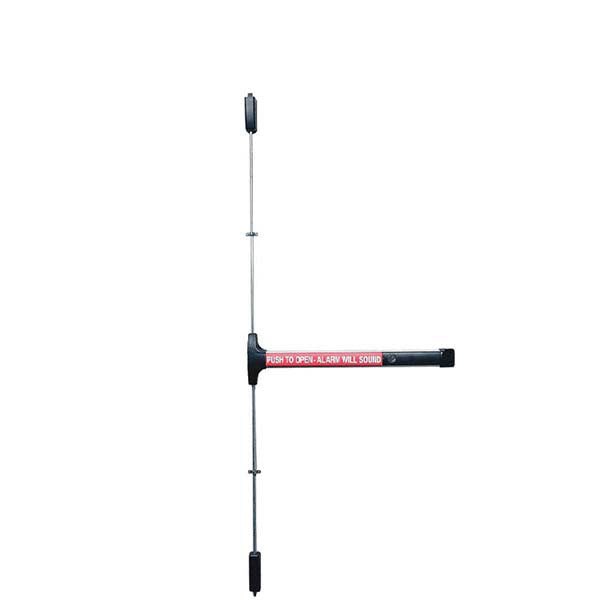

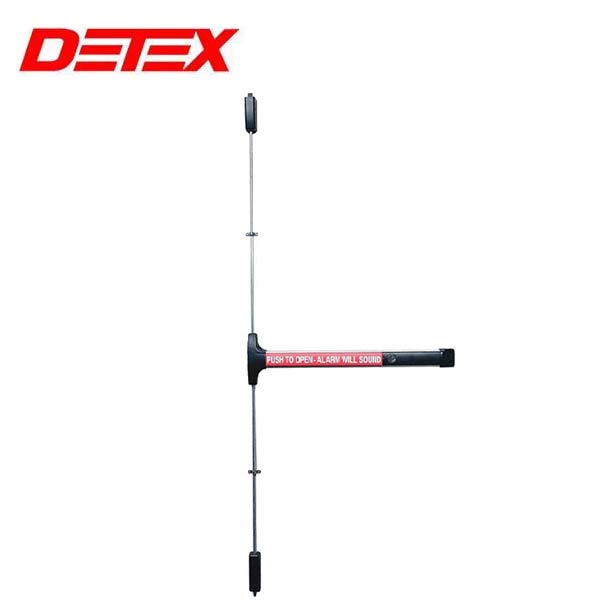

Detex - V50-EB - Surface Vertical Rod Exit Alarm - Narrow Stile - 9V - Satin Aluminum
In Stock
SKU:
DTX-V50-EB-CD-628-96-36X84
NSID:
7617
Get it shipped ! Order within:
Get it shipped ! Order within:
Get an Extra Hour with
- $698.91
-
$730.90 - $698.91
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
The V50 Surface Vertical Rod device is a heavy-duty panic and fire exit hardware at an economical price designed for use on all types of single and double doors without a mullion. The patented mounting plate and strike locator system ensures the easiest and most accurate installation of panic hardware available. Secure and durable panic and fire exit hardware at an economical price.
Features
- Priced to be the best value for durable, attractive panic hardware
- Reduces employee and customer theft
- Patented mounting plate and strike locator replaces paper templates
- Durable design provides years of trouble-free protection, saving on replacement costs
- Fast and easy installation saves time and money
- Angled end cap deflects damage away from device
- Fits any door in almost any décor
- Controls foot traffic, deters unauthorized exits, prevents loss and meets building code requirements
- Powered by standard 9-volt battery
- Armed and disarmed field selectable status indicator
- 100 decibel alarm
- Visual and audible arming indicators
- Field selectable key rearm or 2 min. auto rearm
Specifications
| Door Width | 36" |
| Door Height | 84" |
| Door Thickness | 1-3/4" - 2-1/4" |
| Door Stile | 2-1/2″ stile doors with 98 semi-mortise strike Standard doors with 99 strike |
| Top Latch | 3/4" deadlocking |
| Bottom Drop Bolt | 5/8" dia. x 5-5/8" long secures into strike plate |
| Handing | Non- Handed |
| Strike | Top Surface - non-roller top strike for V50/51 Series Surface Vertical Rod Devices |
| Push Bar | 3-14" Extended, 2-1/2 Depressed |
| Power | 9 Volt Battery |
| Dogging | Single mortise 1-1/8″ cylinder (sold separately) provides arming and dogging – 1/8 turn cylinder dogging |
| Bolt | 3/4" Deadlocking Pullman-type latch bolt |
| Alarm | 100+ Decibels |
| Rearming | Selectable: key rearm or 2 minute automatic rearm |
| Finish | 628 (Satin Aluminum) |
| Fire Rated | 3 Hours |
| Warranty | 10 Year Mechanical 3 Year Electrical |
Installation:
Downloads:
