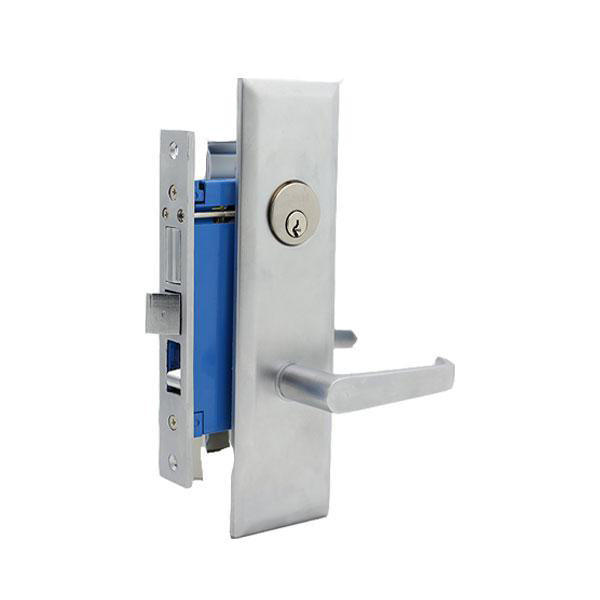

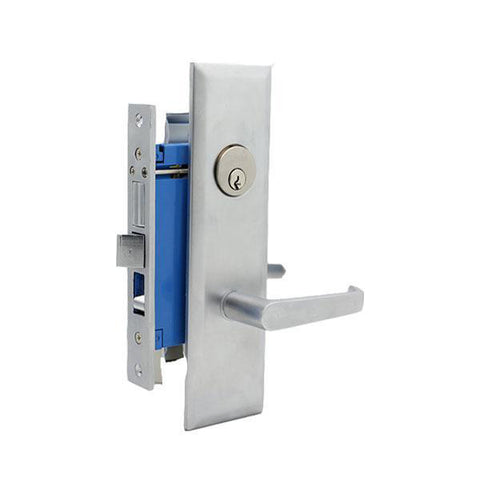

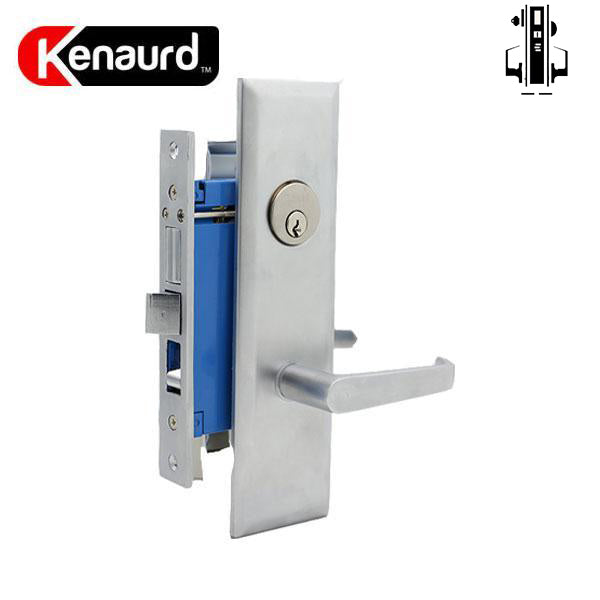

Heavy Duty Mortise Lockset w/ Lever - 2-1/2" Backset - 26D - Satin Chrome - RH
Heavy Duty Mortise Lockset w/ Lever - 2-1/2" Backset - 26D - Satin Chrome - RH
Heavy Duty Mortise Lockset w/ Lever - 2-1/2" Backset - 26D - Satin Chrome - RH
Heavy Duty Mortise Lockset w/ Lever - 2-1/2" Backset - 26D - Satin Chrome - RH
Heavy Duty Mortise Lockset w/ Lever - 2-1/2" Backset - 26D - Satin Chrome - RH

Heavy Duty Mortise Lockset w/ Lever - 2-1/2" Backset - 26D - Satin Chrome - RH

$43.40 $49.90
Availability: Out of Stock
  • Product SKU: KMLWL01-SS-SC1-RH
  • NSID: 3307
  • KMLWL01-SS-SC1-RH

    • Single Mortise Entry Lever Lockset
    • Solid Brass Mortise Cylinder
    • Heavy-Duty Locking System
    • SC1 Cylinder w/ 2 Brass Keys
    • Backset: 2-1/2" Backset
    • Keyed Alike up to 10 / KA10
    • Limited Lifetime Warranty

    $43.40
Function: Entrance - ANSI F08, F10 Latch by lever either side except when outside locked by stop button; then by key outside, a lever inside. Deadbolt by key outside, turn piece inside. Deadbolt deadlocks latch
Thru Bolts: Thru-bolted lever/plate assemblies integrate and align with the lock body
Finish: 26D Satin Chrome
Handing: Right Handed
Exterior: Wrought brass lever on a steel-reinforced brass plate, 10" x 3". Two-thru posts pass-thru lock body. Integral spring-loaded 9/32" spindle.
Interior: Wrought brass lever on steel reinforced brass plate, 7-1/8" x 2-3/8". Exposed 8-32 mounting. Bolts engage outside plate assembly. Integral spring loaded 9/32" spindle.
Cylinder: 5-pin SC1 Mortise Cylinder 1-1/8" long
Door Thickness: 1-1/4" to 1-3/4"
Backset: 2-1/2"
Deadbolt: Cast Brass 1" throw
Latch: Solid Brass 1/2" reversible
Rocker Switch: Locks or unlocks hub
Case: High-pressure cast Zamac baked enamel finish
