Ilco - ENGRAVE-IT PRO XL - Extra-Large Electronic Engraving Marking System for Keys / Cylinders / IC Cores / ID Tags & More
Available to Order
SKU:
ILCO-IBA0388XXXX
NSID:
75481
- $13,300.00
-
$15,960.00 - $13,300.00
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per

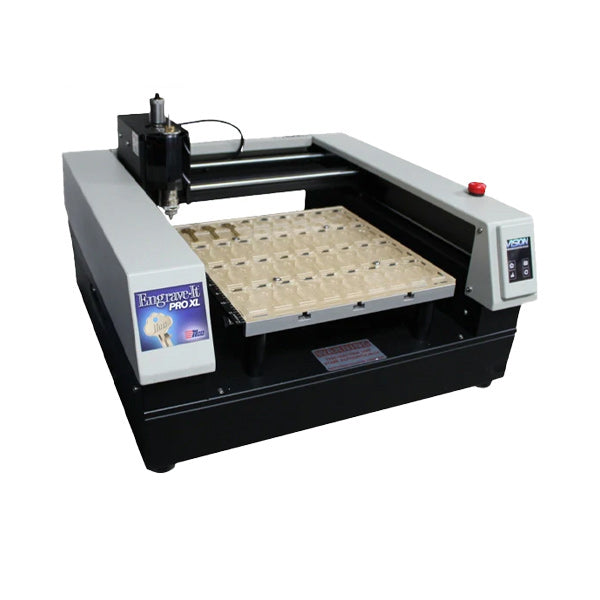

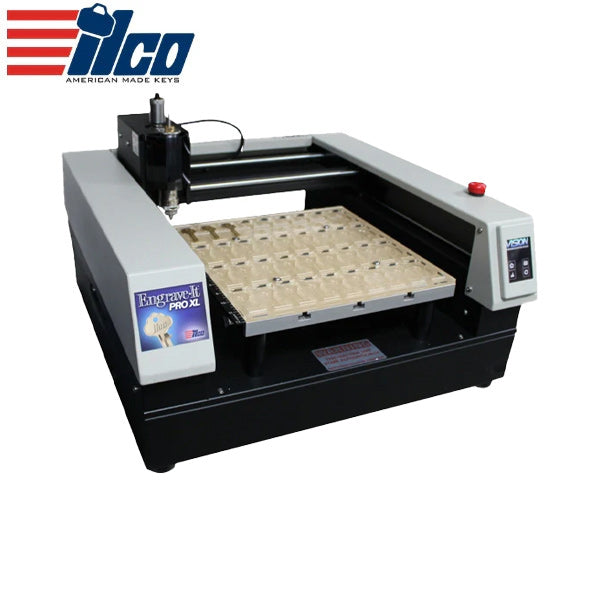

The Engrave-it™ Pro XL is the perfect extra-large engraver for engraving keys, lock cylinders, padlocks, ID plates/tags, and much more! The engrave-it™ Pro XL is a simple to operate engraving solution that provides coverage of a broad range items in both the lock shop and institutional environment. This machine provides the maximum capacity needed for marking keys, lock cylinders (including IC), padlocks, ID plates/tags, laminated plates/tags, and much more!
The Engrave-it™ Pro XL is powered by robust engraving software (utilizing a customer-supplied PC), allowing operators to swiftly select from a menu of common tasks or create custom settings. Engraving can be achieved using either a diamond drag or rotary-style cutter.
Please Note: NO TRAYS OR CLAMPS ARE INCLUDED BUT ARE AVAILABLE SEPARATELY. THE TRAYS FROM PREVIOUS ENGRAVE-IT MODELS DO NOT FIT THE PRO XL.
Features:
- Capable of "fine" engraving for presentation plaques, etc.
- Custom lettering for marking keys, popular lock cylinders, etc.
- New V-touch multi-functional touch screen
- Red laser pointer for easy job set-up
- Sequential numbering
- Variety of fonts and marking styles
- Vision Pro 10 "Expert" software package
Technical Specifications:
| Software | Vision PRO 10 "Expert" Software Package |
| MAX. Work area | 12x12 inches |
| Maximum Work Piece Size | 17.5 inches (L) X any Width x 3 inches (H) |
| Z-Axis Clearance | 1.25 inch (31.75 mm) |
| Z-Axis Stroke | 1-inch standard (1.7- inch w/riser kit) |
| Table Resolution | 0.0002 inches |
| Spindle Type | 11/64 inches, 6mm, or 1/4 inch/Top loading, Collect Spindle Available |
| Table Type | Removable Aluminum T-slot |
| Interface | Ethernet |
| Warranty | 2-year limited |
| Power requirements | 110/220v 2 amp |
| Physical Dimensions | 21.5 inches (W) x 24 inches (D) x 11 inches (H) -75 lbs |
| Shipping Dimensions | 25 inches (W) x 30 inches (D) x 19 inches (H) - 85 lbs. Ground, 87 lbs Air |
| Part Number | IBA0388XXXX |
Computer Specifications:
| PC Required | A customer supplied PC is required to operate the Engrave IT™ Pro XL |
| Min. System Requirements | Single Core 2 GHz CPU, 5GB Hard Drive, 1 GB Ram |
| Recommended Operating System | Windows 7 or higher (32 bit or 64 bit) operating system, Recommended system |
| Recommended System Requirements | Dual Core 2.0 GHz (or faster), 40 GB Hard Drive, 2 GB RAM |
Downloads:
Ilco Key Cutting and Programming Machines are made for use in the North Amercian (U.S.A., Canada, Caribbean Islands) and Carribean Regions (Mexico, Guatemala, Belize, El Salvador, Honduras, Nicaragua, Costa Rica, Panama ). They are not intended to be used outside these regions and some models may have region locks on certain software functions and hardware may not be compatible with regional infrastructure. If you intend to purchase this for use outside of the specified regions you do so at your own risk. The manufacturer will refuse the warranty claims and may refuse software support if it is determined being used outside of the designated region. UHS Hardware has the right to refuse sale of this product outside its designated region
