Lockly Pro - PGD228WSWSS - GUARD - Swing Edition - Narrow Stile - 1 3/8" Backset - Athena Biometric Electronic Double Hook Mortise Lever Set - RFID - Fingerprint Reader - Wi-Fi - Bluetooth - Stainless Steel
Available to Order
SKU:
LCK-PGD228WSWSS-138
NSID:
31964
- $619.99
-
$743.99 - $619.99
- Unit price
- per
PGH230 Wifi Hub - Included
Built-In Optional Wired Sensor - Included

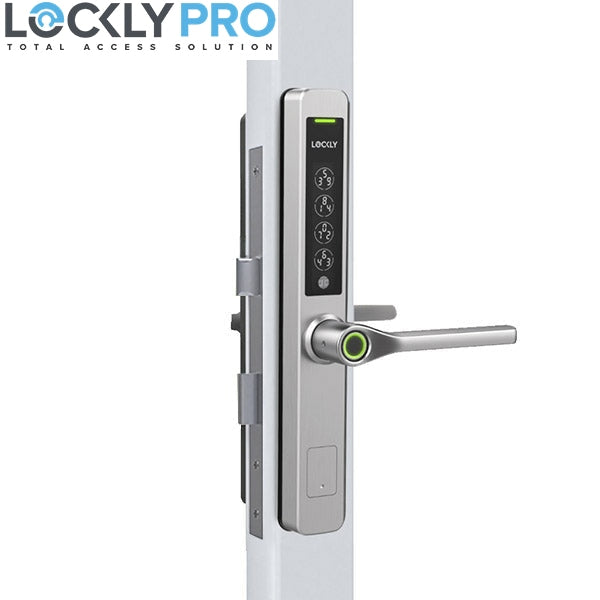

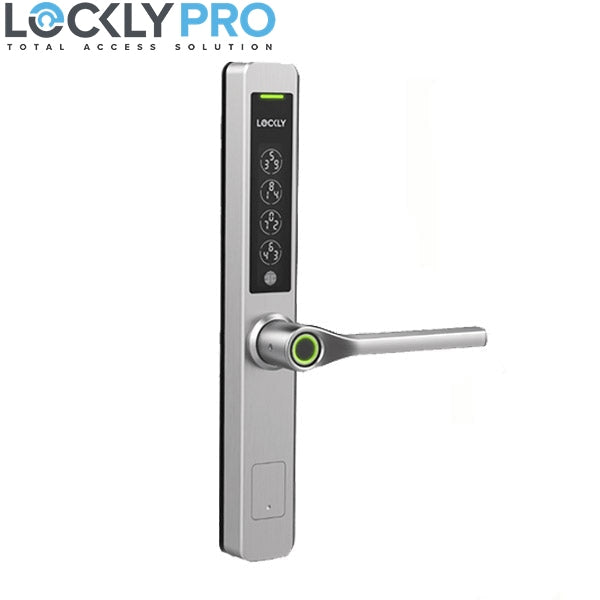

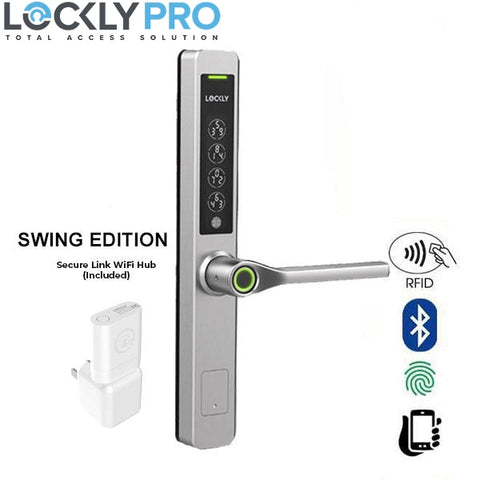

LOCKLY GUARD™ Athena (228SW) Swing Edition - Access for thin framed swing-style doors. Provides main entrance lever access and security for thin framed metal, aluminum or wooden swinging doors.
Features:
- Hack-proof PIN Genie® digital touchscreen
- 3D biometric fingerprint sensor access - Stores up to 99 fingerprints
- IPX4 rated for water protection
- Issue Offline Access Codes™ that do not require users to download an app or have WiFi or Internet connection to use
- Fast Pass MIFARE RFID access
- eKeys - Grant one-time use or specific time duration access by issuing codes or digital eKeys via a mobile access
- Grant access, even when you’re not home - Remotely lock and unlock your door from anywhere using the Lockly app
- Works with Lockly app & Lockly\OS ™
- $619.99
-
$743.99 - $619.99
- Unit price
- per
Specifications
| Access Codes | Stores up to 52 PIN access codes |
| RFID/Fob key Access | Stores up to 999ᵒˢ MIFARE RFID/fob |
| Fingerprint Access | Stores up to 99 biometric fingerprints |
| Remotely Shareable Temporary Access |
Unlimitedᵒˢ Offline Access Codes/ eBadgesᵒˢ |
| Access Logs | Unlimited ᵒˢ Accessibie via LocklyPro Commercial app or Lockly\OSTM |
| Visual and audible | Exterior: LED (Red, Green) Interior: LED (Blue) Configurable Lock/Unlock Audio Indicator |
| Communication standards | BLE 4.2 , Wi-Fi 2.4GHz , RF433.92MHz Advanced Encryption Standard (AES), 256-bit |
| Command Response | Responds to command from host in less than 3 seconds when linked to Lockly Wi-Fi Hub 0.2S on Fingerprint Recognition |
| Connectivity options | LocklyPro Commercial app, Lockly\OS ALL in real-time communication |
| Battery Life | AA Alkaline Batteries x 4 Up to 1 year (offline mode) up to 9 months (regular use with App & Sensor |
| Operating temperature | -4°F to 151°F (-20°C to 66°C) |
| Operating Humidity | 0 - 100% non-condensing |
| Standards | ISO 14443 |
| Maximum read range |
RFID: up to 0.79" BLE: up to 98’ (30m) Wi-Fi: up to 197' (60m) |
| RFID/Fob compatibility | MIFARE® S50 |
| Mobile compatibility | LocklyPro Commercial app BLE 4.2 Lockly\OSTM |
Mechanical Specifications
| Handing | Field reversible |
| Materials | Stainless Steel chassis and escutcheon |
| Door Thickness | 1⅜ " - 2 9/16 " (35mm - 65mm) |
| Swing Backset Slide Backset | 1⅛” (30mm), 1 ⅜ ” (35mm), 2⅜ ”(60mm) 1⅛” (28mm), 1⅜” (35mm) |
| Deadbolt/Latch Hook Bolt |
¾″ (20mm) Deadbolt Throw ½” (13mm) Latch Throw ⅔” (17mm) Hook Throw |
| Door frame width | 2" - 3" (50.8mm - 76.2mm) |
| Physical Keys | Laser cut keys compatible,2pcs included |
Includes the Following:
-
Lockly Guard Swing Edition smart lock
-
Mortise Assembly
-
Secure Link Wifi hub
-
Wired Door Sensor
-
MIFARE RFID Cards x 3
-
Laser Cut Keys x 2
-
Installation Screws
-
Strike Plate
-
Strike Plate Housing
-
Back Plate
-
AA Alkaline Batteries x 4
-
Quick Start Guide
-
Installation and User Manuals
Downloads
- Lockly Smart Phone App -- iPhone Here / Android Here
- User Manual
- Installation Manual
- Spec Sheet
For Easy Installation for any Lockly products - Download the BILT App - BILT has created a full how-to install graphical instructions for a streamlined, simple installation experience. Available on App Store and Google Play, which offers 3D video step-by-step instructions for assembly. Just search for the BILT app and then select the LOCKLY product you want to install.
