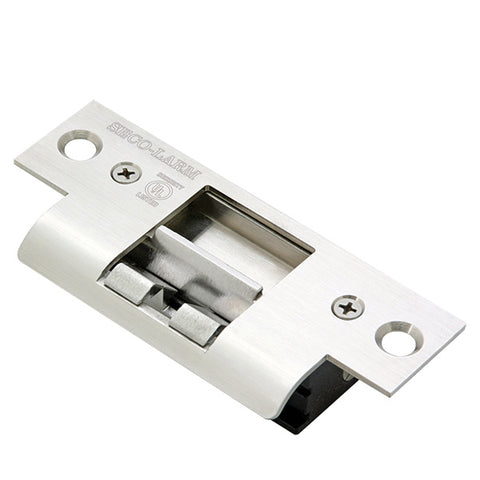

Seco-Larm - No Cut Door Strike - Metal Doors - Fail-safe / Fail-secure - 12/24VDC - UL Listed
In Stock
SKU:
SLM-SD-995C-D3Q
NSID:
74315
Get it shipped ! Order within:
Get it shipped ! Order within:
Get an Extra Hour with
- $119.48
-
$115.20 - $119.48
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
The Seco-Larm No Cut Door Strike can be used to convert cylindrical lock sets into an electronic access-controlled locking system. Combine with an optional Seco-Larm Digital Keypad for keyless high security.
Features:
- Low Profile: Strike is only 1-1/16" deep for use with aluminum frames
- Field-Selectable for fail-safe or fail-secure operation
- Mounting tabs included for mounting to hollow aluminum & metal doors
- Reversible non-handed design fits either right-hand or left-hand doors
- For indoor use only
- Static Strength - 1,500 lbs. (6673N)
- Dynamic Strength - 70ft-lbs. (95J)
- 12/24 VDC operating voltage
- Tested to 100,000 cycles (UL Tested), tested to 1,000,000 cycles (Factory Tested)
- Low current draw: 300mA@12VDC, 150mA@24VDC
- No horizontal or vertical adjustment
Specifications:
| Operating Voltage | 12/24 VDC |
| Current Draw 12 VDC | 300mA |
| Current Draw 24 VDC | 150mA |
| Latch Throw | 9/16" (15mm) |
| Keeper Width | 1-7/16" (36mm) |
| Static Strength | 1,500 lbs (6673N) |
| Dynamic Strength | 70ft-lbs (95J) |
| Endurance | 100,000 cycles (UL Tested), 1,000,000 cycles (Factory Tested) |
| Operating Temperature | 32°~120° F (0°~49° C) |
| Operating Humidity | 0-85% |
| Dimensions | 4-7/8" x 1-1/4" x 1-1/16" (124x32x27.5 mm) |
