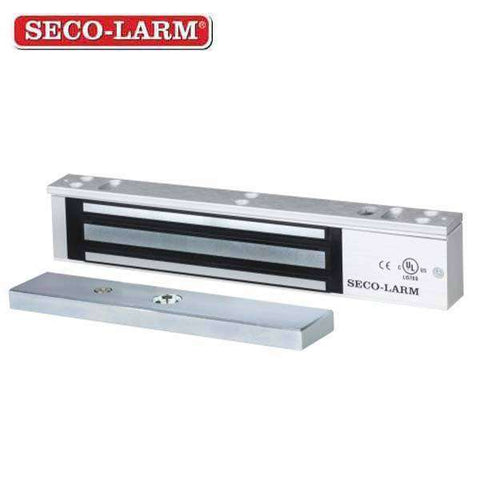

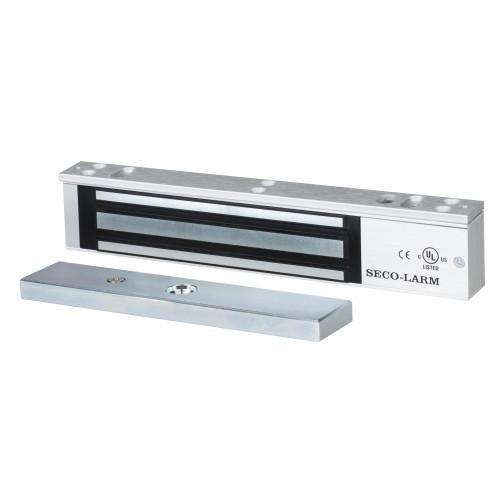

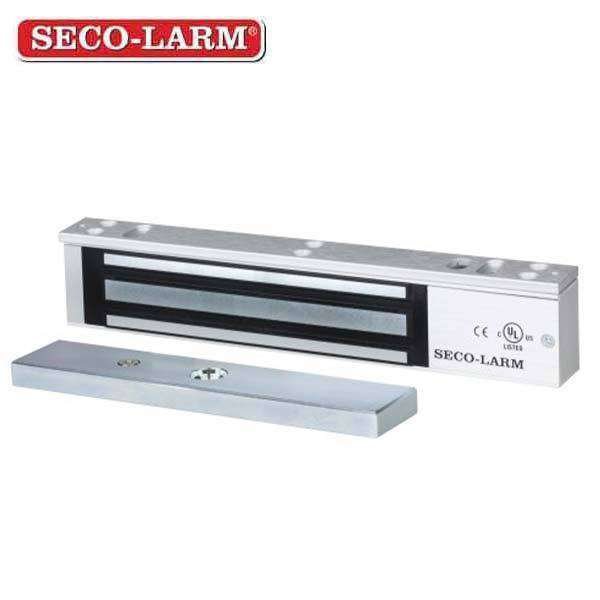

Seco-Larm - Single Door - Maglock - 600 lb Holding Force - Bond Sensor - Status LED w/ Mounting Accessories - CE listed
In Stock
SKU:
SLM-E-941SA-600PQ
NSID:
6786
Get it shipped ! Order within:
Get it shipped ! Order within:
Get an Extra Hour with
- $108.30
-
$132.00 - $108.30
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
SLM-E-941SA-600PQ
- Anodized aluminum housing (US 28)
- 12 or 24 VDC (selectable)
- No residual magnetism
- Adjustable mounting bracket
- MOV surge protection
-
Complete mounting hardware for
typical installations - Detachable face plate
- UL and ULC listed
- CE listed
- RoHS compliant
- Bond sensor output: 3A@12VDC
-
Built-in dual-color status LED and bond sensor to show locking status:
- Green - Door is closed and locked
- Red - Door not closed and/or locked
- Off - Door in use / no power
| Holding Force | 600-lb (272kg) |
| Operating Voltage | 12 or 24 VDC±10% |
| Current Draw | 500mA@12VDC, 250mA@24VDC |
| Operating Temperature | 14º ~ 131º F (-10º ~ 55º C) |
| Electromagnet Dimensions | 9-7/8"x1"x1-5/8" (250x26x40 mm) |
| Armature Dimensions | 7-1/4"x1/2"x1-1/2" (185x12x38 mm) |
| Case Shipping Weight | 47-lb (22kg) |
| Weight | 4-lb 6-oz (2kg) |
| Case Quantity | 10 pcs |
| Bond Sensor | Yes |
| Status LED | Yes |
