TownSteel - CDCI-109-S - Commercial Lever Handle - IC Core (SFIC) - Clutch Lever - 2-3/4 " Backset - Satin Chrome - Entrance / Office - Grade 1
TownSteel - CDCI-109-S - Commercial Lever Handle  - IC Core (SFIC) -  Clutch Lever  - 2-3/4 " Backset - Satin Chrome - Entrance / Office -  Grade 1
TownSteel - CDCI-109-S - Commercial Lever Handle  - IC Core (SFIC) -  Clutch Lever  - 2-3/4 " Backset - Satin Chrome - Entrance / Office -  Grade 1
TownSteel - CDCI-109-S - Commercial Lever Handle  - IC Core (SFIC) -  Clutch Lever  - 2-3/4 " Backset - Satin Chrome - Entrance / Office -  Grade 1
TownSteel - CDCI-109-S - Commercial Lever Handle  - IC Core (SFIC) -  Clutch Lever  - 2-3/4 " Backset - Satin Chrome - Entrance / Office -  Grade 1
TownSteel - CDCI-109-S - Commercial Lever Handle  - IC Core (SFIC) -  Clutch Lever  - 2-3/4 " Backset - Satin Chrome - Entrance / Office -  Grade 1
TownSteel - CDCI-109-S - Commercial Lever Handle  - IC Core (SFIC) -  Clutch Lever  - 2-3/4 " Backset - Satin Chrome - Entrance / Office -  Grade 1

TownSteel - CDCI-109-S - Commercial Lever Handle - IC Core (SFIC) - Clutch Lever - 2-3/4 " Backset - Satin Chrome - Entrance / Office - Grade 1

$84.84 $202.00
Available: In Stock
Wishlist
  • Product SKU: TNS-CDCI-109-S-26D
  • TNS-CDCI-109-S-26D
    Item Number: 6440

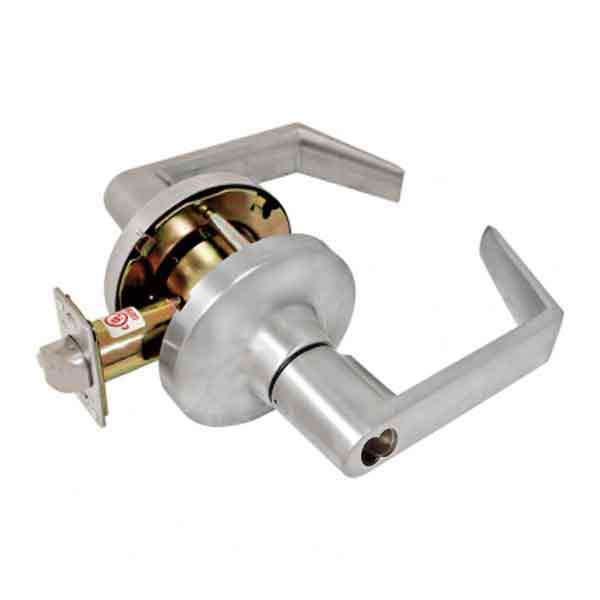

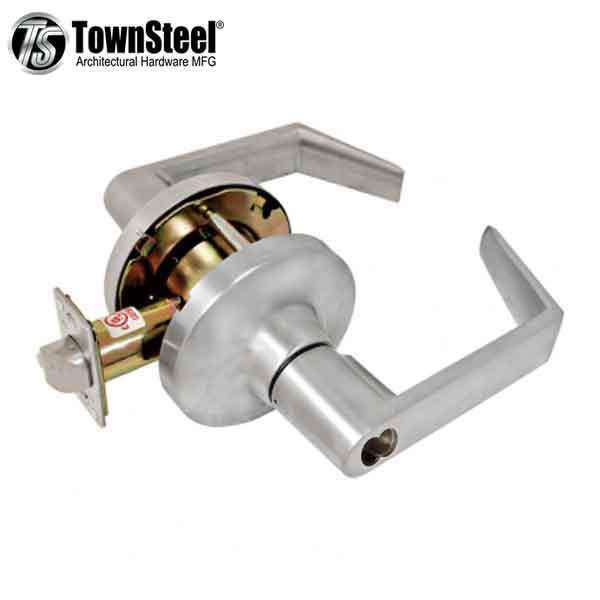

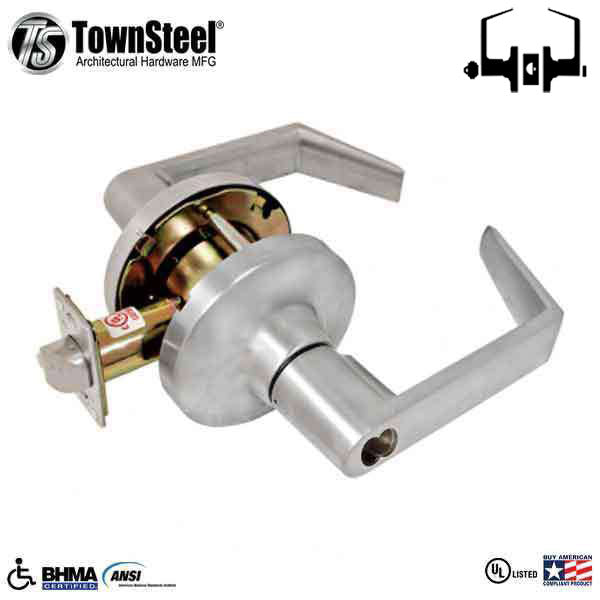

    The CDCI109S  Series Cylindrical Lockset is ANSI/BHMA A156.2-2011 Grade 1 certified and UL 10C 3-Hour rated Clutched lever trim.  Independent torsion spring design provides effective lever support. Most BHMA functions are available. Easy installation

    More Information Below

    $84.84

Specifications

Lock Function  ANSI F109 Entrance Office
Handling Non-Handed
Door Thickness 1-3/8″-2″
Backset 2-3/4″ standard,
Faceplate
Stainless Steel, 1-1/8″ x 2-1/4″
Latch Bolt
Stainless steel, 1/2″ throw, deadlocking on keyed functions
Strike
ASA, 1-1/4″ x 4-7/8″ x 1-5/16″ standard
Cylinder
Small format IC , 6 or 7-pin, Best “A” keyway (Core sold separately)
Keying
Keyed different - KD (standard)
Trim Style Sentinel(S)
Finish  626 - 26D - Satin Chrome
Certifications
ANSI/BHMA - A156.2-2011 4000 Series Grade 1 Certified
UL - UL 10C 3-Hour Rated
ADA - Meet Requirements of The Americans with Disabilities Act
BAA - Meet Guidelines of The Buy American Act
CSFH - Sentinel and Quest Lever Designs meet California State Reference Code (CSFH)
Manufacturer Warranty 1-year limited for electronic
5-year limited for finish
10-year limited for mechanical
