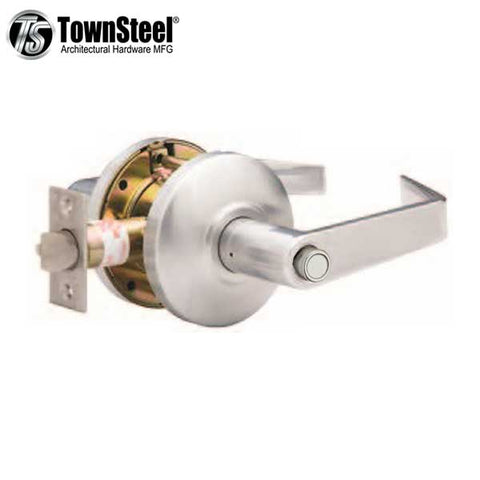

TownSteel - CSRC-76-S - Commercial Lever Set Handle - Clutch Lever Set - Conical Rose -2-3/4 " Backset - Satin Chrome - Privacy - Grade 2
The CSRC76S Series cylindrical lockset is heavy duty grade 2, and UL 10C 3-hour rated. It offers flat rose featuring clutched lever trims.
More Information Below
Specifications
Lock Function | ANSI F76 Privacy |
Handing | Non-Handed |
Door Thickness |
1-3/8″-2″ |
Backset | 2-3/4″ standard, |
Faceplate |
Stainless Steel, 1-1/8″ x 2-1/4″ |
Latch Bolt |
Stainless steel, 1/2″ throw, deadlocking on keyed functions |
Strike |
ASA, 1-1/4″ x 4-7/8″ x 1-5/16″ standard |
Rose Design | Conical Type 3-3/8" in diamter |
Trim Style | Sentinel(S) |
Finish | 626 - 26D - Satin Chrome |
Certifications |
ANSI/BHMA Meets or exceeds A156.2-2011 4000 Series Grade 2 requirements UL Listed 3-hour fire rating ADA Meet Requirements of The Americans with Disabilities Act BAA Meet Guidelines of The Buy American Act CSFH Sentinel and Quest Lever Designs meet California State Reference Code (CSFH) |
Manufacturer Warranty | 1-year limited for electronic 5-year limited for finish 10-year limited for mechanical |
Lock Function
