TownSteel - CSRC-75-S - Commercial Lever Handle - Clutch Lever - 2-3/4 " Backset - Satin Chrome - Passage - Grade 2
TownSteel - CSRC-75-S - Commercial Lever Handle  - Clutch Lever  - 2-3/4 " Backset - Satin Chrome - Passage  -  Grade 2
TownSteel - CSRC-75-S - Commercial Lever Handle  - Clutch Lever  - 2-3/4 " Backset - Satin Chrome - Passage  -  Grade 2
TownSteel - CSRC-75-S - Commercial Lever Handle  - Clutch Lever  - 2-3/4 " Backset - Satin Chrome - Passage  -  Grade 2
TownSteel - CSRC-75-S - Commercial Lever Handle  - Clutch Lever  - 2-3/4 " Backset - Satin Chrome - Passage  -  Grade 2
TownSteel - CSRC-75-S - Commercial Lever Handle  - Clutch Lever  - 2-3/4 " Backset - Satin Chrome - Passage  -  Grade 2
TownSteel - CSRC-75-S - Commercial Lever Handle  - Clutch Lever  - 2-3/4 " Backset - Satin Chrome - Passage  -  Grade 2

TownSteel - CSRC-75-S - Commercial Lever Handle - Clutch Lever - 2-3/4 " Backset - Satin Chrome - Passage - Grade 2

$42.42 $101.00
Available: In Stock
Wishlist
  • Product SKU: TNS-CSRC-75-S-26D
  • TNS-CSRC-75-S-26D
    Item Number: 6442

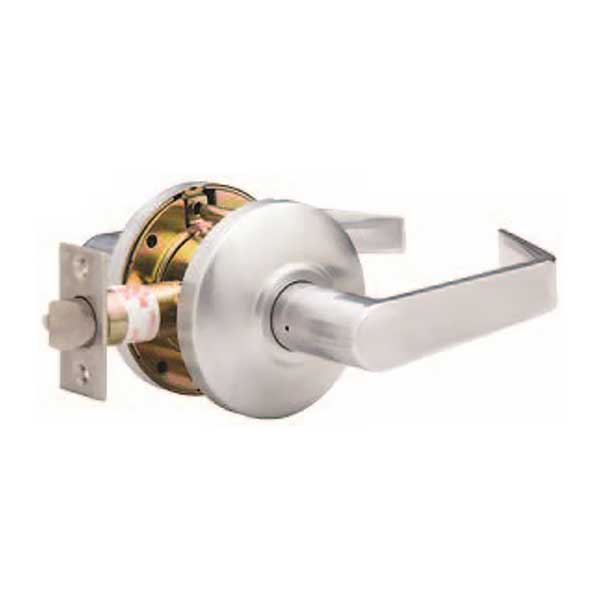

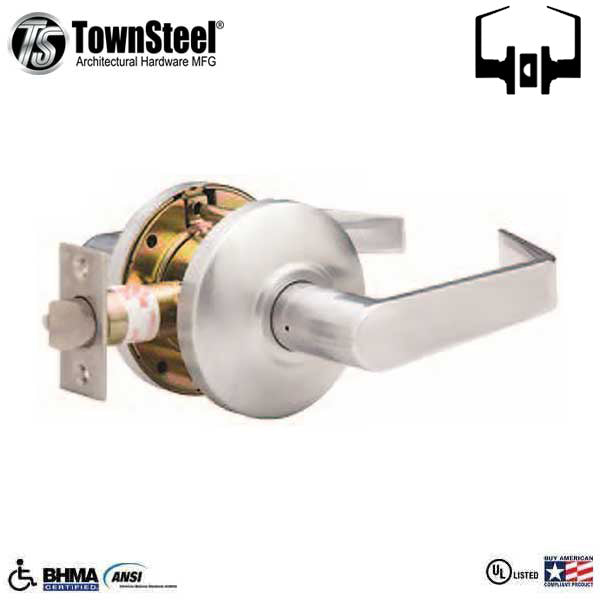

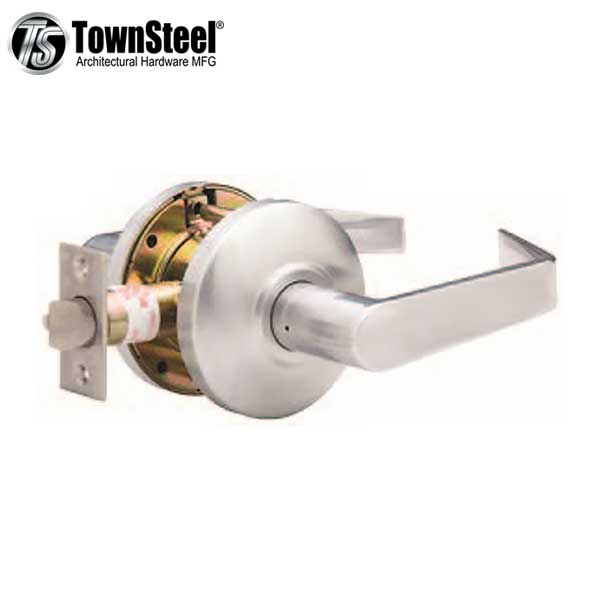

    The CSRC75S  Series sylindrical lockset is heavy duty grade 2, and UL 10C 3-hour rated. It offers flat rose featuring clutched lever trims.

    More Information Below

    $42.42

Specifications

Lock Function  ANSI F75 Passage
Handling Non-Handed
Door Thickness 1-3/8″-2″
Backset 2-3/4″ standard,
Faceplate
1-1/8” x 2-1/4” (28.4mm x 57mm) , square corner
Latch Bolt
Stainless steel with ½” (12.7mm) throw
Strike
ASA, 1-1/4″ x 4-7/8″ x 1-5/16″ standard
Cylinder
6-pin solid brass cylinder, Schlage “C” keyway
Keying
Keyed different - KD (standard)
Trim Style Sentinel(S)
Finish  626 - 26D - Satin Chrome
Certifications
ANSI/BHMA Meets or exceeds all Grade 2 requirements of A156.2-2003
UL Listed 3-hour fire rating
ADA Meet Requirements of The Americans with Disabilities Act
BAA Meet Guidelines of The Buy American Act
Manufacturer Warranty 1-year limited for electronic
5-year limited for finish
10-year limited for mechanical



Lock Function
