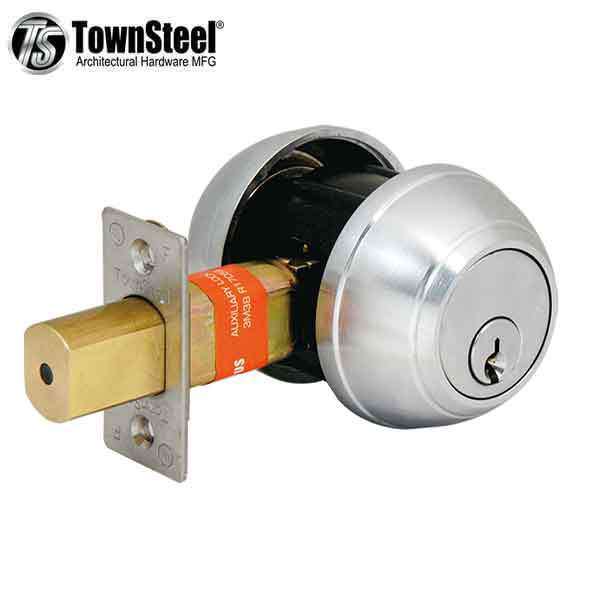

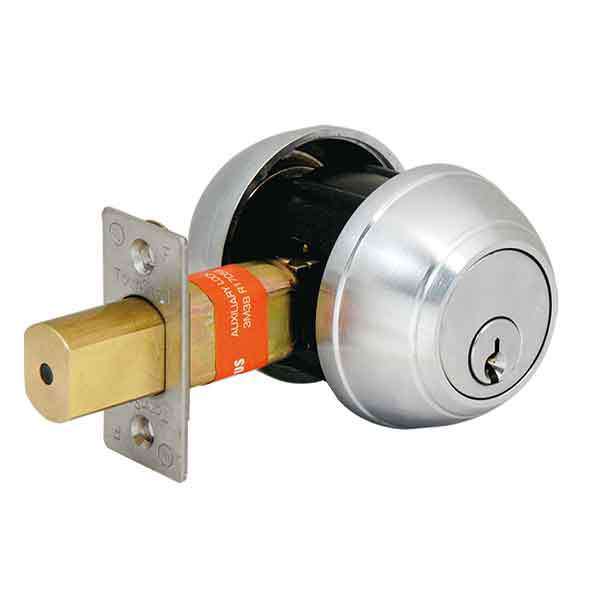

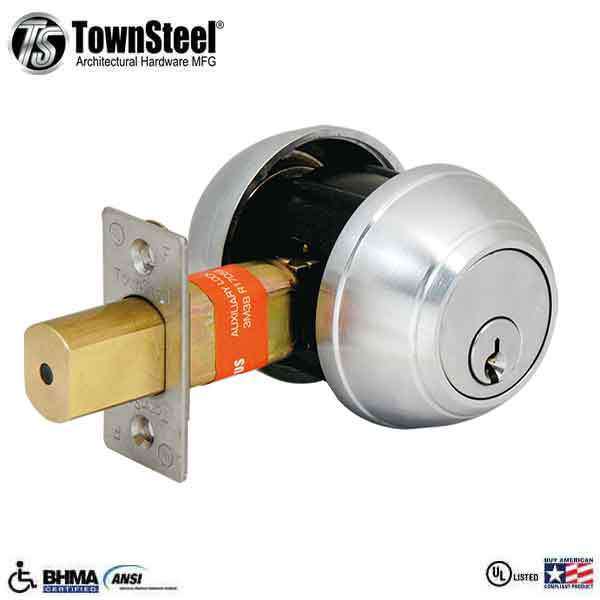

TownSteel - DBD-61 - Commercial Deadbolt - Single Cylinder - 2-3/4 " Backset - Satin Chrome - Grade 1
TownSteel - DBD-61 - Commercial Deadbolt - Single Cylinder - 2-3/4 " Backset - Satin Chrome -  Grade 1
TownSteel - DBD-61 - Commercial Deadbolt - Single Cylinder - 2-3/4 " Backset - Satin Chrome -  Grade 1
TownSteel - DBD-61 - Commercial Deadbolt - Single Cylinder - 2-3/4 " Backset - Satin Chrome -  Grade 1
TownSteel - DBD-61 - Commercial Deadbolt - Single Cylinder - 2-3/4 " Backset - Satin Chrome -  Grade 1
TownSteel - DBD-61 - Commercial Deadbolt - Single Cylinder - 2-3/4 " Backset - Satin Chrome -  Grade 1
TownSteel - DBD-61 - Commercial Deadbolt - Single Cylinder - 2-3/4 " Backset - Satin Chrome -  Grade 1

TownSteel - DBD-61 - Commercial Deadbolt - Single Cylinder - 2-3/4 " Backset - Satin Chrome - Grade 1

$46.62 $111.00
Available: In Stock
Wishlist
  • Product SKU: TNS-DBD-61-26D
  • TNS-DBD-61-26D
    Item Number: 6419

    The DBD-61 is a Grade 1 Heavy Duty Commercial deadbolt. Tamper resistant solid brass one piece housing provides a positive deterrent to forced entry.

    More Information Below

    $46.62

Specifications

Application To use as an auxiliary lock for quality residential and commercial buildings wherever additional security is desired
Door Thickness
1-9/16″ to 2″
Backset 2-3/4″ standard
Deadbolt Solid brass with hardened steel rod insert, 1″ throw
Strike 1-1/8″ x 2-3/4″ lipless
Faceplate 1-1/8″ x 2-1/4″, square corner
Finish US26D
Function Single Cylinder with Thumb Turn
Door Prep
2-1/8″ diameter for lock, 1″ for latch
Handing Non-Handed
Cylinder 6 pin Schlage “C” keyway, pick resistant pin and anti-drill bearing balls inserted
Keying
Keyed different - KD (standard)
Finish  626 - 26D - Satin Chrome
Certifications
ANSI/BHMA - Meets or exceeds A156.5-2001 Grade 1 requirements
UL - UL 10C 3-hour rated
BAA - Meets requirements of the Buy American Act
Manufacturer Warranty 1-year limited for electronic
5-year limited for finish
10-year limited for mechanical
