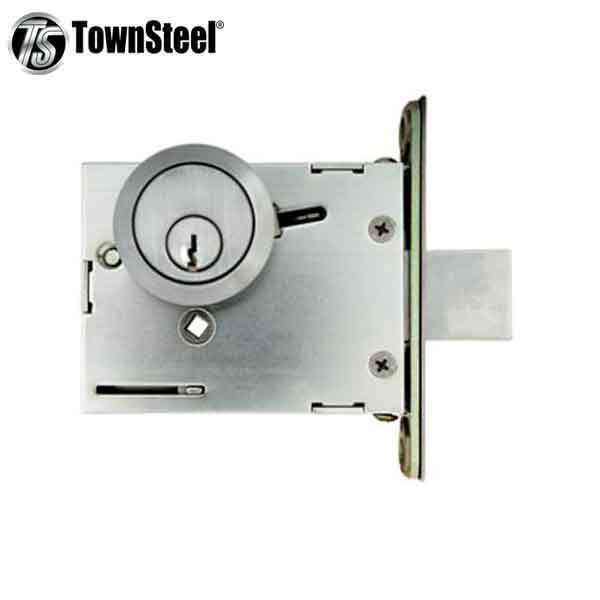

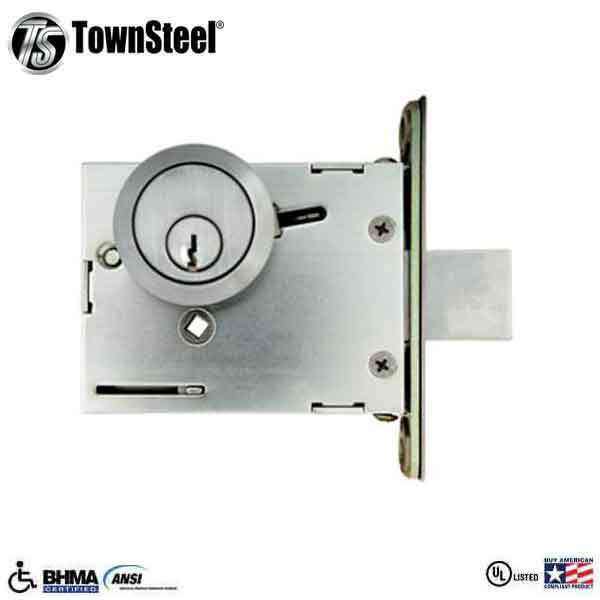

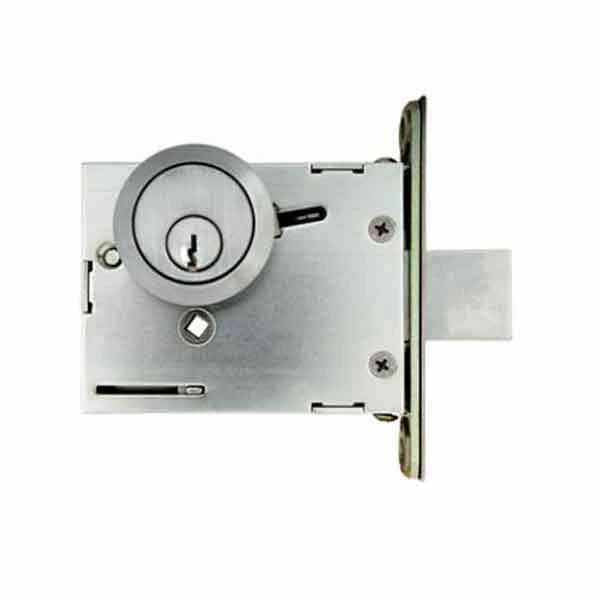

TownSteel - DBM17 - Commercial Mortise Deadbolt - Single Cylinder - 2-3/4 " Backset - Satin Chrome - Grade 1
TownSteel - DBM17 - Commercial Mortise Deadbolt - Single  Cylinder  - 2-3/4 " Backset - Satin Chrome -  Grade 1
TownSteel - DBM17 - Commercial Mortise Deadbolt - Single  Cylinder  - 2-3/4 " Backset - Satin Chrome -  Grade 1
TownSteel - DBM17 - Commercial Mortise Deadbolt - Single  Cylinder  - 2-3/4 " Backset - Satin Chrome -  Grade 1
TownSteel - DBM17 - Commercial Mortise Deadbolt - Single  Cylinder  - 2-3/4 " Backset - Satin Chrome -  Grade 1
TownSteel - DBM17 - Commercial Mortise Deadbolt - Single  Cylinder  - 2-3/4 " Backset - Satin Chrome -  Grade 1
TownSteel - DBM17 - Commercial Mortise Deadbolt - Single  Cylinder  - 2-3/4 " Backset - Satin Chrome -  Grade 1
TownSteel - DBM17 - Commercial Mortise Deadbolt - Single  Cylinder  - 2-3/4 " Backset - Satin Chrome -  Grade 1
TownSteel - DBM17 - Commercial Mortise Deadbolt - Single  Cylinder  - 2-3/4 " Backset - Satin Chrome -  Grade 1

TownSteel - DBM17 - Commercial Mortise Deadbolt - Single Cylinder - 2-3/4 " Backset - Satin Chrome - Grade 1

$79.38 $189.00
Available: In Stock
Wishlist
  • Product SKU: TNS-DBM17-26D
  • TNS-DBM17-26D
    Item Number: 6430

    The DBM-17 is a heavy duty commercial quality deadbolt that provides a positive deterrent to forced entry. Designed for maximum security, the cylinder resists blows attempting to move the lock.

    More Information Below

    $79.38

Specifications

Application To use as an auxiliary lock for quality residential and commercial buildings wherever additional security is desired
Door Thickness
1-3/8”- 2”
Backset 2-3/4″ standard
Deadbolt Solid brass with hardened steel rod insert, 1″ throw
Strike 1-1/8″ x 3-1/2″
Faceplate 1-1/8” x 3-5/8″ , square corner
Function Single Cylinder with Thumb Turn
Cylinder 6 pin solid brass cylinder, Schlage “C” keyway.
Keying
Keyed different - KD (standard)
Finish  626 - 26D - Satin Chrome
Certifications
ANSI/BHMA Meets or exceeds A156.5 Grade 1 requirements
UL Listed 3-hour fire rating
BAA Meets guidelines of the Buy American Act
Manufacturer Warranty 1-year limited for electronic
5-year limited for finish
10-year limited for mechanical



Downloads
