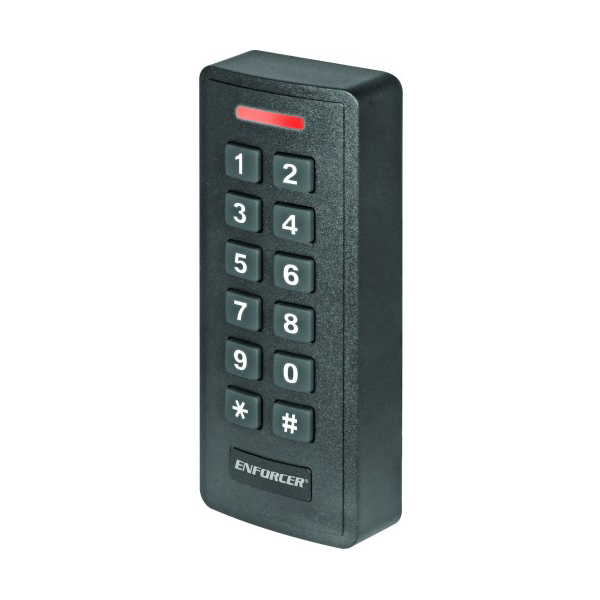

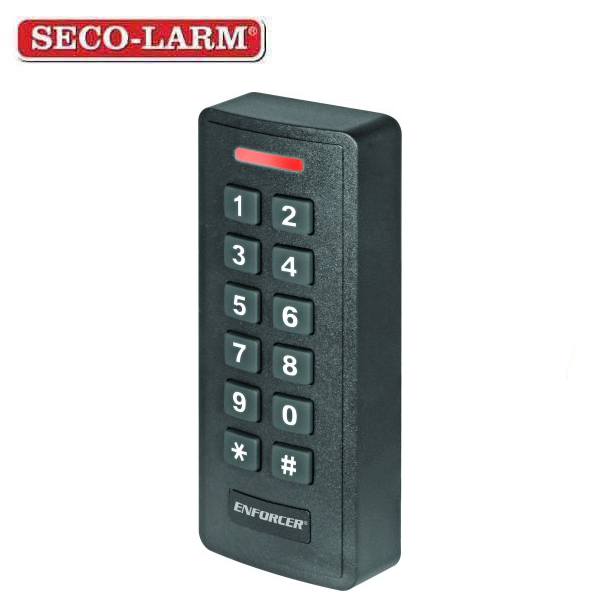

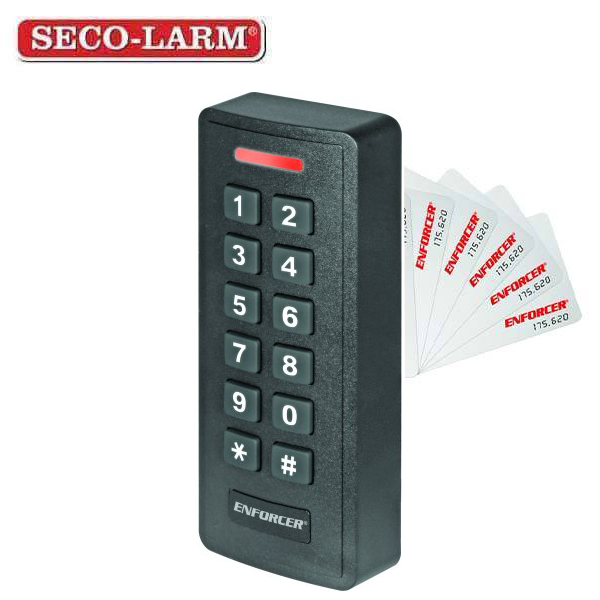

Seco-Larm - Access Control Stand-Alone Digital Keypad PROX Reader - 1000 users - Outdoor
In Stock
SKU:
SLM-SK-2612-SPQ
NSID:
6772
Get it shipped ! Order within:
Get it shipped ! Order within:
Get an Extra Hour with
- $106.50
-
$131.10 - $106.50
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
- 1,000 Users (up to 998 users and 2 duress users)
- User code length 4~6 digits
- 9~18 VDC Operation, low current draw – 105mA max.
- Form C relay output – 2A@12VDC
- Adjustable output time – 0.5~99s, or toggle
- Built-in tamper alarm and external alarm (duress) output
- Backlit keypad and multicolor status LED
- EM 125kHz, Proximity cards (PR-K1S1-A) and Keyfobs (PR-K1K1-AQ) sold separately
- Easy transfer of users to additional devices using Wiegand output
- All features programmed directly on the keypad: No need for an external programmer
- Egress input lets users exit the premises without a code/card
- Can serve as either Wiegand reader or controller, both output and input are selectable 26~37 bits
- 2-Door interlock function
- Extreme cold tolerance to -40° F (-40° C)
- Epoxy-filled black ABS plastic housing –Weather-resistant IP66
Specification:
| Operating Voltage | 9~18 VDC |
| Current Draw - Standby | 40mA@12VDC |
| Current Draw- Active | 105mA@12VDC (max.) |
| Output- Wiegand | 26~44 bit |
| Output - Form C | 2A@12VDC |
| Output- Alarm | 2.5A@12VDC |
| Output - Wiegand | 26~37 bits, PIN output bits – 4, 8, or 10 |
| Egress Inputs | N.O. Ground |
| Door Sensor Input | N.C. Ground |
| Card type | EM 125kHz |
| Enclosure material | Black ABS plastic |
| Operating Temperature | -40°~140° F (-40°~60° C) |
| Operating Humidity | 10~90% non-condensing |
| Dimensions | 1-15/16"x4-3/4"x15/16" (49x120x24 mm) |
| Weight | 5.8-oz (165g) |
Comparison Chart :
| Model | SK-2612-SFSQ NEW | SK-2611-SFSQ OLD |
| Weatherproof | Yes | No |
| Operating temperature | -22°F~140°F | -4°F~122°F |
| Relay output | Yes | Yes |
|
User capacity |
3,000 (1,000 Fingerprint + 2,000 PIN) |
1,000 (500 Fingerprint + 500 PIN) |
| Support higher security PIN | Yes | No |
| Wiegand | Wiegand 26~44 bit output | Wiegand 26 bit output |
| Multi PINS /Fingerprint access | Yes | No |
| Can set authorized users | Yes | No |
| 2 Devices can interlock | Yes | No |
