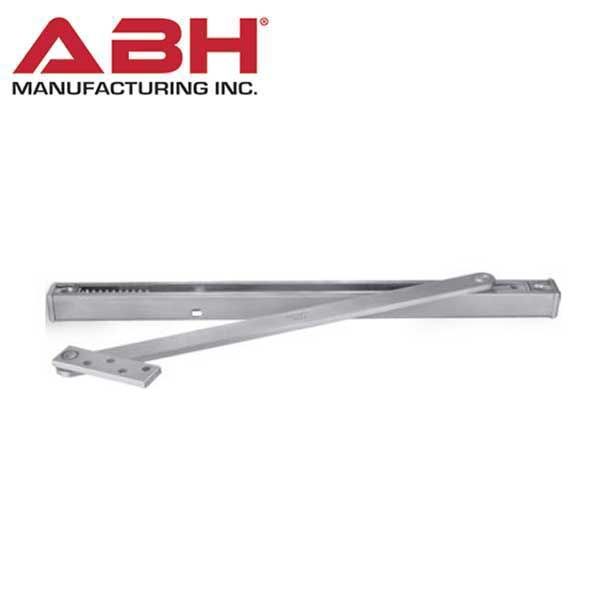

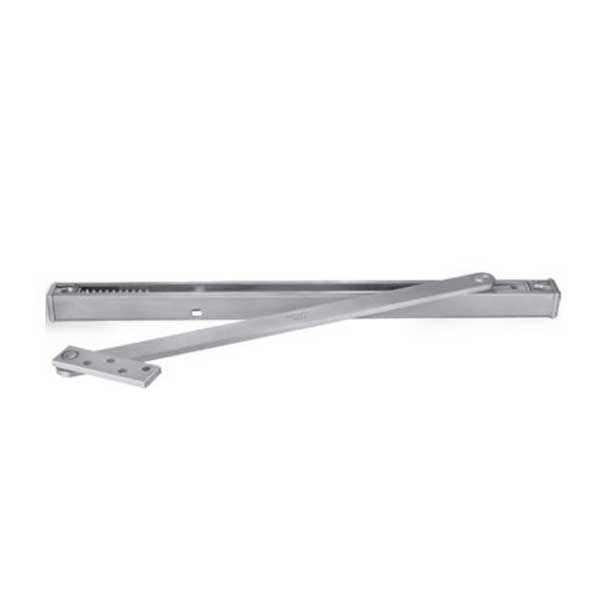

ABH - 1016 - Heavy Duty - Concealed Mount Overhead Door Holder - Satin Stainless Steel - 18"

In Stock
SKU: ABH-1016-18-US32D
NSID: 25026

Get it shipped ! Order within:

Get it shipped ! Order within:

Get an Extra Hour with

$131.44
$157.73
$131.44

Overhead holders and stops are used to prevent unnecessary damage
to the door, frame, wall and other door hardware by limiting the degree of door swing. They are installed at the top of a door opening; therefore, out of the general reach and not a tripping hazard. Whether for commercial or residential application, the use of overhead holders and stops extends the life of the opening and other hardware.

Door Holder – Door will stay held open at the selected degree of opening. Hold-open adjustment screw controls the amount of force required to disengage the hold-open mechanism.

Features:

  • Concealed mount
  • Heavy duty
  • Single or double acting doors
  • Non-handed
  • For interior or exterior use on frequent traffic and heavyweight doors
  • Shock absorbing spring provides 3 to 5 degrees cushion before dead-stop
  • NOTE: This Item Does NOT Qualify for FREE Shipping - Please contact your sales representative to get shipping costs . Call 1-800-878-6604 between Monday and Friday 9AM-6PM EST

Call 1-800-878-6604 for Bulk / Dealer Pricing!


    Specifications:

    Function: Door Holder
    Door Thickness: 1-3/4" minimum
    Frame Opening: 85° to 110° of opening (5° increments)
    Door Width: Fits butt hinges or offset pivots 27” - 29-15/16”. 30” - Center Hung 32-15/16”
    Handing: Non-handed
    Spring: Shock absorbing spring provides 3° to 5° cushion before dead-stop
    Material: Stainless Steel
    Finish: Satin Stainless Steel
    Mounting Style: Concealed
    Certification: ANSI Code C01511
