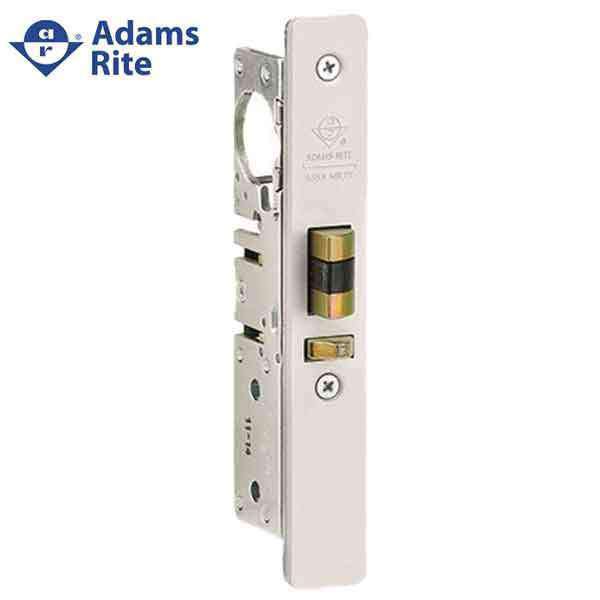

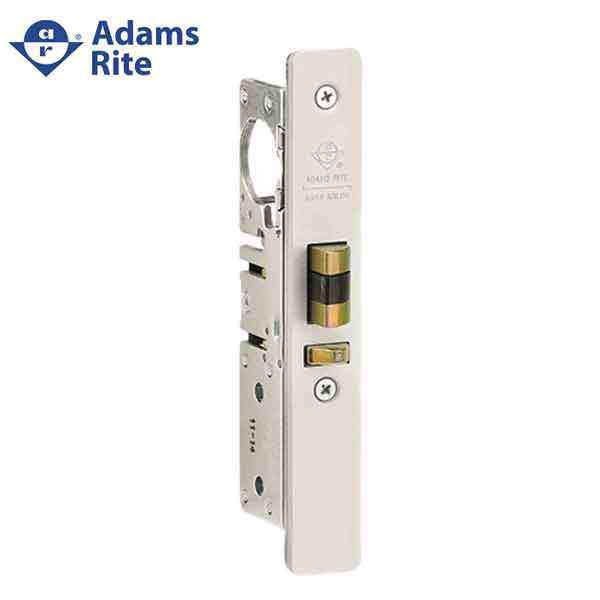

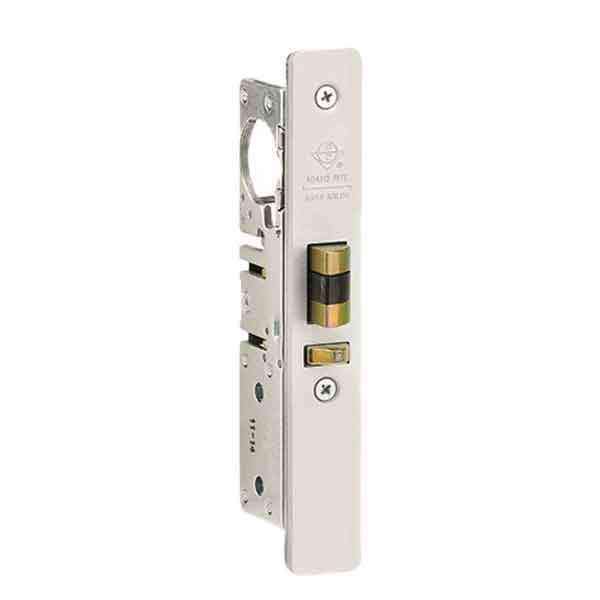

Adams Rite - 4511 - Standard Duty Deadlatch - 1-1/8" Backset - LH /RHR - Mortised 2-5/8" - FLT/ST - Radial Faceplate - Aluminum - Metal Door
Adams Rite - 4511 -  Standard Duty Deadlatch - 1-1/8" Backset - LH /RHR - Mortised  2-5/8"  - FLT/ST - Radial Faceplate - Aluminum - Metal Door
Adams Rite - 4511 -  Standard Duty Deadlatch - 1-1/8" Backset - LH /RHR - Mortised  2-5/8"  - FLT/ST - Radial Faceplate - Aluminum - Metal Door
Adams Rite - 4511 -  Standard Duty Deadlatch - 1-1/8" Backset - LH /RHR - Mortised  2-5/8"  - FLT/ST - Radial Faceplate - Aluminum - Metal Door
Adams Rite - 4511 -  Standard Duty Deadlatch - 1-1/8" Backset - LH /RHR - Mortised  2-5/8"  - FLT/ST - Radial Faceplate - Aluminum - Metal Door
Adams Rite - 4511 -  Standard Duty Deadlatch - 1-1/8" Backset - LH /RHR - Mortised  2-5/8"  - FLT/ST - Radial Faceplate - Aluminum - Metal Door
Adams Rite - 4511 -  Standard Duty Deadlatch - 1-1/8" Backset - LH /RHR - Mortised  2-5/8"  - FLT/ST - Radial Faceplate - Aluminum - Metal Door
Adams Rite - 4511 -  Standard Duty Deadlatch - 1-1/8" Backset - LH /RHR - Mortised  2-5/8"  - FLT/ST - Radial Faceplate - Aluminum - Metal Door
Adams Rite - 4511 -  Standard Duty Deadlatch - 1-1/8" Backset - LH /RHR - Mortised  2-5/8"  - FLT/ST - Radial Faceplate - Aluminum - Metal Door
Adams Rite - 4511 -  Standard Duty Deadlatch - 1-1/8" Backset - LH /RHR - Mortised  2-5/8"  - FLT/ST - Radial Faceplate - Aluminum - Metal Door
Adams Rite - 4511 -  Standard Duty Deadlatch - 1-1/8" Backset - LH /RHR - Mortised  2-5/8"  - FLT/ST - Radial Faceplate - Aluminum - Metal Door

Adams Rite - 4511 - Standard Duty Deadlatch - 1-1/8" Backset - LH /RHR - Mortised 2-5/8" - FLT/ST - Radial Faceplate - Aluminum - Metal Door

$45.60 $88.00
Available: In Stock
Wishlist
  • Product SKU: ADR-4511-35-201-628
  • LIST PRICE: $88.00

    ADR-4511-35-201-628
    Item Number: 6985

    The 4511 Series Standard Duty Deadlatch offers flexibility of traffic control during and after business hours. A reverse turn of the key while the bolt is held retracted retains the bolt to allow two-way traffic for healthcare, financial institutions, retail, and other applications that require free entrance at certain times and exit-only at other times. Interchangeable, without stile modification, with any MS1850S Deadlock of same backset and faceplate shape.

    More Details Below

    •
    $45.60

Features

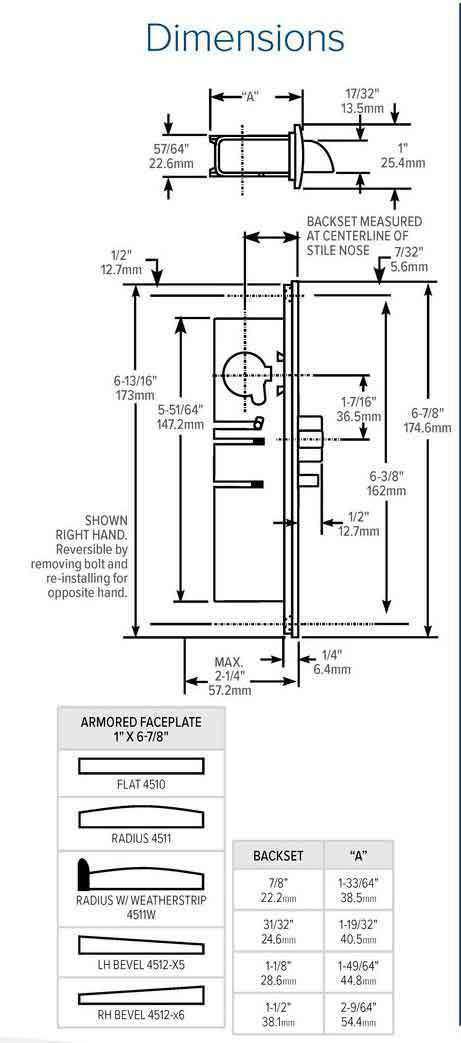

Backset  1-1/8" [28.6 mm]
Case Steel with corrosion-resistant plating. Measures 1" x 5-13/16" x depth [25.4 mm x 147.6 mm
x depth]. Depth varies by backset
Bolt Holdback While bolt is held fully retracted, a reverse turn of the key retains the bolt, allowing the door to be free swinging.
Latchbolt All metal with hardened steel internal pins. Handing is reversible without special tools. Measures 1/2" x 1" x 1/2"
[12.7 mm x 25.4 mm x 12.7 mm] throw.
Auxiliary Bolt All metal. Deadlocks latchbolt to prevent “loiding” or case-knife entry
Faceplate Radial - Measures 1" x 6-7/8" [25.4 mm x 174.6 mm].
Door Types Aluminum , Swinging Door
Strike Standard strike furnished is Mortised (4902) 2-5/8" -  Flat/Standard Jamb
Standard Package Individually boxed with faceplate and mounting screws.

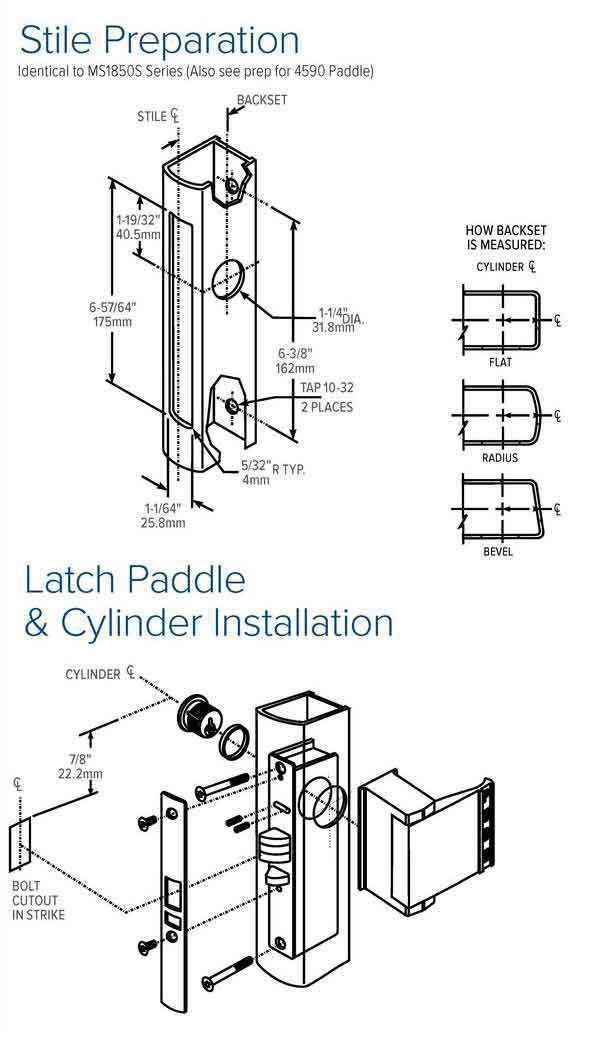

Installation Instructions Download Here

Lock accepts any standard 1" [25.4 mm] length, 1-5/32" [29.4 mm] diameter mortise cylinder with MS® cam. Cylinder Sold Separately


LIST PRICE: $88.00

ADR-4511-35-201-628
Item Number: 6985

The 4511 Series Standard Duty Deadlatch offers flexibility of traffic control during and after business hours. A reverse turn of the key while the bolt is held retracted retains the bolt to allow two-way traffic for healthcare, financial institutions, retail, and other applications that require free entrance at certain times and exit-only at other times. Interchangeable, without stile modification, with any MS1850S Deadlock of same backset and faceplate shape.

More Details Below

  •

Features

Backset  1-1/8" [28.6 mm]
Case Steel with corrosion-resistant plating. Measures 1" x 5-13/16" x depth [25.4 mm x 147.6 mm
x depth]. Depth varies by backset
Bolt Holdback While bolt is held fully retracted, a reverse turn of the key retains the bolt, allowing the door to be free swinging.
Latchbolt All metal with hardened steel internal pins. Handing is reversible without special tools. Measures 1/2" x 1" x 1/2"
[12.7 mm x 25.4 mm x 12.7 mm] throw.
Auxiliary Bolt All metal. Deadlocks latchbolt to prevent “loiding” or case-knife entry
Faceplate Radial - Measures 1" x 6-7/8" [25.4 mm x 174.6 mm].
Door Types Aluminum , Swinging Door
Strike Standard strike furnished is Mortised (4902) 2-5/8" -  Flat/Standard Jamb
Standard Package Individually boxed with faceplate and mounting screws.


Installation Instructions Download Here

Lock accepts any standard 1" [25.4 mm] length, 1-5/32" [29.4 mm] diameter mortise cylinder with MS® cam. Cylinder Sold Separately
