Adams Rite - 4612 Power Transfer Device for Electrical Wiring - 105° Swing
In Stock
SKU:
ADR-4612-1
NSID:
735
Get it shipped ! Order within:
Get it shipped ! Order within:
Get an Extra Hour with
- $99.06
-
$171.00 - $99.06
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
LIST PRICE: $171.00
ADR-4612-1

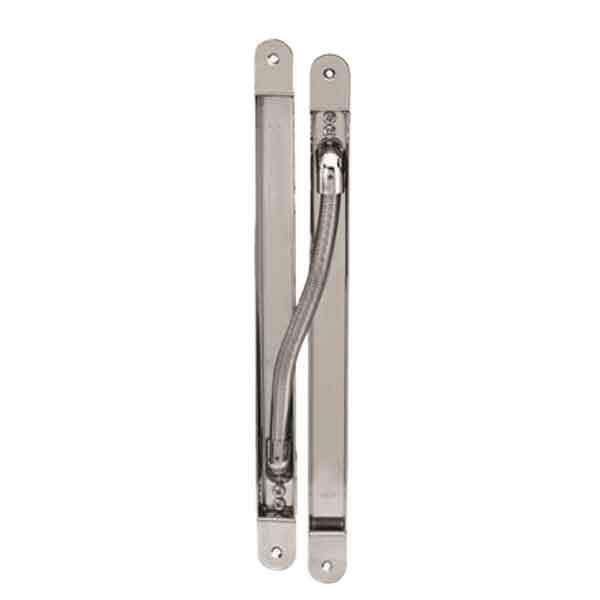

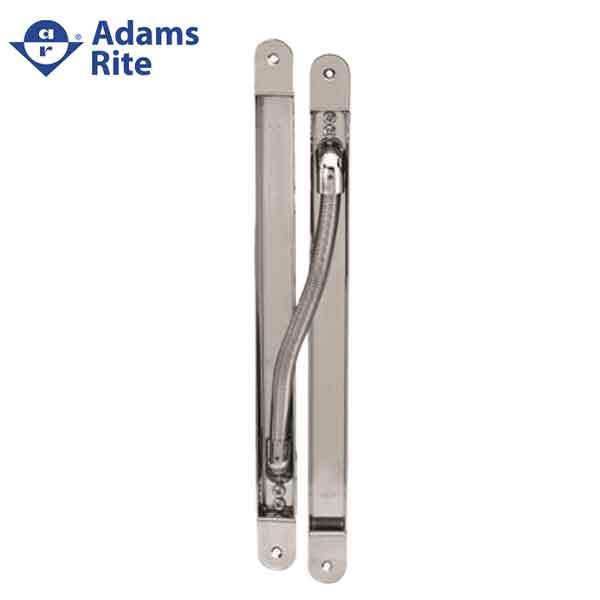

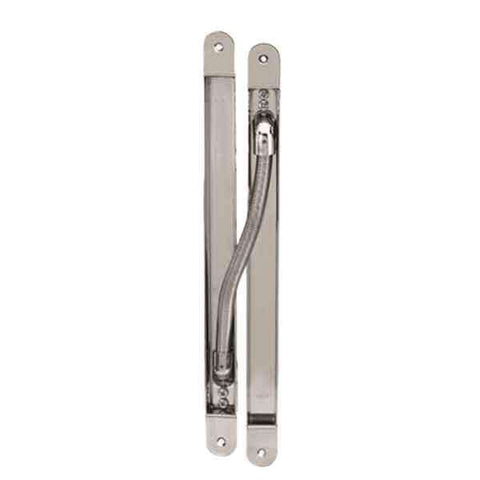

The 4612 Power Transfer Device channels electrical wiring from the door frame into the door itself. Designed for use with locks, exit devices, and more on doors hung with butt-type hinges.
Provides a secure and unobtrusive means of channeling electrical wiring from the door frame into the door itself, for powering electric strikes on the inactive leaf of a pair of doors, locks, exit devices, etc. Suitable for any door hung with butt-type hinges, including continuous or pivots offset 3/4" [19.1 mm] or less. Not compatible with center-pivot doors
More Details Below
Features
| Certifications | UL listed |

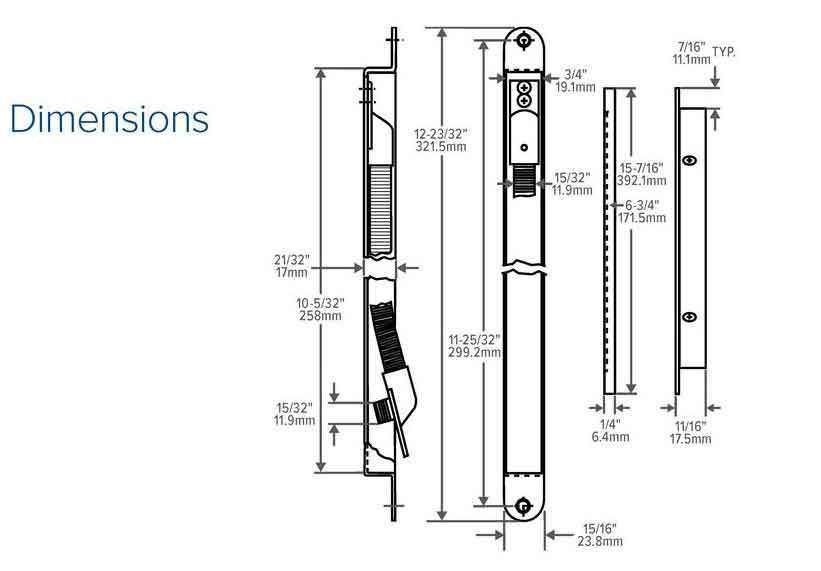

| Housing | Stamped steel, approximately 1/16” [1.6 mm] thick. Short (105° swing) version shown is 11-1/12” [281.5 mm] long. |
| Case Knife Guard | Particularly for out-swinging doors, a steel barrier fence offers extra protection against attack on the conduit by knives, shims, or other tools. Completely hidden when door is closed |
| Conduit | Spring steel helix has internal diameter of approximate 5/16". This provides ample room for multiple wires of the low voltage type used with most electrical hardware |
| Applications |
For use with aluminum, hollow metal, or wood door and frames. |
| Swing |
Standard (short) version suits doors that swing up to 105°. Longer version that swings up to 180 is available please call |
