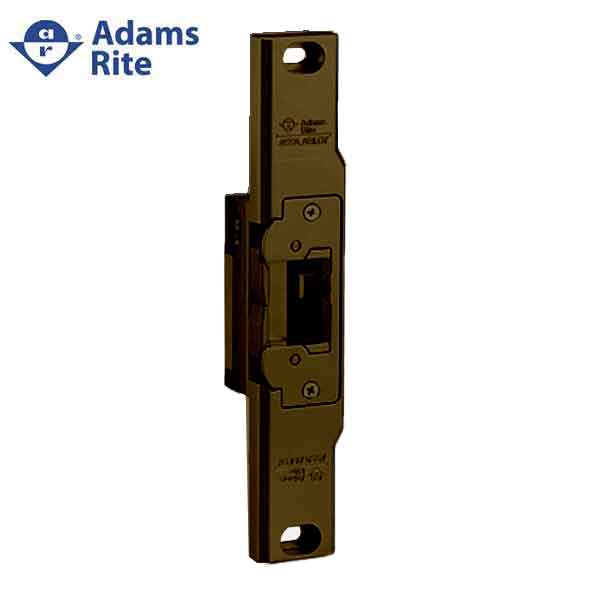

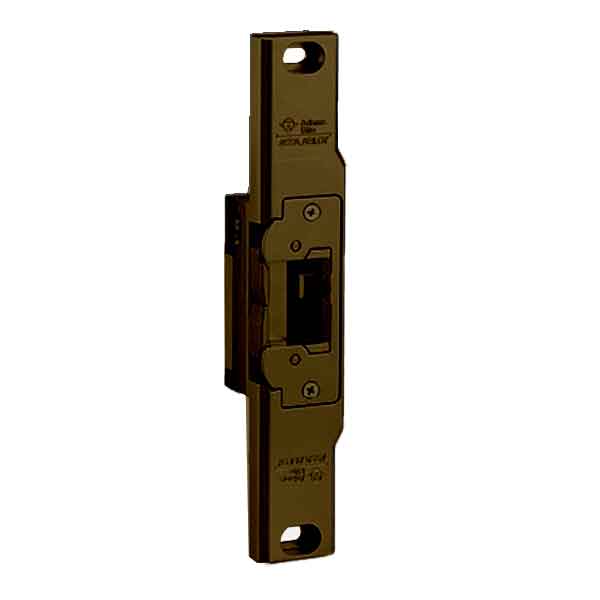

Adams Rite - 74R2 - Electric Strike for Narrow Stile Rim Exit Devices - 1/2" Pullman Latchbolt - Anodized Dark Bronze - Fail Safe/Fail Secure - 12/24 VDC
Get it shipped ! Order within:
Get it shipped ! Order within:
Get an Extra Hour with
- $216.92
-
$364.00 - $216.92
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
List Price: 364.00
ADR-74R2-121
The 74R2 Electric Strike is designed for narrow stile rim exit devices with 1/2" [12.7 mm] Pullman latchbolts.
For use in aluminum, hollow metal or wood applications.
Designed for use in aluminum applications.
Open electrically under 25 lbs [11.3 kg] of preload. Preload is pressure exerted on doors by air conditioning systems, warping or misaligned hardware which can disable common electric strikes.
These non-handed strikes feature an ultra-compact design and adjustable stainless steel keepers with over 1,500 lbs [680.4 kg] of holding force in fail secure mode. The strikes release electrically with up to 25 lbs of door preload. Single solenoid operates on 12/16/24 VDC power. Provides electrical remote control, allowing door to open without actuation of the exit device
Features
| Certifications | ANSI/BHMA A156.31 Electric Strikes and Frame Mounted Actuators, Grade 1 |
| Case | 1-13/32" x 3-3/8" x 1-1/8" deep [35.7 mm x 85.7 mm x 28.6 mm deep] |
| Strike Opening | Bolt retaining keeper is stainless steel. 5/8" x 1-7/16" x 1/2" deep [15.9 mm x 36.5 mm x 12.7 mm deep]. |
| Faceplate |
Not separate 1-5/8" x 9 x 1/2" [41.3 mm x 228.6 mm x 12.7 mm] |
| Voltage | Field selectable to match power source of 12/24 VDC. VA7400-16VDC voltage adapter required when using 16 VDC power, available separately. Equipped with a quick connect plug-in type connector |
| Current Draw |
44A at 12 VDC |
| Fail Safe | Fail Secure | Field selectable fail safe/fail secure |
