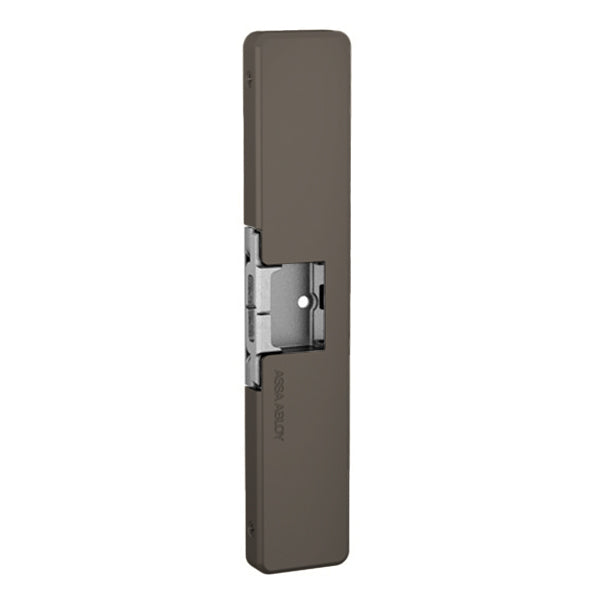

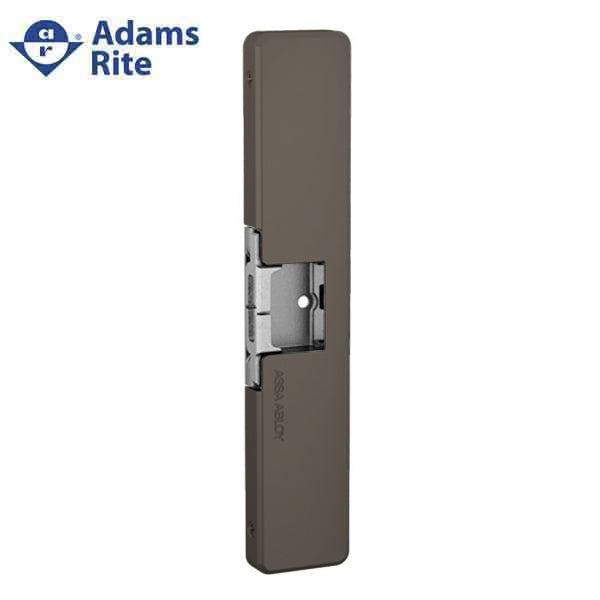

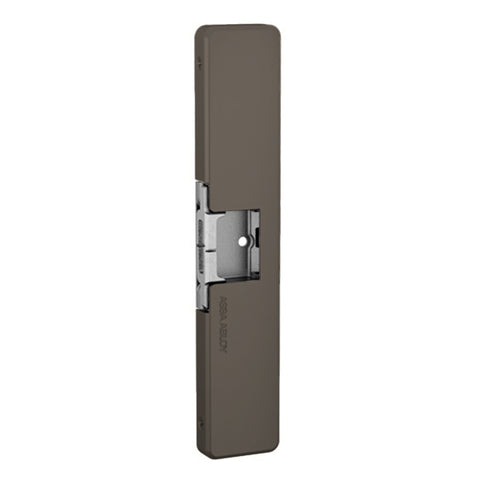

Adams Rite - 7800 - Electric Strike for Adams Rite Rim Exit Devices - Adjustable Fail Safe/Fail Secure - Dark Bronze - Adjustable 12/24 VDC
Adams Rite - 7800 - Electric Strike for Adams Rite Rim Exit Devices - Adjustable Fail Safe/Fail Secure - Dark Bronze - Adjustable 12/24 VDC
Adams Rite - 7800 - Electric Strike for Adams Rite Rim Exit Devices - Adjustable Fail Safe/Fail Secure - Dark Bronze - Adjustable 12/24 VDC
Adams Rite - 7800 - Electric Strike for Adams Rite Rim Exit Devices - Adjustable Fail Safe/Fail Secure - Dark Bronze - Adjustable 12/24 VDC
Adams Rite - 7800 - Electric Strike for Adams Rite Rim Exit Devices - Adjustable Fail Safe/Fail Secure - Dark Bronze - Adjustable 12/24 VDC

Adams Rite - 7800 - Electric Strike for Adams Rite Rim Exit Devices - Adjustable Fail Safe/Fail Secure - Dark Bronze - Adjustable 12/24 VDC

$404.00 $625.00
Available: In Stock
Wishlist
  • Product SKU: ADR-7800-613E
  • ADR-7800-613E
    Item number: 8150

    The 7800 Electric Strike is designed for use with Adams Rite rim exit devices with a Starwheel/Interlocking latchbolt (8800 & 8700 Series, EX88). For use in aluminum,hollow metal or wood applications.

    Function:
    This non-handed, low-profile, surface mounted electric strike features anultra-compact design and adjustable stainless steel keepers with over 1,500 lbs [680.4 kg] of holding force in fail secure mode. Internally mounted dual solenoid operates on 12 or 24 VDC power. Provides electrical remote control, allowing door to open without actuation of the exit device..

    $404.00

Features

Certifications  ANSI/BHMA A156.31, Grade 1
UL 1034 burglary-resistant listed and suitable for outdoor use
UL 294 listed
RoHS compliant
Strike Dimensions 1-13/4" x 9" x 9/16" deep
[44.5 mm x 229 mm x 14.2 mm deep]
Strike Opening Bolt retaining keeper is stainless steel.
1" x 1-1/2" x 1/2" deep [24.4 mm x 38.1 mm x 12.7 mm deep].
Strike only accepts Starwheel/ Interlocking latching mechanism.
Faceplate Not separate
1-3/4" x 9-1/64" x 9/16"
[44.5 mm x 229 mm x 14.2 mm deep]



Finish 613E Dark Oxidized Satin
Bronze
Compatibility Accommodates Starwheel/ Interlocking latching mechanism of Adams Rite 8700, 8800, EX88 Series Rim Exit Devices.
Voltage Field selectable, dual
voltage, 12 or 24 VDC.
Current Draw 0.45A at 12 VDC
0.25A at 24 VDC
Fail Safe | Fail Secure Field selectable fail safe/fail secure
Standard Package Individually boxed with 1/16" and 1/8"spacer plates, mounting screws and installation instructions.
• Spacer Plates included to accommodate varying door gaps.
• Screws for wood applications not provided



Download:

ADR-7800-613E
Item number: 8150

The 7800 Electric Strike is designed for use with Adams Rite rim exit devices with a Starwheel/Interlocking latchbolt (8800 & 8700 Series, EX88). For use in aluminum,hollow metal or wood applications.

Function:
This non-handed, low-profile, surface mounted electric strike features anultra-compact design and adjustable stainless steel keepers with over 1,500 lbs [680.4 kg] of holding force in fail secure mode. Internally mounted dual solenoid operates on 12 or 24 VDC power. Provides electrical remote control, allowing door to open without actuation of the exit device..

Features

Certifications  ANSI/BHMA A156.31, Grade 1
UL 1034 burglary-resistant listed and suitable for outdoor use
UL 294 listed
RoHS compliant
Strike Dimensions 1-13/4" x 9" x 9/16" deep
[44.5 mm x 229 mm x 14.2 mm deep]
Strike Opening Bolt retaining keeper is stainless steel.
1" x 1-1/2" x 1/2" deep [24.4 mm x 38.1 mm x 12.7 mm deep].
Strike only accepts Starwheel/ Interlocking latching mechanism.
Faceplate Not separate
1-3/4" x 9-1/64" x 9/16"
[44.5 mm x 229 mm x 14.2 mm deep]



Finish 613E Dark Oxidized Satin
Bronze
Compatibility Accommodates Starwheel/ Interlocking latching mechanism of Adams Rite 8700, 8800, EX88 Series Rim Exit Devices.
Voltage Field selectable, dual
voltage, 12 or 24 VDC.
Current Draw 0.45A at 12 VDC
0.25A at 24 VDC
Fail Safe | Fail Secure Field selectable fail safe/fail secure
Standard Package Individually boxed with 1/16" and 1/8"spacer plates, mounting screws and installation instructions.
• Spacer Plates included to accommodate varying door gaps.
• Screws for wood applications not provided



Download:

Compatible With
