Adams Rite - 8099 - Narrow Stile - Electrified Surface Exit Device - Dummy Function - (M1) Monitor Switch - 36" - Anodized Aluminum
In Stock
SKU:
ADR-8099-M1-3136
NSID:
721
Get it shipped ! Order within:
Get it shipped ! Order within:
Get an Extra Hour with
- $235.83
-
$408.00 - $235.83
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
LIST PRICE: $408.00
ADR-8099-M1-3136

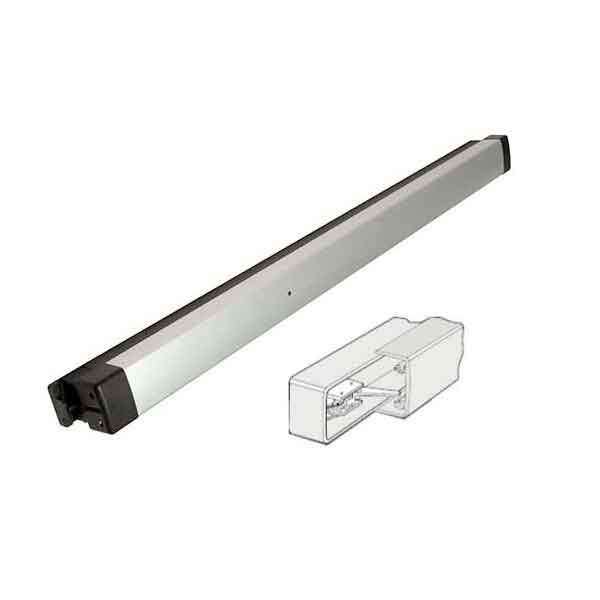

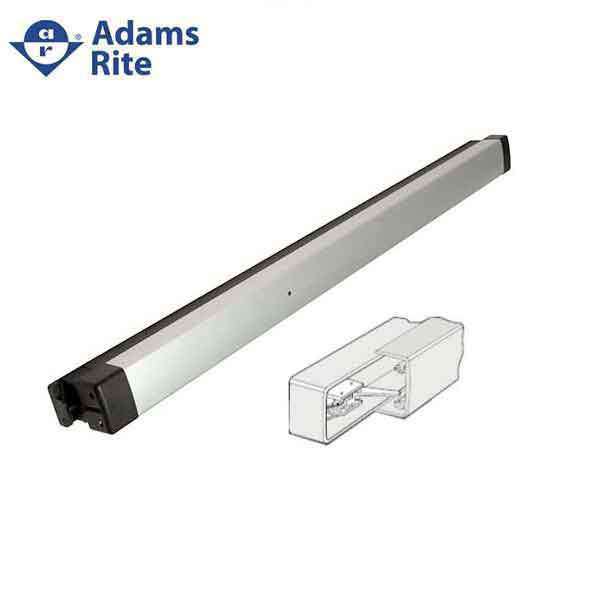

The 8099 Electrified Dummy Push Bar is designed for narrow stile aluminum, hollow metal, and wood applications that do not require a latching/locking life-safety exit device.
Dummy Push Bar with no latch mechanism but with either single or dual monitor/signal switches. May be used in conjunction with a maglock, where the push bar turns off the magnet and allows exit from the building. Dual switch version allows redundancy where required by code or the operation of a signal device. Designed for applications with single or pairs of doors.
More Details Below
Features
| Materials | Push bar made of extruded aluminum, available variety of architectural finishes. |
| Door Type |
For Aluminum Doors |
| Stile Width |
For aluminum applications: minimum 2" [50.8 mm] stile. |
| Push Bar Length |
Standard 36" [914.4 mm], |
| Monitor | 1 Active Dummy Bar, one monitoring switch |
| Fasteners | Standard machine screws |
