Adams Rite - 8611 - Narrow Stile - Concealed Vertical Rod Exit Device - 36" - Anodized Aluminum

In Stock
SKU: ADR-8611-36
NSID: 727

Get it shipped ! Order within:

Get it shipped ! Order within:

Get an Extra Hour with

$405.38
$713.00
$405.38

ADR-8611-36

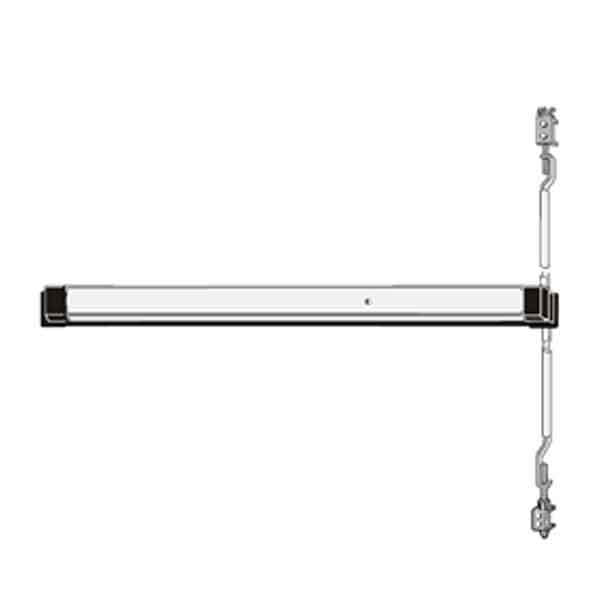

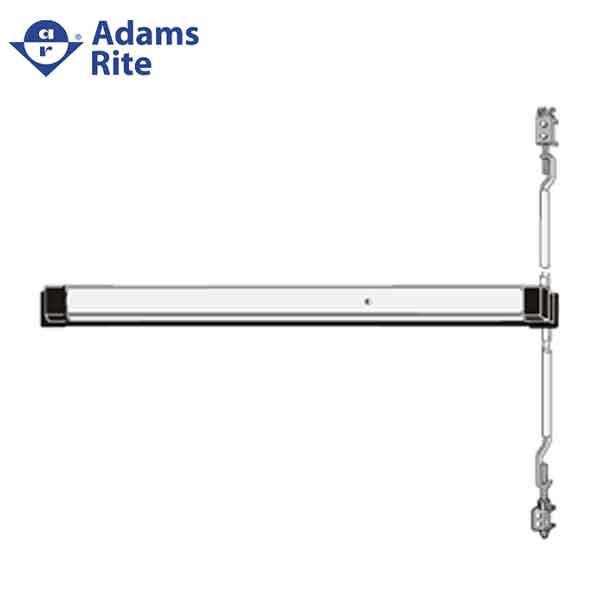

The 8600 Series Concealed Vertical Rod Exit Device is designed for narrow stile aluminum applications that require a lifesafety exit device with concealed vertical rods for two-point locking. Designed for use in applications with single doors or pairs of doors

More Details Below

Call 1-800-878-6604 for Bulk / Dealer Pricing!

Features

Certifications UL 305 Panic hardware
ANSI/BHMA A156.3-2008 Grade 1
ANSI/BHMA A156.3-2014 Grade 2
Materials Push bar made of extruded aluminum,
clad or anodized in a variety of finishes
Handing Device is non-handed.
Push bar Length

Standard size: 36" [914.4 mm] Standard width bars can be field cut to the next smallest opening width.

Bar Height Standard model adjusts from 30" [762 mm] to 44" [1117.6 mm].
Door Thickness Suits 1-3/4" [44.5 mm] standard, up to 2-1/4" [57.2 mm]. Device requires modification when used with cylinder in doors over 1-3/4" [44.5 mm].
Door Height

Standard configuration suitable for doors up to 66" [1,676.4 mm] above the selected bar height.

For doors over 66" [1,676.4 mm] above bar height, up to 10' [3.05 m] use 8655 Tall Door Kit SOLD Separately

Stile Width Minimum 2" [50.8 mm] stile. Fits narrow, medium, and wide stile aluminum doors
Projection 2-5/8" [66.7 mm] when fully projected,
1-5/8" [41.3 mm] when dogged.
Dogging Standard dogging with hex key or optional cylinder dogging.
Fasteners Standard machine screws.
Cylinders Accepts any standard 1" [25.4 mm] length, 1-5/32" [29.4 mm] diameter mortise cylinder with MS® cam.r. Accommodates cylinder lengths from 1" [25.4 mm] to 1-1/4" [31.8 mm]
Cylinder x Fixed Pull Functions For entry trim function 03 (Night latch - key releases latch) select any standard 1" [25.4 mm] length, 1-5/32" [29.4 mm] diameter mortise cylinder with MS® cam such as the 4036 Mortise Cylinder. Accepts any standard mortise cylinder with MS® cam. If key entry operation is required, any standard mortise cylinder with MS® cam can be installed through an 8650 Cylinder Escutcheon. 8650 Cylinder Escutcheon Kit available separately.
Entry Trim Functions For entry trim function 08 (key locks/unlocks lever) or function 09 (key releases lever) select any standard 1" [25.4 mm] length, 1-5/32" [29.4 mm] diameter mortise cylinder with MS® cam such as the 4036 Mortise Cylinder. Accommodates cylinder lengths from 1" [25.4 mm] to 1-1/4" [31.8 mm]. Available separately.

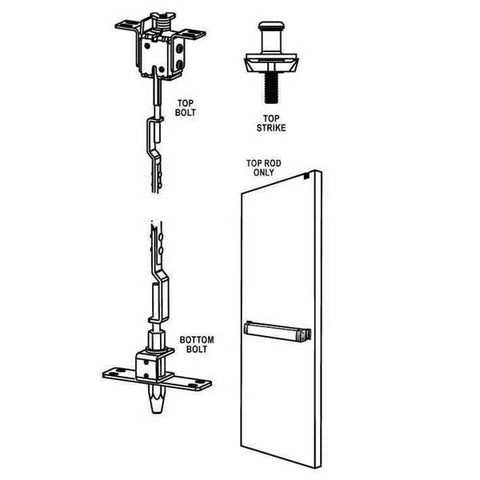

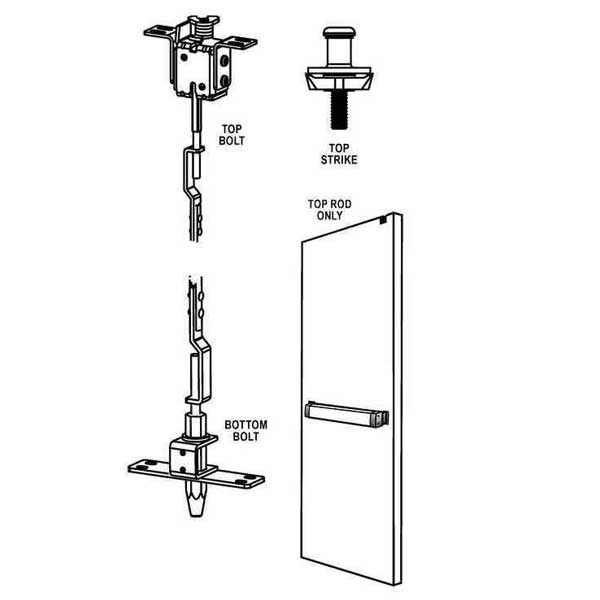

Bolts and Strikes The patented top latching mechanism utilizes a rotating top bolt which deadlatches around the header strike, interlocking the door to the frame. Supplied with standard header strike. Adjustable protected steel rods. The hexagonal, hardened steel bottom bolt is shielded in a cast housing for strength and stability.

Download Installation Instructions Here
