Adams Rite - 8802 - Narrow Stile - Rim Exit Device - 42" - Anodized Dark Bronze
In Stock
SKU:
ADR-8802-42
NSID:
67240
Get it shipped ! Order within:
Get it shipped ! Order within:
Get an Extra Hour with
- $289.12
-
$346.94 - $289.12
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per

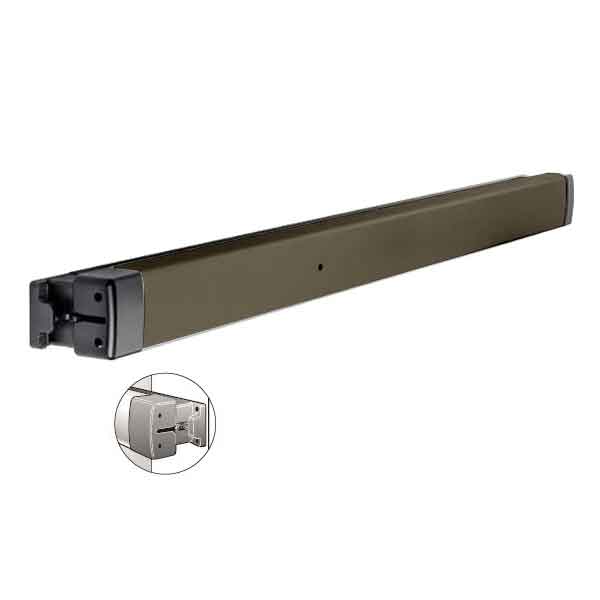

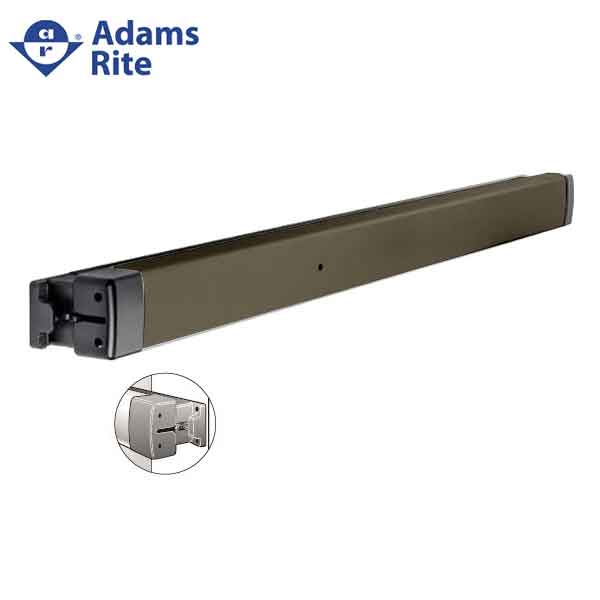

The 8800 Series Narrow Stile Rim Exit Device is designed for narrow stile aluminum applications that require a life-safety exit device with a Starwheel interlocking solution. Designed for use in applications with single doors or pairs of doors with a mullion.
More Details Below
Features
| Certifications | UL 305 Panic Hardware ANSI/BHMA A156.3-2008 Grade 1 ANSI/BHMA A156.3-2014 Grade 2 |
| Materials | Push bar made of extruded aluminum, clad or anodized in a variety of finishes |
| Handing | Device is non-handed. |
| Push bar Length |
Standard size: 42" [1066.8 mm] Standard width bars can be field cut to the next smallest opening width. |
| Door Thickness | Suits 1-3/4" [44.5 mm] standard, up to 2-1/4" [57.2 mm]. |
| Stile Width | Minimum 2" [50.8 mm] stile. Fits narrow, medium, and wide stile aluminum doors |
| Projection | 2-5/8" [66.7 mm] when fully projected, 1-5/8" [41.3 mm] when dogged. |
| Dogging | Standard dogging with hex key or optional cylinder dogging. |
| Fasteners | Standard machine screws. |
| Cylinders | Fits any standard 1-5/32" [29.4 mm] diameter rim cylinder |

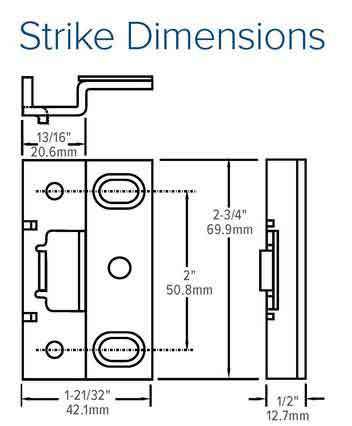

| Strike | Standard strike and narrow versions for centering doors in 4" jamb (both strikes included). |
Downloads:
