Adams Rite - 8802EL - Narrow Stile - Electric Rim Exit Device - 36" - Anodized Dark Bronze - Electric Latch Retraction (LR) - 12 Volt

$435.79 $895.00
Available: In Stock
Wishlist
  • Product SKU: ADR-8802EL-36-12
  • LIST PRICE: $895.00

    ADR-8802EL-36-12
    Item Number: 7650

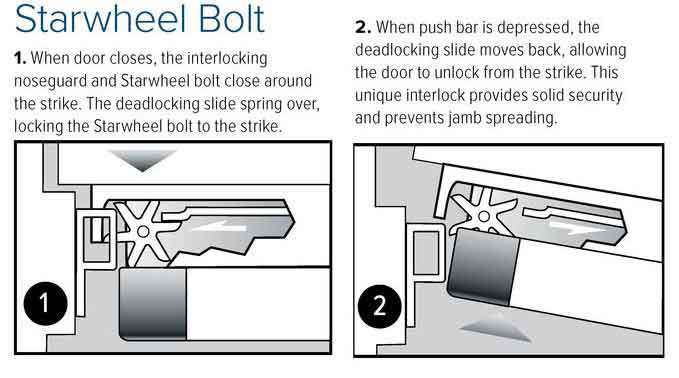

    The 8800 Series Electrified Narrow Stile Rim Exit Device is designed for
    narrow stile aluminum applications that require a life-safety exit
    device with Starwheel interlocking solution. Designed for use in
    applications with single doors or pairs of doors with a mullion.

    More Details Below

    •
    $435.79

Customer Reviews

Based on 1 review
0%
(0)
100%
(1)
0%
(0)
0%
(0)
0%
(0)
J
James
CCan I connect a card reader to open the from outside

What is possibility of interfacing this with a proximity card reader as entry, while the Electric bush bar will still serve as exit.

Features

Certifications  UL 305 Panic Hardware
ANSI/BHMA A156.3-2008 Grade 1
ANSI/BHMA A156.3-2014 Grade 2
Electrification Electric Latch Retraction (EL) - 12 Volts
Materials Push bar made of extruded aluminum,
clad or anodized in a variety of finishes
Handing Device is non-handed.
Push bar Length

Standard size: 36" [914.4 mm] Standard width bars can be field cut to the next smallest opening width.

Door Thickness Suits 1-3/4" [44.5 mm] standard, up to 2-1/4" [57.2 mm].
Stile Width Minimum 2" [50.8 mm] stile. Fits narrow, medium, and wide stile aluminum doors
Projection 2-5/8" [66.7 mm] when fully projected,
1-5/8" [41.3 mm] when dogged.
Dogging Standard dogging with hex key or optional cylinder dogging.
Fasteners Standard machine screws.
Cylinders Fits any standard 1-5/32" [29.4 mm] diameter rim cylinder

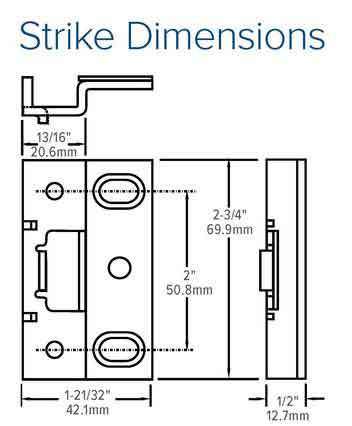

Strike Standard strike and narrow
versions for centering doors in 4"
jamb (both strikes included).



Download Installation Instructions Here

LIST PRICE: $895.00

ADR-8802EL-36-12
Item Number: 7650

The 8800 Series Electrified Narrow Stile Rim Exit Device is designed for
narrow stile aluminum applications that require a life-safety exit
device with Starwheel interlocking solution. Designed for use in
applications with single doors or pairs of doors with a mullion.

More Details Below

  •

Features

Certifications  UL 305 Panic Hardware
ANSI/BHMA A156.3-2008 Grade 1
ANSI/BHMA A156.3-2014 Grade 2
Electrification Electric Latch Retraction (EL) - 12 Volts
Materials Push bar made of extruded aluminum,
clad or anodized in a variety of finishes
Handing Device is non-handed.
Push bar Length

Standard size: 36" [914.4 mm] Standard width bars can be field cut to the next smallest opening width.

Door Thickness Suits 1-3/4" [44.5 mm] standard, up to 2-1/4" [57.2 mm].
Stile Width Minimum 2" [50.8 mm] stile. Fits narrow, medium, and wide stile aluminum doors
Projection 2-5/8" [66.7 mm] when fully projected,
1-5/8" [41.3 mm] when dogged.
Dogging Standard dogging with hex key or optional cylinder dogging.
Fasteners Standard machine screws.
Cylinders Fits any standard 1-5/32" [29.4 mm] diameter rim cylinder
Strike Standard strike and narrow
versions for centering doors in 4"
jamb (both strikes included).



Download Installation Instructions Here
