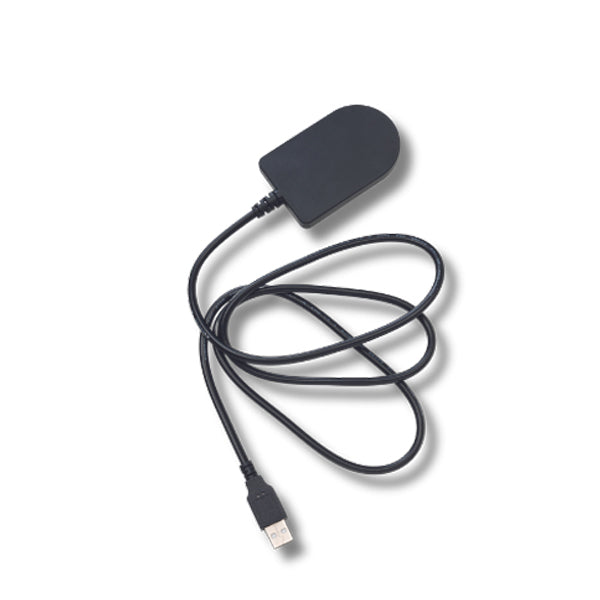

The ADC-2020 Emulator Cable enables faster programming of replacement Ford proximity and bladed keys when the alarm is active, and no working key is available.
ADC2020 Emulator cable works together with the Smart Pro and ADS2269 Ford software to emulate a working key in All Keys Lost situations and with
an active alarm. Key data is read from the vehicle using the Smart Pro software and
then written to the emulator which is connected directly to the Smart Pro via a USB
cable. The emulator then mimics a working key for the vehicle, shutting down the
active alarm, allowing additional keys to be programmed, all without the need of an
existing, working key.
ADC-2020 Features:
- Improves previous procedure for silencing active alarm
- No need to cover ultrasonic sensors to silence alarm
- Eliminates time wait after reading data
Details
Application:
- 2015-2020 Ford Edge (Proximity Key)
- 2016-2019 Ford Explorer (Proximity Key)
- 2015-2020 Ford F-150 (Bladed Key)
- 2015-2019 Ford F-250 (Bladed Key)
- 2016-2019 Ford Fusion (Proximity Key)
- 2017-2019 Ford F-350 (Proximity Key)
- 2016-2020 Ford Fusion (Bladed Key)
- 2019-2023 Ford Ranger (Bladed Key)
- 2018-2019 Lincoln MKC (Proximity Key)
- 2016-2019 Lincoln MKX (Proximity Key)
- 2018-2024 Lincoln Nautilus (Proximity Key)
- 2018-2019 Ford Expedition (Proximity Key)
- 2016-2019 Ford Explorer (Bladed Key)
- 2015-2020 Ford F-150 (Proximity Key)
- 2015-2019 Ford F-250 (Proximity Key)
- 2017-2019 Ford F-350 (Bladed Key)
- 2017-2019 Ford F-550 (Bladed Key)
- 2015-2019 Ford Mustang (Proximity Key)
- 2019-2023 Ford Ranger (Proximity Key)
- 2020 Lincoln MKT (Proximity Key)
- 2016-2020 Lincoln MKZ (Proximity Key)
- 2018-2019 Lincoln Navigator (Proximity Key)
2015 Ford Fusion alarm bypass via the new ADC-2020 emulator
