Alarm Lock Trilogy - DL1300NW - Narrow-Stile Digital Keypad Lever Lock - Networx - Wireless Access - 10B - Oil Rubbed Bronze - Grade 1
- Product SKU: ALL-DL1300NW-10B1
- NSID: 934
-
ALL-DL1300NW-10B1

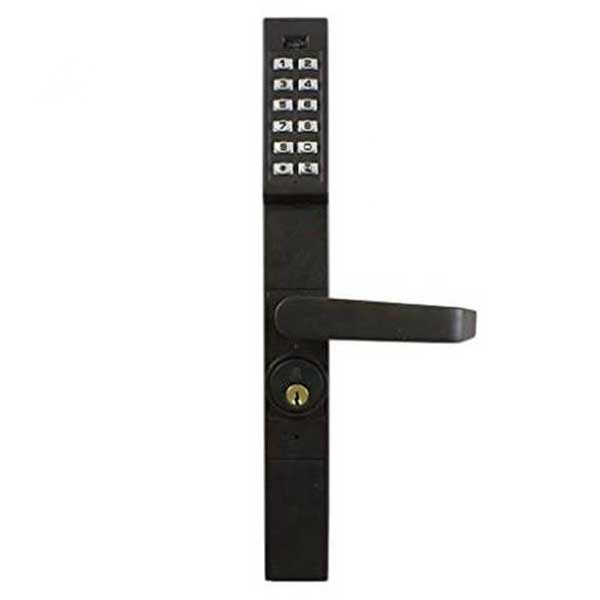

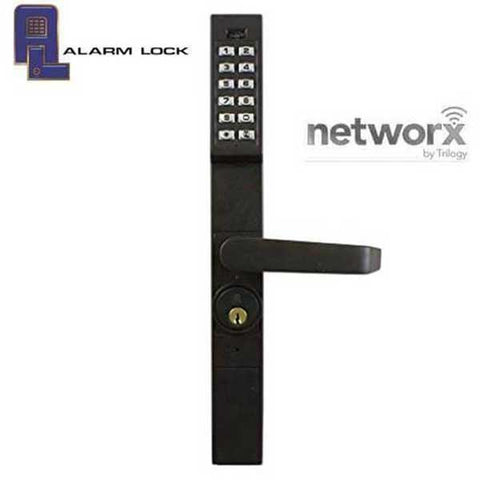

The Trilogy DL1300-NW-10B - Narrow-Stile Digital Networx PROX Lever Lock w/ Wireless Access
Trilogy Narrow Stile lever model designed to work with Adams Rite® latch series products. Get field-proven Trilogy® keyless access lock convenience anywhere there's a glass door with wireless Trilogy Narrow Stile Networx® lock trim from Alarm Lock. Weatherproof, all-metal, and vandal-resistant, they offer automatic lock or free passage schedules to Adams Rite® latch lock applications, remote keyfob support, and emergency global lockdown in seconds. Trilogy Networx Locks communicate wirelessly via gateways and have unsurpassed battery life. The DL1300 is a rugged entry lock of advanced design with several programmable features.
Wireless Access Lock Trim adds Keyless Convenience and automatic Lock - or Free Passage schedules to Adams Rite Latch Lock ApplicationsMore Information Below
- PIN code and PIN/Prox Models support up to 5000 users
- Trilogy Networx Locks communicate wirelessly via Gateways to Ethernet or 802.11B/G for a comprehensive wireless networked door access control system, eliminating door to door programming
- Networked to save manpower - On-demand in seconds or automatically on a set schedule, wirelessly change/update users, schedules, lock features, or retrieve time-/date-stamped audit trails, up to 35,000 events/locks from any networked PC
- Remote Keyfob Support for unlocking, locking, or Global Lockdown activation • Activate emergency global lockdown in seconds from the Networx PC, Networx lock or keyfob
- Saves equipment costs - Choice of Networx Gateways support 63 locks, each and multiple Gateways can be used for 2016 Locks, max. per system
- Proven, Low Maintenance, Wireless Installation and Unsurpassed Battery-Life with Advanced Power-Saver circuits, for years of use in even high traffic areas, powered by 4 off-the-shelf AA Batteries; 3 to 4 years or 100,000 cycles, typ.
- Flexible System Monitoring, Control & Programming – Program locally using a USB Gateway or remotely across a wireless network (using free Alarm Lock DL-WINDOWS Windows-based software)
Specifications
| LOCK FUNCTION | Digital Lever Lock with Networx |
| LATCH | Leverset compatible with Adams Rite 4500, 4700 & 4900 series deadlatch |
| DOOR THICKNESS | 1 3/4” |
| BACKSET | 31/32”, 1 1/8” and 1 1/2”; Stile thickness 1 3/4” |
| HANDING | Non-handed; fully field-reversible |
| POWER | Uses standard off-the-shelf AA batteries, choice of advanced Power-Saver modes, for longest battery life, from 3 to 4 years or 100,000 cycles, typ., depending on door use |
| KEYPAD | All-metal, vandal-resistant 12-button keypad supports 3-6 digit PIN codes, and multilevel user hierarchy (master, manager, supervisor, basic users) |
| CYLINDER | Mortise Cylinder, 1 1/4” supplied. |
| FINISH | US10B Oil Rubbed Bronze |
| GATEWAYS | Choice of networking options for any application, control 63 locks per Gateway and 2016 Locks per system. |
| COMPATIBLE GATEWAYS | AL-IME2, AL-IME2-80211, AL-IME2-POE |
| SOFTWARE | Free Windows-based software for programming, entering users and receiving time-/date-stamped (by user) 35K event audit trail from the lock, Alarm Lock |
| WEATHERPROOF | -31˚ to +151˚F (-35˚ to +66˚C) |
Return Policy: We accept returns on unopened products up to 30 days after the date of purchase. We do not accept opened/damaged/defective goods. To return affected items please contact Alarm Lock directly at 1-800-645-9440 or visit their support page here
