Alarm Lock Trilogy - DL3500CRL - Classroom Mortise Lever Set w/ High Capacity Audit Trail - US10B - Durondic Bronze - Left Handed - Grade 1
Alarm Lock Trilogy - DL3500CRL - Classroom Mortise Lever Set w/ High Capacity Audit Trail - US10B - Durondic Bronze - Left Handed - Grade 1
Alarm Lock Trilogy - DL3500CRL - Classroom Mortise Lever Set w/ High Capacity Audit Trail - US10B - Durondic Bronze - Left Handed - Grade 1
Alarm Lock Trilogy - DL3500CRL - Classroom Mortise Lever Set w/ High Capacity Audit Trail - US10B - Durondic Bronze - Left Handed - Grade 1
Alarm Lock Trilogy - DL3500CRL - Classroom Mortise Lever Set w/ High Capacity Audit Trail - US10B - Durondic Bronze - Left Handed - Grade 1

Alarm Lock Trilogy - DL3500CRL - Classroom Mortise Lever Set w/ High Capacity Audit Trail - US10B - Durondic Bronze - Left Handed - Grade 1

$836.00 $1,590.00
Availability: In Stock
Wishlist
  • Product SKU: ALL-DL3500CRL-10B
  • NSID: 900
  • ALL-DL3500CRL-10B
    Item number: 6795

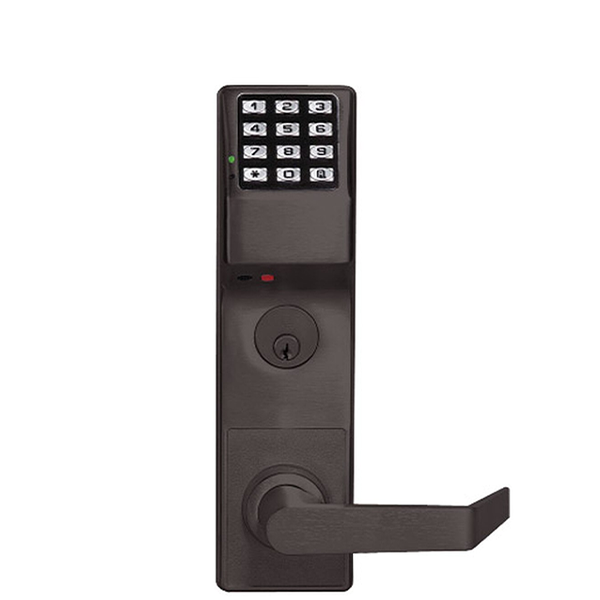

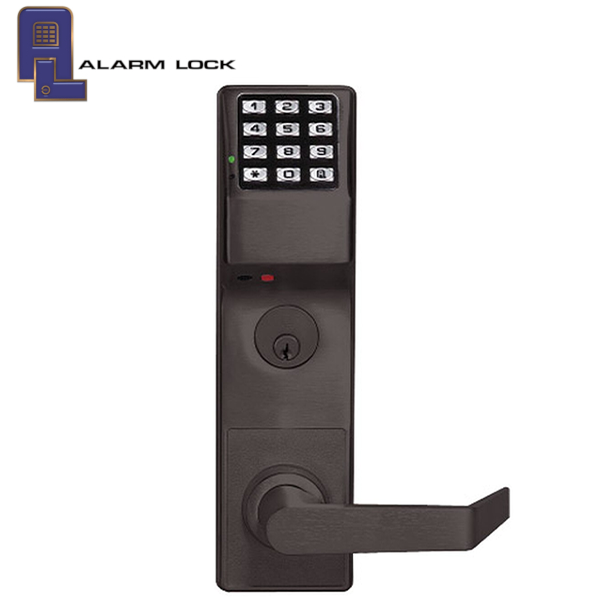

    DL3500CRL-US10B Alarm Lock Trilogy Series Standalone Digital Mortise Keyless Lock Straight Leverset in Duronodic Finish

    The Trilogy DL3500 Series is Alarm Lock's one of the most popular standalone pushbutton Mortise lock with Grade 1 durability. These durable electronic digital locks are available in indoor and outdoor models. The clutch mechanism permits the turning lever without retracting the latch and reduces the stress on lock bodies and spindle. It has an outside lever free turning in the locked position. While entering the access code, key bypass or remote bypass allows the lever to retract the latch. Its inside lever always instant egress. It saves all the downtime and 1/2 the cost of hardwired systems.

    • T3 advanced digital lock with audit trail; high capacity audit trail lock
    • Weather-resistant

    $836.00
    Get it shipped
    Today!
    Order within
    00 Hrs
    00 Mins
    00 Secs

Specifications

LOCK FUNCTION Classroom Mortise Lever Lock w/ High Capacity Audit Trail
OPERATION The clutch mechanism permits turning the lever without retracting the latch and reduces stress on lock bodies and spindle. Outside lever free turning in the locked position. Entering access code, key bypass, or remote bypass will allow the lever to retract the latch. Inside lever always instant egress
DOOR THICKNESS 1 5/8" to 1 7/8."
BACKSET 2 3/4" Standard.
KEYPAD All metal, 12 buttons programmable for multi-level access functions including group or individual user codes, master and management codes, passage and emergency or service code, lockout and remote override capability, and allowable entry time from 5 to 20 seconds. 4 Different keypad tones and keypad may be silenced
CYLINDER 1 3/8" (3.5cm) Mortise Cylinder supplied. Will accept 1 3/8" to 1 1/2" (3.5-3.8cm) Mortise Cylinder
CORE Accepts 6 & 7 Pin cylinder from Best, Falcon, Arrow, KSP, Medeco Keymark, and Kaba Peaks
LATCHBOLT Stainless Steel Latchbolt with 3/4" (1.91cm) projection and deadlocking latch.
STRIKE 1 1/4" x 4 7/8" strike included
HANDING Left-handed, reversible in the field
LEVER TRIM Aluminum door retrofit outside trim for Adams Rite 1850, 1950, 4710, 4070, 4730, 4900
FINISHES US10B Durondic Bronze
USER CODES keypad supports 300 codes, Master, Management, Supervisor & Basic User. 500 event schedule, real-time clock & 40,000 event audit trail
CAMS Straight Cam supplied
POWER 5 AA alkaline batteries are now rated at 200,000 cycles, supplied. Audible low battery alert, visual and audible entry indicators, unique Flex Drive® motor
DOOR PREP Standard ANSI A115 Series Prep, modified by adding additional through-bolt holes
COMPLIANCES Grade 1, heavy-duty cylindrical lockset, UL listed and FCC certified. ADA compliant lever sets


Return Policy: We accept returns on unopened products up to 30 days after the date of purchase. We do not accept opened/damaged/defective goods. To return affected items please contact Alarm Lock directly at 1-800-645-9440 or visit their support page
here

Downloads:
Brochure
Specifications
