Alarm Lock Trilogy - ETDLNS1G - Networx Panic Exit Trim Keypad Digital Lock w/ Audit Trail - Von Duprin 9900 Prep - Satin Chrome

In Stock
NSID: 67893

Get it shipped ! Order within:

Get it shipped ! Order within:

Get an Extra Hour with

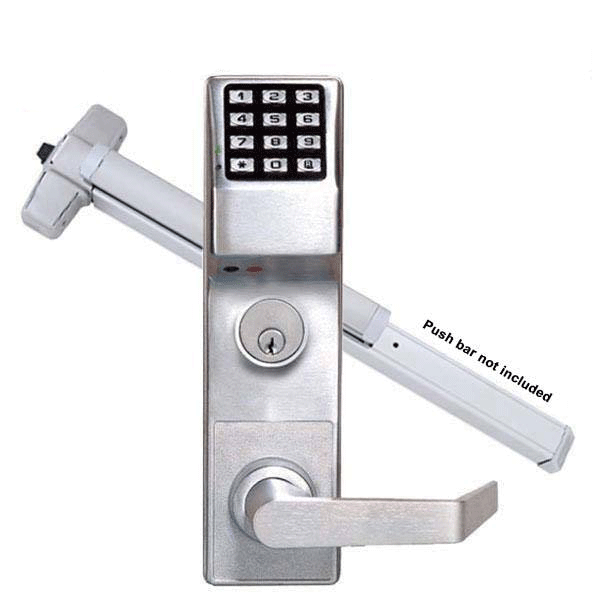

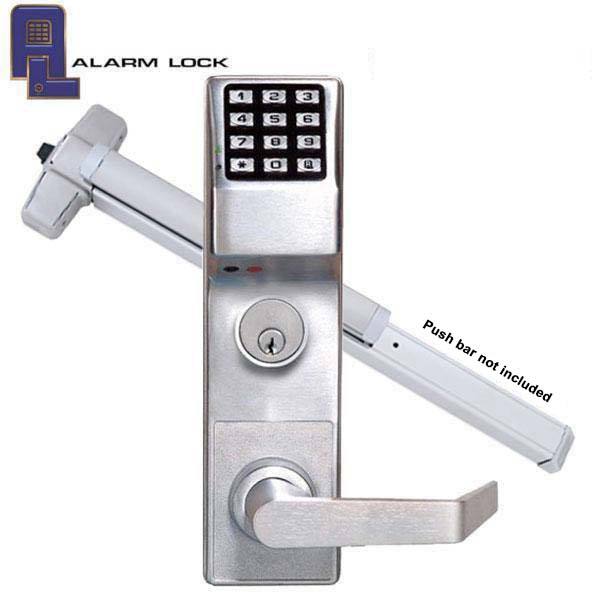

Trilogy ETDLNS1G Panic Exit Trim Keypad Digital Lock Adapter kit and Cylinder, SC1 Straight Lever, Exit Trim, Door Thickness 1-3/4" x 1/8". Prepped for Von Duprin 99 exit device. Trusted by leading retailers, firms, schools, hospitals, and airports.

Audit Trail: Locks’ entry activity log can be polled to the Data Transfer Module (AL-DTMII), any PC using Alarm Lock’s DL-WINDOWS Software (Vsn.2.94 or higher), and/or can be on-site printed using the hand-held infrared printer (AL-IR1).

Prepped for Von Duprin 9900 Push Bar (Not Included)

  • Field-proven clutch Mechanism ensures long life and durability
  • Fingertip and/or Windows Programmable
  • 2000 User Codes: Master, manager, supervisor and users
  • Real Time Clock for up to 40,000 Event Time/DateStamped Audit Trail
  • Up to 500 Lock/Unlock Schedules (with Time Zone Support)
  • Rugged 12-Button Weather-Resistant Metal Keypad
  • Non-Handed; Fully Field Reversible
  • Adaptable to most major manufacturers of standard RIM and IC RIM Cylinders (See separately ordered Cylinder Adapter Kit)
  • Battery operated; uses 5 AA batteries
  • Battery pack mounts to interior door. Located over or under panic bar (position dependent upon exit device manufacturer).
Call 1-800-878-6604 for Bulk / Dealer Pricing!


LOCK FUNCTION Panic Exit Trim Keypad Digital Lock w/ Audit Trail
DOOR THICKNESS 1-3/4" x 1/8" standard.
HANDING Non-Handed; Fully Field Reversible
CYLINDER Uses standard rim cylinder to operate key override function
INCLUDED: Adapter Kit
KEYWAY Schlage SC1 Keyway
KEYPAD Weather-resistant all-metal, 12 buttons. All functions programmable through the keypad
USERS 5000 User Codes: Master, manager, supervisor, and users. Real-time clock for up to 40,000 event time/date-stamped audit trail. Up to 500 locks/unlock schedules (with time zone support)
POWER 5 AA alkaline batteries (included)


Trilogy Exit Spec Sheet
