Alarm Lock Trilogy - ETDLS1G - Keypad Digital Lock w/ Audit Trail - for M9900 Panic Exit Bar - 26D - Satin Chrome

In Stock
SKU: ALL-ETDLS1G/26DM99K
NSID: 48935

Get it shipped ! Order within:

Get it shipped ! Order within:

Get an Extra Hour with

$936.71
$1,550.00
$936.71

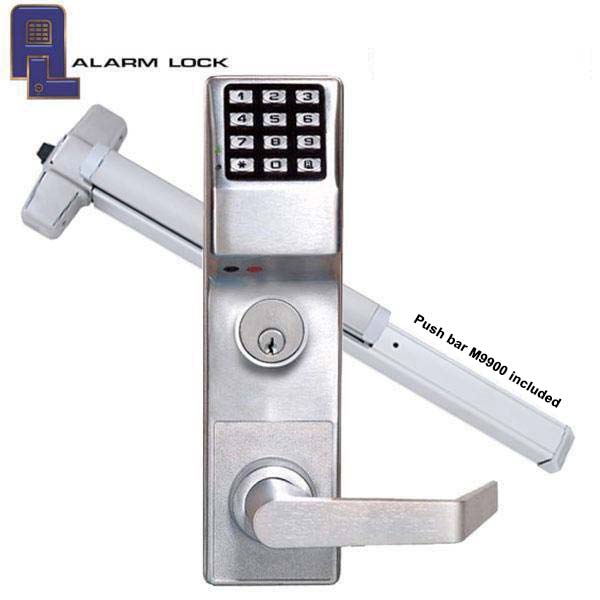

This is a kit made up of battery-operated Trilogy outside trim as well as a Marks M9900 panic device. ETDLS1G also works with Von Duprin 99, Corbin ED5000, Yale 7100, Dorma 9300, Arrow 3800, Sargent 8888, Precision 1100, 2100 & Cal Royal 9800, Hager 4500 series panic devices.

Kit Includes:

  • ETDLS1G Keypad Digital Lock
  • M9900 26D Exit Device

Call 1-800-878-6604 for Bulk / Dealer Pricing!

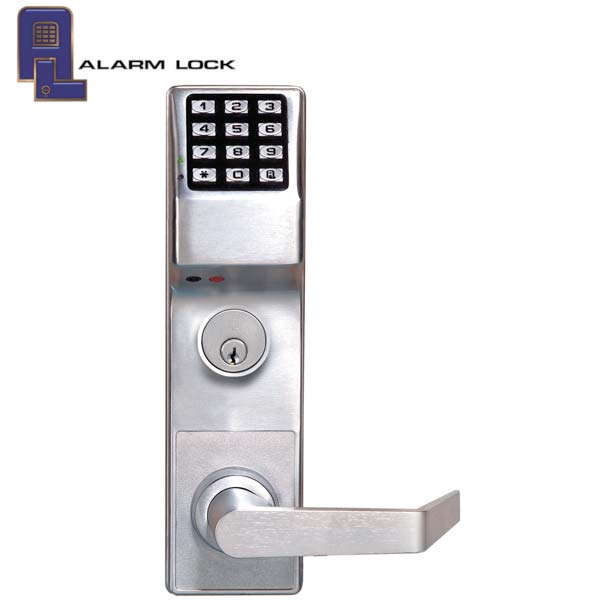

ETDLS1G Keypad Digital Lock SPECIFICATIONS

LOCK FUNCTION

Keypad Digital Lock w/ Audit Trail
OPERATION The clutch mechanism permits turning the lever without retracting the latch and reduces stress on lock bodies and spindle. Outside lever free turning in the locked position. Entering access code, key bypass, or remote bypass will allow the lever to retract the latch. Inside lever always instant egress

DOOR THICKNESS

The standard model fits 1 5/8" to 1 7/8"

CYLINDER

Use standard rim cylinder to operate key override function

USERS

Up to 5,000 3-5 digit codes. Master, Managers, Basic users. 500 scheduled events and 35,000 event audit log.

KEYPAD

All metal, 12 buttons programmable for multi-level access functions including group or individual user codes, master and management codes, passage and emergency or service code, lockout and remote override capability, and allowable entry time from 5 to 20 seconds. 4 Different keypad tones and keypad may be silenced

POWER

4 C-cell batteries (included) mounted on the inside of the door

HANDING

Non-Handed
WEATHERPROOF -31 degree to +151 degree F (-35 degree to +66 degree C)

FINISH

26D Satin Chrome

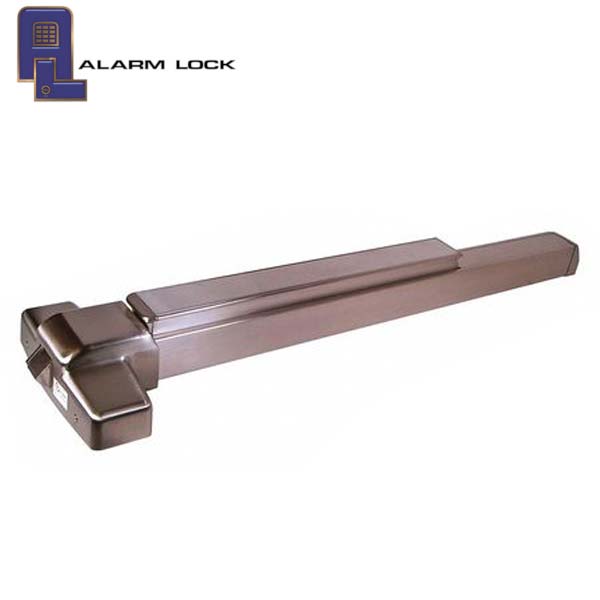

M9900 Exit Device SPECIFICATIONS
M9900 Exit Devices from Marks USA offer a simple, heavy-duty, easily installed solution where high-quality panic & fire-listed hardware is needed. These extremely durable, Grade 1 exit devices are perfect for high-impact applications such as schools, universities & other institutional or commercial buildings, and retrofit all popular preps. The heavy-duty cast chassis provides superior durability, while the smooth reduced projection touch bar assembly minimizes catch hazards. To help alleviate the problem of end caps breaking off due to abuse from carts, they have a mitered steel flush-mounted Panic Protector End Cap.

  • Marks Lifetime Mechanical Warranty
  • 3 Hour Fire Rated Dead Latch Bolt

    Return Policy: We accept returns on unopened products up to 30 days after the date of purchase. We do not accept opened/damaged/defective goods. To return affected items please contact Alarm Lock directly at 1-800-645-9440 or visit their support page here
