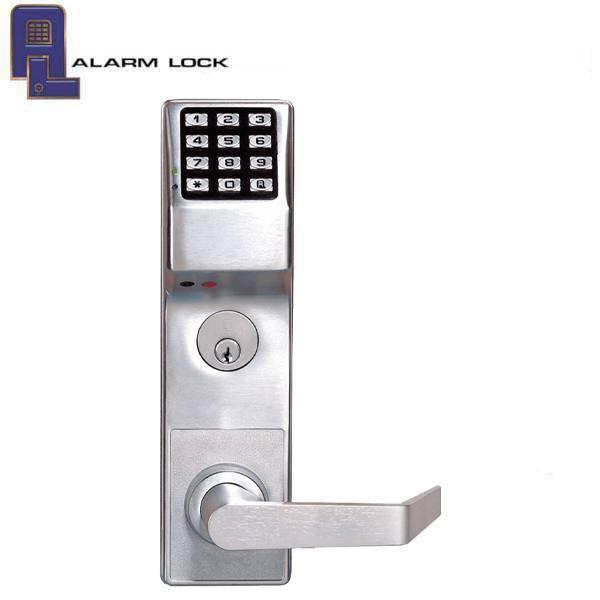

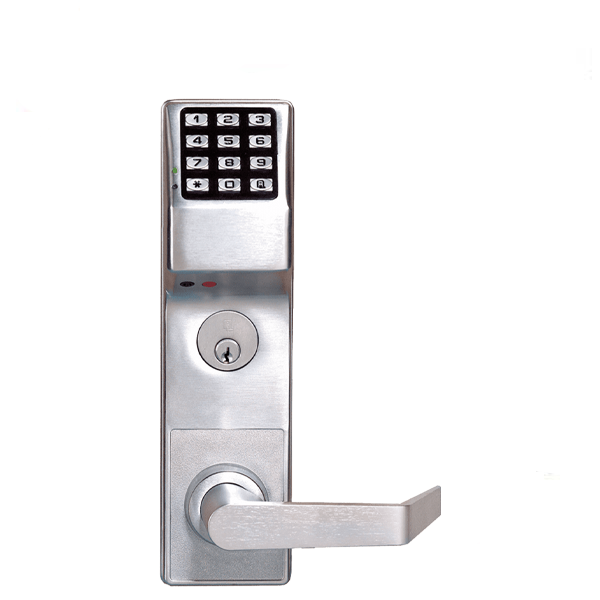

Alarm Lock Trilogy - ETDLS1G - Keypad Digital Lock w/ Audit Trail - Straight Lever - for Sargent 88 Panic Exit Bar - 26D - Satin Chrome
Available to Order
SKU:
ALL-ETDLS1G/26DNS8
NSID:
79245
- $995.65
-
$1,944.78 - $995.65
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
The Alarm lock includes original standalone and new wireless networking trilogy network access locks, featuring global lockdown in seconds. All Trilogys feature the same rugged dependability and tool-free keypad programming, with cylindrical models boasting and are certified to Grade 1 BHMA. It is a cost-effectively and dependable wireless access control a door at a time, with a field-proven access solution and with a consistent model for every door type in a facility.
Features:
- The clutch mechanism ensures long life and durability
- Fingertip and/or windows programmable
- 2000 user codes: master, manager, supervisor, and users
- Real-time clock for up to 40,000 Event Time/Date-Stamped audit trail
- Up to 500 lock/unlock schedules (with time zone support)
- Rugged 12-button metal keyboard
- Non-Handed; Fully field reversible
- Adaptable to most major manufacturers of standard RIM and IC RIM cylinders
- Supports New style Sargent 88
- Battery-operated; uses 5 AA batteries
- Door Thickness - 1-3/4" standard
- Non-handed, Field-Reversible
- Only compatible with Sargent 8800 RIM panic bars
Details:
- Operation - Clutch mechanism permits turning lever without retracting latch and reduces stress on the spindle. Entering the access code, presenting the PROX card or key bypass, or remote bypass will allow the lever to retract the latch. Inside panic bar always provides instant egress. (Temperature Range - +150°F to -20°F.)
- Keypad - Vandal-resistant all metal, weather-resistant 12-button programmable for multi-level access functions including group or individual user codes, master and management codes, passage and emergency or service code, lockout and remote override capability, and allowable entry time for 5 to 15 seconds. (Completely encapsulated circuit board hermetically sealed from weather and elements.)
-
Audit Trail - Locks' entry activity log can be polled to the Data Transfer Module (AL-DTMII), any PC using Alarm Lock's DL-WINDOWS Software (Vsn. 2.94 or higher), and/or can be on-site printed using the hand-held infrared printer (AL-IR1).
Downloads:
