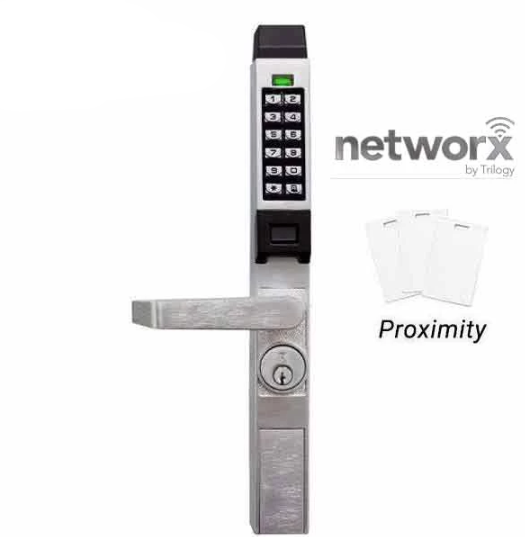

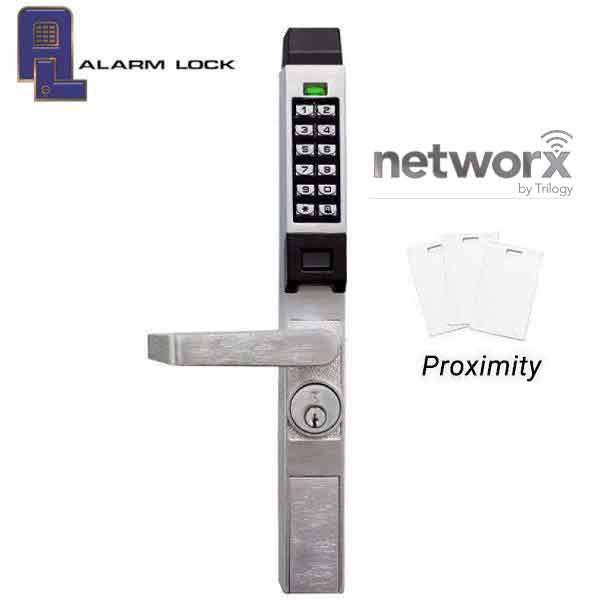

The Trilogy PDL1300-NW Narrow-Stile Digital Networx PROX Lever Lock w/ Wireless Access

The Trilogy Narrow Stile Keypad Lever Lock with Audit Trail delivers trusted Trilogy® keyless access control for any narrow-stile compatible door. Featuring a weatherproof, all-metal, and vandal-resistant design, it is built for long-lasting durability in demanding environments. This lock provides convenient features such as automatic locking or free passage scheduling, emergency global lockdown in seconds, and exceptional battery life. The DL1300 series is a rugged and advanced entry solution equipped with multiple programmable options, including audit trail functionality for enhanced security and access management.

  • Built-in Proximity Reader: Easy Tap & Add batch prox ID card enrollment mode allows many cards to be quickly added without PC –also– downloadable from PC or prox enroller tool
  • Features Alarm Locks Networx connectivity so you can communicate with up to 63 different locks via a gateway connection
  • Include a mortise cylinder that has 2 keys included
  • More Information Below
Call 1-800-878-6604 for Bulk / Dealer Pricing!



SPECIFICATIONS:

LOCK FUNCTION Entrance Narrow-Stile PROX Keypad Lever Lock w/ Audit Trail
DOOR THICKNESS Only Stile thickness 1 ¾"
BACKSET 3 1/32”,1 1/8’ and 1 1/2”
HANDING Non-handed; fully field-reversible
POWER Long-life, battery-operated for 80,000 to 100,000 Cycles respectively, typical on two 3-Volt 123A Lithium batteries, supplied; low battery alert
CYLINDER 6-pin standard mortise cylinder in SC1 Keyway supplied (Supports 1-1/2" 1-3/8”)
KEYS 2 Keys Included
CAMS Cams supplied works with generic Alarm Lock cylinder
PROGRAMMABLE Yes
USER CODES support 2000 users by PIN, HID Prox ID cards, or fobs. PC programming/reporting and features 40,000 events audit trail by the user and 500 events schedule/real-time clock (e.g. lock/unlock by time)
PROXIMITY FREQUENCY 125 kHz
GATEWAYS & COMPATIBILITY Choice of networking options for any application, control 63 locks per Gateway and 2016 Locks per system. Compatible with AL-IME2, AL-IME2-80211, AL-IME2-POE
SOFTWARE Free Windows-based software for programming, entering users, and receiving time-/date-stamped (by user) 35K event audit trail from the lock.
WEATHERPROOF -31˚ to +151˚F (-35˚ to +66˚C)
CONSTRUCTION Zinc Alloy, Vandal Resistant
FINISH 26D Satin Chrome



Return Policy: We accept returns on unopened products up to 30 days after the date of purchase. We do not accept opened/damaged/defective goods. To return affected items please contact Alarm Lock directly at 1-800-645-9440 or visit their support page here
