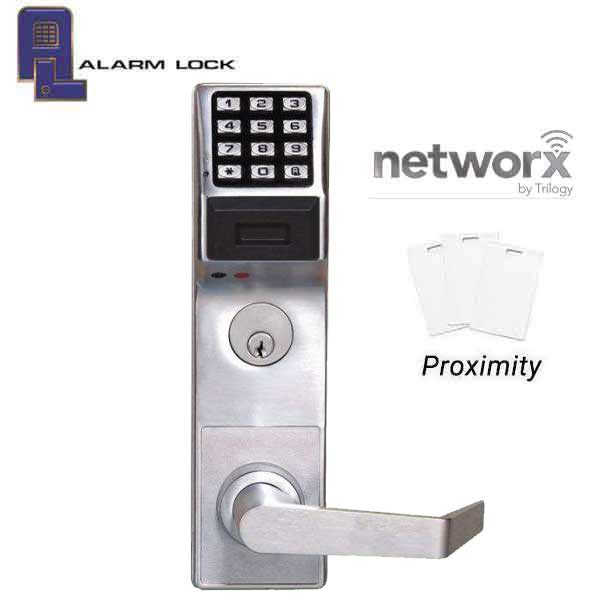

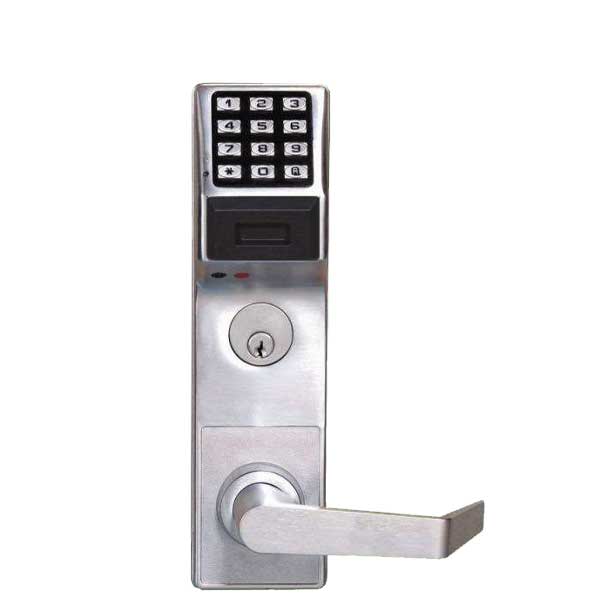

*Discontinued* Alarm Lock Trilogy - PDL6500 - Digital Mortise Lever Lock w/ Audit trail - Networx - Right Handed - 26D - Satin Chrome
- $1,197.08
-
- $1,197.08
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
PDL6500-26D Alarm Lock Trilogy Series Networx Digital Mortise Keyless Lock Straight Leverset in Satin Chrome Finish
The Trilogy PDL6500 Series Networx Locks eliminate door-to-door programming and audit trail retrieval by communicating wirelessly via Ethernet or 802.11B/G, while providing all original Trilogy standalone lock's functionality. It provides a quick, easy and economical access system with advanced features and functions like various automatic schedules, event logs, and support for up to 5000 users with 3-6 digit numeric PIN codes and prox ID card users. However, this lock has no wires to run and no access panels or power supplies to buy or install.
- $1,197.08
-
- $1,197.08
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
Description
x| LOCK FUNCTION | Entrance Networx Digital Lever Lock w/ Audit Trail & wireless/ethernet feature |
| OPERATION | The clutch mechanism permits turning the lever without retracting the latch and reduces stress on lock bodies and spindle. Outside lever free turning in the locked position. Entering access code, key bypass, or remote bypass will allow the lever to retract the latch. Inside lever always instant egress |
| NETWORX | Audit trail retrieval and lock management by communicating wirelessly via Ethernet or 802.11B/G gateway |
| DOOR THICKNESS | 1 5/8" to 1 7/8." |
| BACKSET | 2 3/4" Standard |
| KEYPAD | All metal, 12 buttons programmable for multi-level access functions including group or individual user codes, master and management codes, passage and emergency or service code, lockout and remote override capability, and allowable entry time from 5 to 20 seconds. 4 Different keypad tones and keypad may be silenced |
| PROX FEATURE | The reader works with most HID Proximity cards as well as FOB's. Frequency of 125 kHz |
| USERS | Up to 5,000 3-5 digit codes. Master, Managers, Basic users. 500 scheduled events and 35,000 event audit log. |
| STANDARD KEY OVERRIDE CYLINDERS | 1 3/8" (3.5cm) mortise cylinder supplied. Will accept 1 3/8" to 1 1/2" (3.5-3.8cm) mortise cylinder |
| LATCHBOLT | Classroom function features stainless steel latch bolt with 3/4" (1.91cm) projection and deadlocking latch |
| STRIKE | 1 1/4” x 4 7/8” strike included |
| HANDING | Right Handed, Field Reversible |
| LEVER TRIM | Aluminum door retrofit outside trim for Adams Rite®️ 1850, 1950,4710, 4070*, 4730, 4900 Series |
| FINISHES | US26D satin chrome |
| POWER | 4 C-cell batteries supplied. Audible low battery alert, visual and audible entry indicators, unique Flex Drive® motor |
| DOOR PREP | Standard ANSI A115 mortise prep, modified by adding additional through-bolt holes |
| WEATHERPROOF |
-31 degree to +151 degree F (-35 degree to +66 degree C) |
| COMPLIANCES | BHMA Grade 1, UL listed 10C positive pressure specification. FCC certified and ADA compliant lever sets |
Return Policy: We accept returns on unopened products up to 30 days after the date of purchase. We do not accept opened/damaged/defective goods. To return affected items please contact Alarm Lock directly at 1-800-645-9440 or visit their support page here
Downloads:
Specifications
