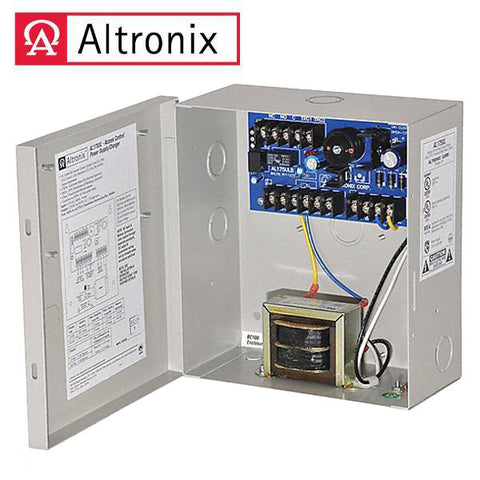

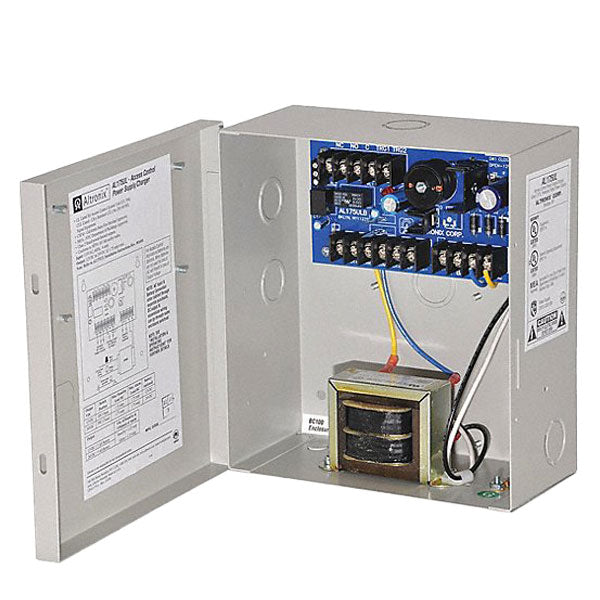

Altronix AL175UL Power Supply for Access Control
In Stock
SKU:
ALT-AL175UL
NSID:
68178
Get it shipped ! Order within:
Get it shipped ! Order within:
Get an Extra Hour with
- $195.00
-
$234.00 - $195.00
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
- Manufacturer: Altronix
- Charger for Access Control
- PN: AL175UL
Features and benefits:
Altronix AL175UL is a Two (2) Output Switching Power Supply/Charger that converts a 115VAC 60Hz input, into two (2) individually PTC protected 12VDC or 24VDC outputs.
Battery not included.
Input:
- Input 115VAC, 60Hz, 0.6A.
- Access control trigger input.
Output:
- 12VDC or 24VDC selectable outputs.
- 1.75A supply current.
- Two (2) Class 2 Rated power limited outputs.
- Fail-Safe/Fail-Secure lock output (switched).
- Auxiliary power output (unswitched).
- PTC protected outputs, rated @ 2.5A.
- Filtered and electronically regulated output.
- Short circuit and thermal overload protection.
Battery Backup:
- Maximum charge current: 400mA.
- Automatic switch over to stand-by battery when AC fails
-
Battery not included.
Supervision:
- AC fail supervision (form "C" contacts).
- Supervised Fire Alarm Disconnect (Latching w/reset or Non-Latching).
Visual Indicators:
- AC input and DC output LED indicators.
Temperature:
- Operating 0ºC to 49ºC (32ºF to 120ºF).
- Storage - 20ºC to 70ºC ( - 4ºF to 158ºF).
- Relative Humidity 85% +/- 5%.
- BTU/Hr. (approx.):
- 12VDC: 11 BTU/Hr.
- 24VDC: 22 BTU/Hr.
- System AC input VA requirement: 69VA.
Enclosure:
- Wall mount enclosure for indoor use.
- Accommodates up to two (2) 12VDC/7AH Batteries.
- Dimensions 7.5"W x 8.5"H x 3.5"D (190.5 mm W x 215.9 mm H x 88.9 mm D).
- 1/2" and 3/4" combination knockouts.
Weights (approximate):
- Product Weight: 5.1 Lbs. (3.81 kg).
- Shipping Weight: 5.6 Lbs. (4.263 kg).
