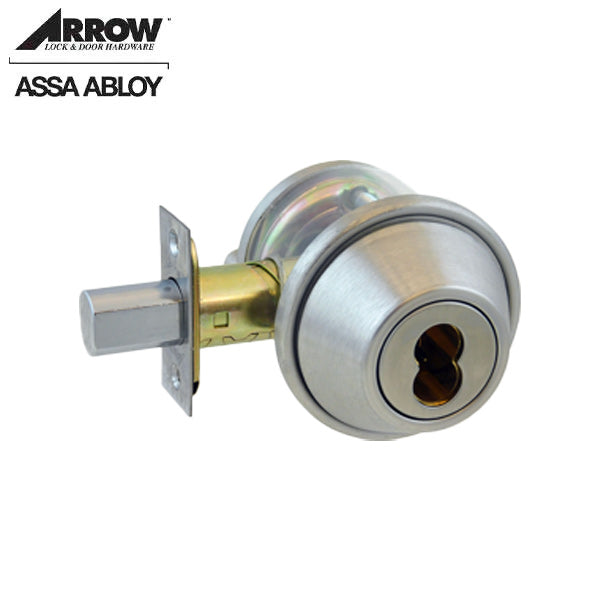

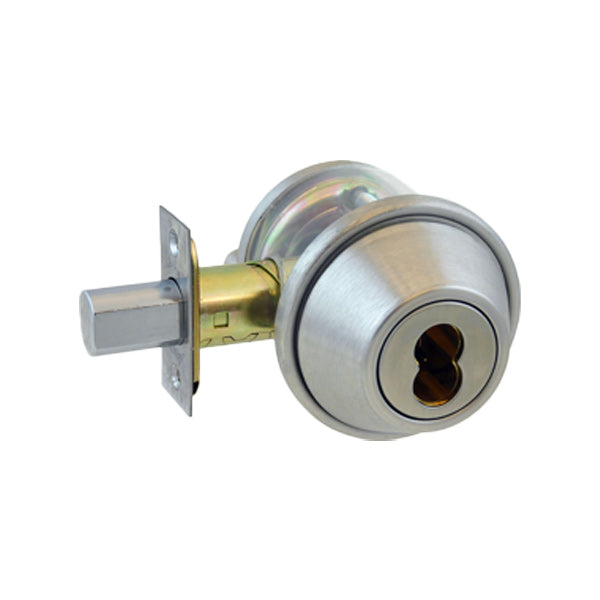

Arrow - DBX - Commercial Deadbolt - Single Cylinder - Adjustable Backset - SFIC Less Core - Satin Chrome - Grade 2
In Stock
SKU:
ARR-ARRDBX61-630-IC
NSID:
73401
Get it shipped ! Order within:
Get it shipped ! Order within:
Get an Extra Hour with
- $37.56
-
$45.07 - $37.56
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
The DBX Series deadbolt is a professional replacement Grade 2 commercial deadbolt. The flexible design offers an adjustable backset in an attractive low-profile package. The DBX is ideal for commercial common areas and residential applications
Features:
- Designed to meet ANSI A156.36, Auxiliary locks, Grade 2
- UL Listed for use on 3 hour fire doors when used in conjunction with a rated primary latching device
- Function - Single cylinder; double cylinder
- Housing - solid zinc cylinder housing
- Latch Bolt - 1" (25mm) throw brass deadbolt with hardened
- Free spinning, steel pin insert
- Deadbolt Front - 2-1/4" (57mm) x 1" (25mm). Plastic spacer supplied for 1-1/8" (27.5mm) Mortise
- Backset - 2-3/8" - 2-3/4" (60mm - 70mm), adjustable
- Door Thickness - 1-3/8" - 2" (35mm - 50mm)
- Strike - 1/32" (2.3mm) steel with wood frame reinforcer
- Cylinder - solid brass, drilled for 6 pins pinned to 5. supplied
- With 2 nickel-plated brass keys per keyed lock
- Keyway - Schlage C standard
- Cylinder Options - accepts 6 or 7-pin, small format interchangeable cores. Supplied less core.
Specifications:
| Lock Function | 61-Single Cylinder Deadbolt |
| Handing | Non-handed |
| Cylinder | 6 or 7 pins, less core |
| Door Thickness | 1-3/8"-2" (Minimum) , 1-3/4" (Maximum) |
| Backset | 2-3/8"-2-3/4" |
| Latch Backset Dim | Adjustable 2-3/8 in and 2-3/4 |
| Latch Bolt Faceplate Size | 2-1/4" x 1", 2-1/4" x 1-1/8" |
| Latch Bolt Face Type | Square Corner |
| Bolt Protection | 1 in |
| Cylinder Type | SFIC Cylinder |
| Door Bore Size | 2-1/8" |

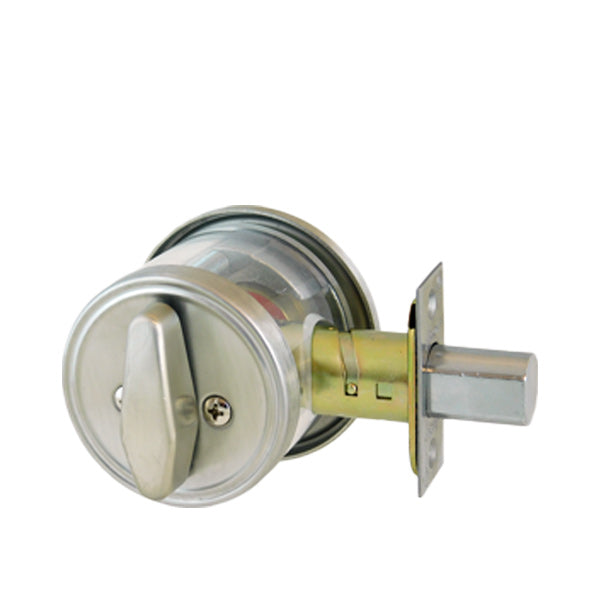

| Knob/ Lever Style | Inside Thumbturn |
| Housing | Solid Zinc cylinder housing |
| Finish | Stainless Steel |
| Grade | 2 |
| Warranty | 1 Year |
