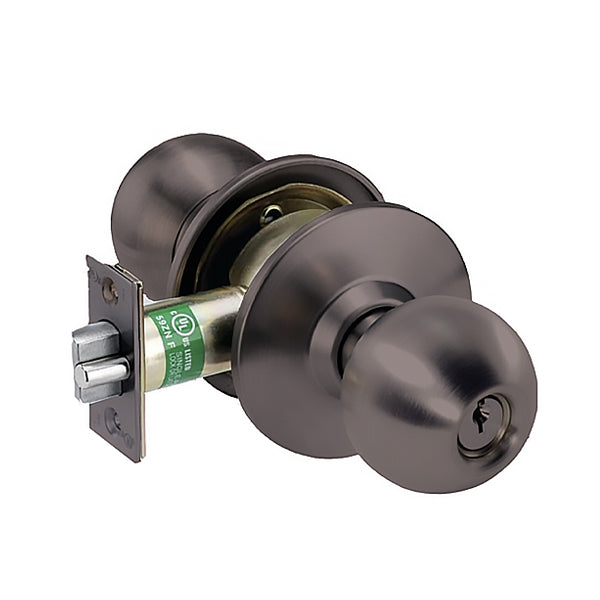

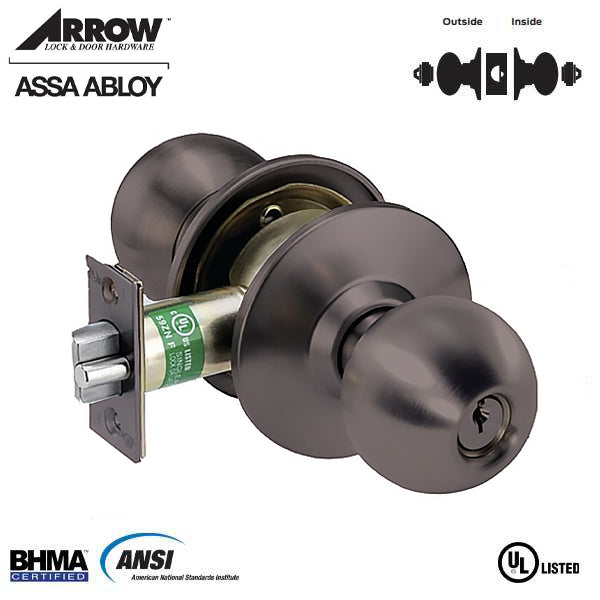

Arrow - MK33BD - Commercial Knob Set - 2-3/8” Standard Backset - Asylum / Institution- 10B - Oil Rubbed Bronze - Grade 2
Arrow - MK33BD - Commercial Knob Set - 2-3/8” Standard Backset - Asylum / Institution- 10B - Oil Rubbed Bronze - Grade 2
Arrow - MK33BD - Commercial Knob Set - 2-3/8” Standard Backset - Asylum / Institution- 10B - Oil Rubbed Bronze - Grade 2
Arrow - MK33BD - Commercial Knob Set - 2-3/8” Standard Backset - Asylum / Institution- 10B - Oil Rubbed Bronze - Grade 2
Arrow - MK33BD - Commercial Knob Set - 2-3/8” Standard Backset - Asylum / Institution- 10B - Oil Rubbed Bronze - Grade 2

Arrow - MK33BD - Commercial Knob Set - 2-3/8” Standard Backset - Asylum / Institution- 10B - Oil Rubbed Bronze - Grade 2

$129.00
Available: In Stock
Wishlist
  • Product SKU: ARR-MK33BD-10B
  • ARR-MK33BD-10B
    Item Number: 8154

    The Arrow MK Series Knobs offer the designer, architect and contractor simple solutions to accessibility requirements. Their clean designs, architectural finishes and available functions make them ideal for commercial applications where heavy duty grade one hardware may not be necessary.

    More Information Below

    $129.00
Lock Function  ANSI F87 Asylum Lock:  Deadlocking Latch Bolt Operated By Key In Lever From Either Side. Both Levers Are Always Inoperable.
Handling Reversible
Door Thickness 1-3/8" (35mm) to 1-3/4" (44mm)
Cylinder Standard : Solid brass, 6-pin, pinned 5, 2 brass keys
Backset 2-3/8" (60mm) standard
Lock Chassis Cold rolled steel with zinc dichromate finish
for corrosion resistance. Requires standard 2-1/8" (54mm) bore
through door.
Latch
Brass with 1/2" (13mm) throw. Latch housing is steel, with zinc dichromate finish for corrosion resistance.
7/8" (22mm) bore in edge of door is required
Latch Front

Standard faceplate for 2-3/8" (60mm) backset measures 2-1/4" (57mm) x 1" (25mm) with
a flat front

Strike

Standard “T” strike measures 2-3/4" (70mm) x 1-1/8" (29mm)

All strikes have a 1-1/4" (32mm) lip to center dimension

Finish  613 - 10B -Oil Rubbed Bronze
Certifications
Exceed ANSI A 156.2  Grade 2 locked lever torque requirement.
Tested to exceed 4,000,000 cycles, ANSI Grade 2 requirement
BHMA Certified
UL 3-hour Fire Rated
Manufacturer Warranty Limited lifetime mechanical warranty
