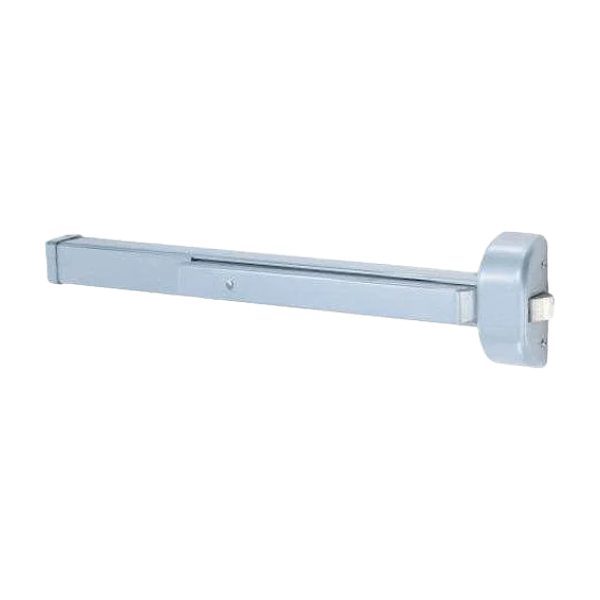

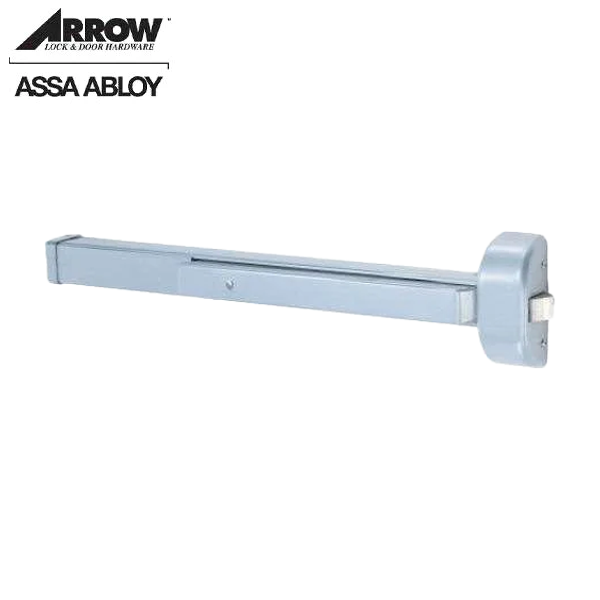

Arrow - S1250F - Rim Exit Device - for 32" - 36" Doors - Fire Rated - Aluminum Finish - Grade 1
$233.20
$291.50
Availability:
Available to Order
- Product SKU: ARR-S1250F-AL
- NSID: 37709
-
ARR-S1250F-AL
The Arrow S1250F is a value exit device that is BHMA Grade 1 Certified. The S1250F is designed to replace or upgrade existing exit devices and comes with an extended 10 year warranty.
Features
- For 1-3/4" thick wood or hollow metal doors.
- 4-1/2" minimum stile
- Non handed
- Finish, aluminum painted-689
- Hex key dogging standard
- Standard Surface Strike - S38.
- Latch bolt, 3/4" throw, stainless steel.
- 36" rail fits openings 36" to 32-1/4"
- ANSI/BHMA A156.3, Grade 1
$233.20
| Specifications | |
|---|---|
| Chassis | Non-ferrous-alloy |
| Chassis Cover | Metal |
| Door Types | 1-3/4"(44.45mm)thick wood or hollow metal |
| Door Width | 32" - 36" |
| Stile | 4-5/8" |
| Mounting | Supplied with wood and machine screws |
| Handing | Reversible |
| Dogging | Allen-type key standard |
| Latchbolt | 3/4"(19.05mm) throw, stainless steel |
| Rail Assembly | Steel |
| Strike | S646 |
| Warranty | 3 Year Manufacturer Warranty |
| Finish | AL Aluminum (Sprayed Finish) |
| Certifications | -ANSI/BHMA A156.3, Grade 1 -Underwriters Laboratories (UL and CUL) Listed for accident hazard (panic) standard. -All exit devices comply with life safety code NFPA 101 |
| Downloads |
|---|
| Data Sheet |
ARR-S1250F-AL
The Arrow S1250F is a value exit device that is BHMA Grade 1 Certified. The S1250F is designed to replace or upgrade existing exit devices and comes with an extended 10 year warranty.
Features
- For 1-3/4" thick wood or hollow metal doors.
- 4-1/2" minimum stile
- Non handed
- Finish, aluminum painted-689
- Hex key dogging standard
- Standard Surface Strike - S38.
- Latch bolt, 3/4" throw, stainless steel.
- 36" rail fits openings 36" to 32-1/4"
- ANSI/BHMA A156.3, Grade 1
| Specifications | |
|---|---|
| Chassis | Non-ferrous-alloy |
| Chassis Cover | Metal |
| Door Types | 1-3/4"(44.45mm)thick wood or hollow metal |
| Door Width | 32" - 36" |
| Stile | 4-5/8" |
| Mounting | Supplied with wood and machine screws |
| Handing | Reversible |
| Dogging | Allen-type key standard |
| Latchbolt | 3/4"(19.05mm) throw, stainless steel |
| Rail Assembly | Steel |
| Strike | S646 |
| Warranty | 3 Year Manufacturer Warranty |
| Finish | AL Aluminum (Sprayed Finish) |
| Certifications | -ANSI/BHMA A156.3, Grade 1 -Underwriters Laboratories (UL and CUL) Listed for accident hazard (panic) standard. -All exit devices comply with life safety code NFPA 101 |
| Downloads |
|---|
| Data Sheet |
