ASSA - Maximum+ Restricted - Mortise Cylinder - 1-1/4" - 626 - Satin Chrome

In Stock
SKU: ASS-R2852-5-626-COMP-KA-0A7
NSID: 1189

Get it shipped ! Order within:

Get it shipped ! Order within:

Get an Extra Hour with

$57.45
$71.81
$57.45

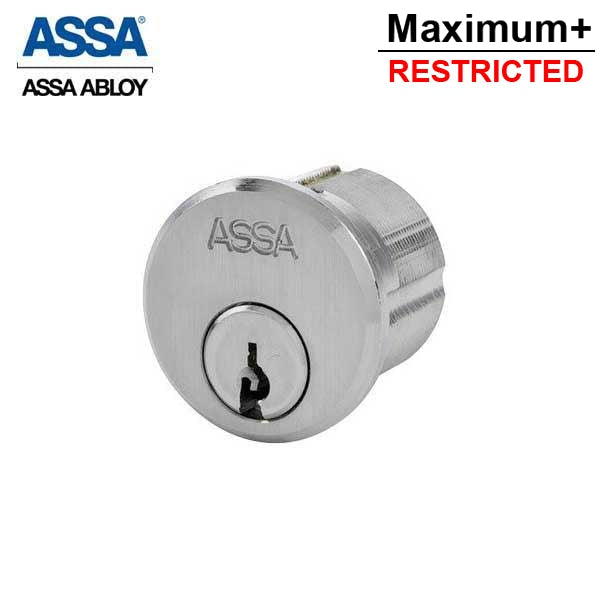

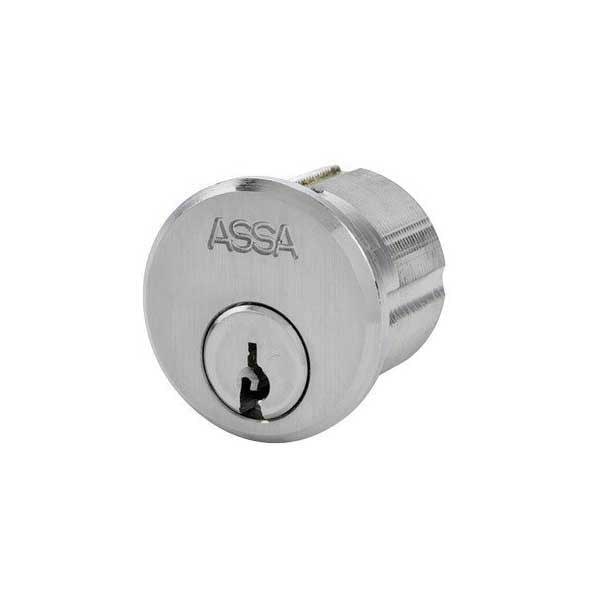

ASSA Maximum+ Restricted 1-1/4" Mortise Cylinder based on Maximum+ patented key profile. These non UL437 cylinders gives customers the flexibility to install a low cost conventional cylinder in openings that do not require a High Security lock cylinder. The Maximum+ Restricted cylinder is less expensive providing cost savings where key control is the main feature.

Restricted: Has only 1 independent locking mechanism. No Side pins.

  • Size: 1-1/4"
  • Finish: 626 US26D - Satin Chrome

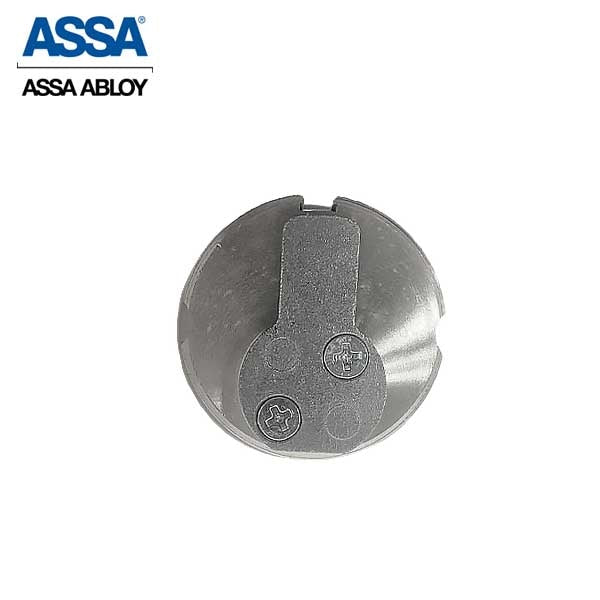

  • CAM: Yale Style

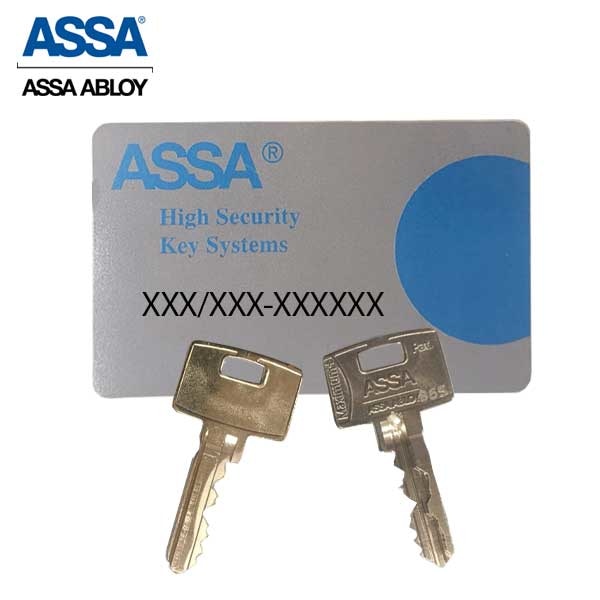

  • Includes : 2 Restricted Keys, Duplication Card and Cover Ring
  • Drill resistant cylinder housing and plug
  • Case-hardened steel inserts and stainless steel pins
  • Extremely close tolerances
  • Can be easily rekeyed in the field
  • Cylinder housing and plug are made of high quality brass
  • Stainless steel top pins
  • Bottom pins and master pins are nickel silver

Call 1-800-878-6604 for Bulk / Dealer Pricing!

Maximum+ Restricted Cylinders Benefits: Cylinder housing and plug are made of high quality brass
• Stainless steel top pins
• Bottom pins and master pins are nickel silver
• Counter mill in each chamber position to enhance pick resistance
• ASSA’s generous keying capabilities allow over 160,000 change keys under a single master key
Maximum+ Keys Benefits: • Innovative key design protected by U.S. and international utility patents
• Patented key control offers the ultimate protection from unauthorized duplicate keys
• Top cuts can be generated on standard, quality code cutting equipment
• Special key stamping and custom coining available
Certification: • ASSA’s patented key systems are legally protected against unauthorized key duplication through rights
granted by the utility patent
• Maximum+ key listed under U.S. Patent number 8,205,473
Warranty: ASSA warrants its cylinders against defective workmanship or wear resulting from defects for one year
• ASSA warrants that if a key should break under normal usage, ASSA will replace it at no charge
Technical Information: • High quality nickel silver material
• Key combination is read from tip to bow
• No. 1 cut is deepest, No. 9 is shallowest
