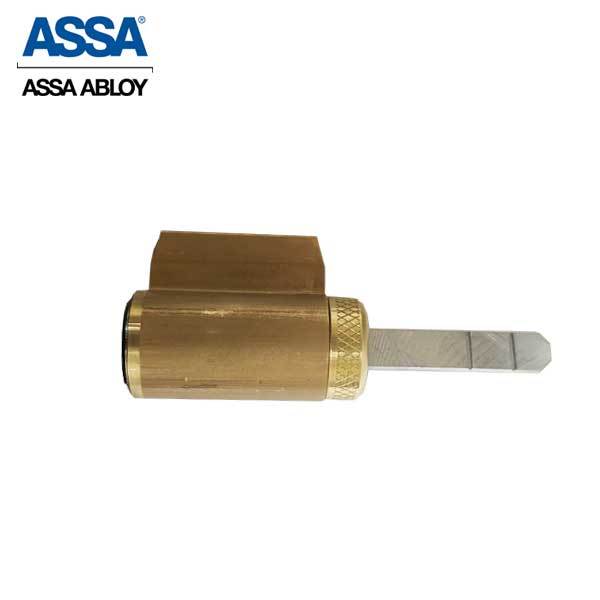

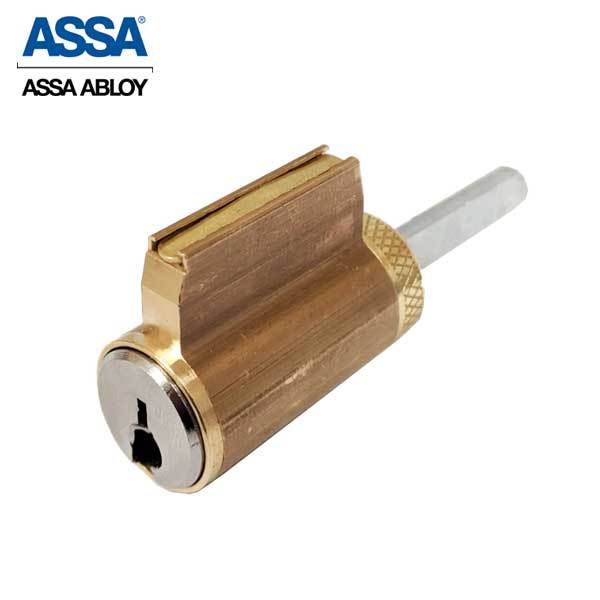

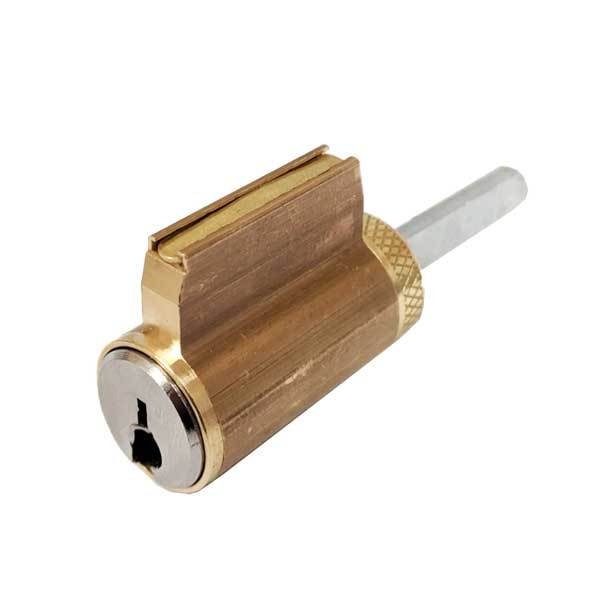

*Discontinued* ASSA - Twin Exclusive - KIK / KIL Cylinder - 626 - Satin Chrome - Schlage Levers & Knobs (Sub-Assembled)
Out of Stock
SKU:
ASS-65611-626- SUB-delete
NSID:
31205
- $73.51
-
$88.21 - $73.51
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
ASS-E65611-626-SUB
The ASSA Key in Knob/Key in Lever cylinders are designed to replace many original manufacturers’ cylinders in their locksets including Arrow, Corbin/Russwin, Falcon, Sargent, Schlage, Yale and many other manufacturers thus offering the highest level of security available on the market today. The E65611 Twin Exclusive
Features:
- Two independent locking mechanisms to ensure security and optimum pick resistance
- Inactive “false” gates in side pins designed to increase pick resistance
- Counter mill in each chamber position to further enhance pick resistance
- Cylinder shell and plug made of high quality brass
- Stainless steel top pins
- Bottom pins and master pins are nickel silver
- Extremely close tolerances
- Can be easily rekeyed in the field
- Patented key control
- Sub-Assembled - No Pins No Keys Included /Includes Sidebar but no tumbler pins.
- $73.51
-
$88.21 - $73.51
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
Description
x| Patented Keyway | Twin Exclusive |
| Keying | Sub Assembled Keyed Alike up to 12 (KA12) Keyed Different Available |
| Application | B series Deadbolts, Corbin/Russwin CL3300, CL3400, CL3600, CL3700, CK4700, CL3900 (Must use original manufacturer's tailpiece and stabilizing sleeve). CK4400 for all functions except 29, 55, & 82. Also use for A5 & N5 exit trim |
| Includes: | Includes cap, pin, spring and break-off tailpiece |
| Certification |
All ASSA Key-in-Knob/Lever cylinders are U.L. 437 listed |
| Warranty | ASSA warrants its cylinders against defective workmanship or wear resulting from defects for one year against manufacturer’s defects |
Diagram
