Autel - ADAS Bay Max 12K Lift
Available to Order
SKU:
AUTEL-AULS12ALOR1T
NSID:
79787
- $41,000.00
-
$49,200.00 - $41,000.00
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per

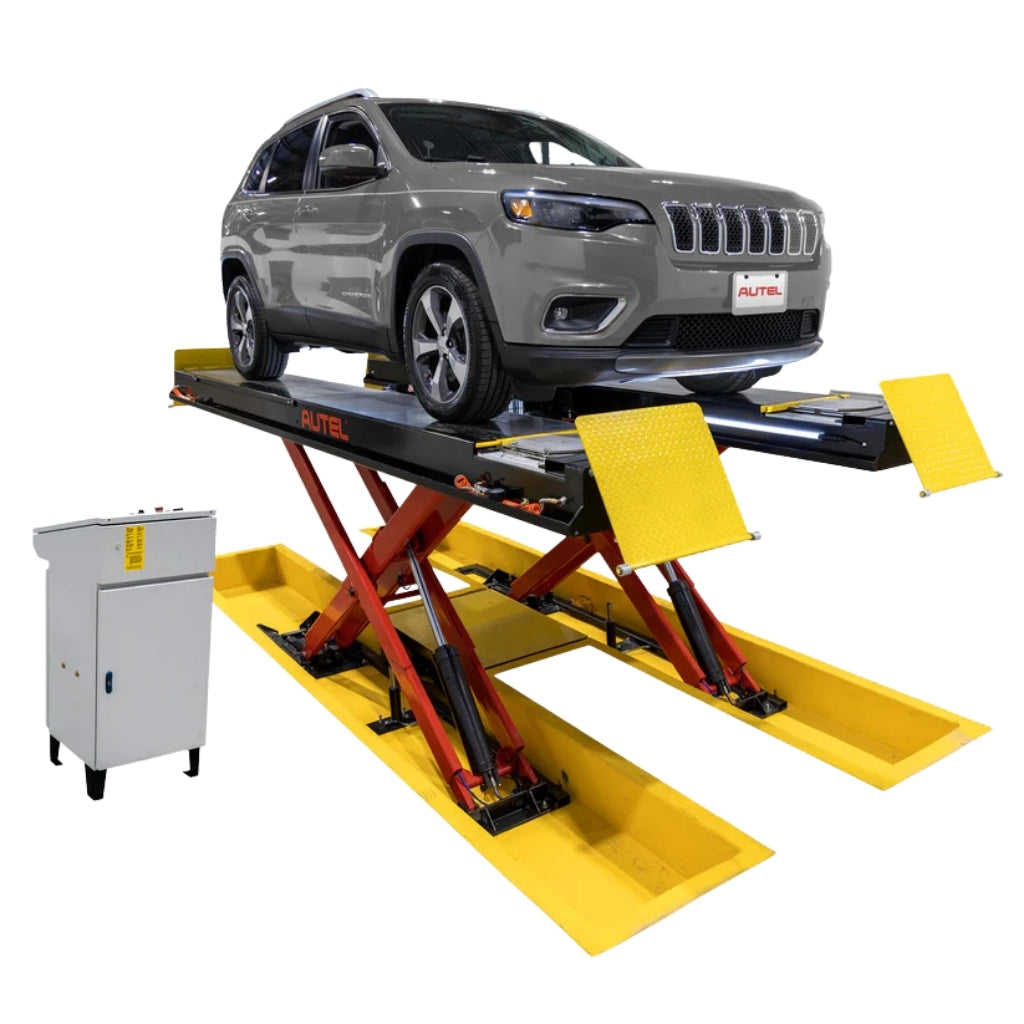

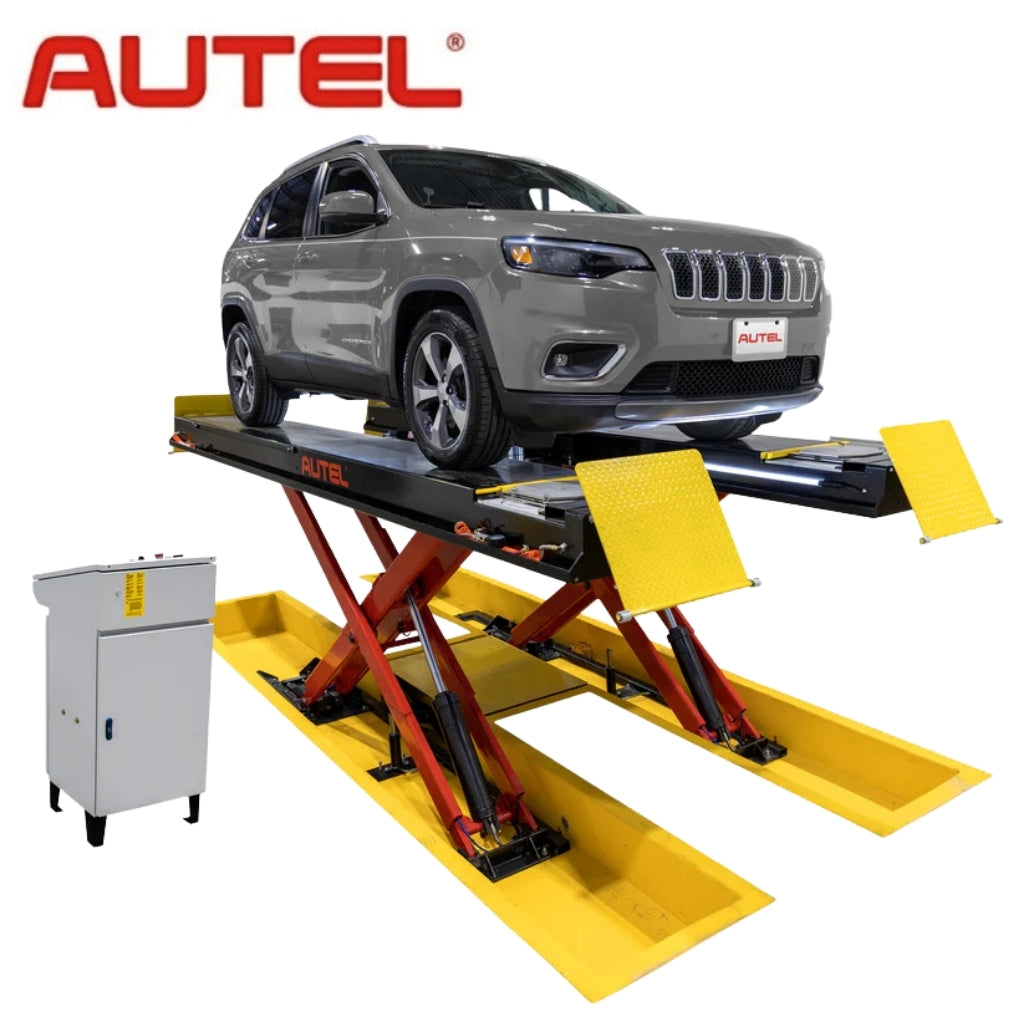

The Autel ADAS Bay Max 12K Lift is a premium, flush-mounted hydraulic scissor lift engineered for alignment, mechanical repair, and full ADAS (Advanced Driver Assistance System) calibration, all within a single bay space. It is designed to maximize usable shop floor space, make ADAS calibration easier and more precise, and reduce tripping hazards or obstructions that are common with traditional 4-post lifts or recessed pits. Its robust build, extensive safety and accuracy features, and workshop-friendly accessories make it suitable for passenger vehicles and light trucks. The lift is ALI-certified and made in North America.
Description
xFeatures:
- Hydraulic alignment scissor lift, flush-mounted with attached floor lift table.
- 12,000 lb (≈ 5.4 metric tons) lifting capacity.
- Designed for performing all-systems ADAS calibrations in addition to wheel alignment and mechanical repairs.

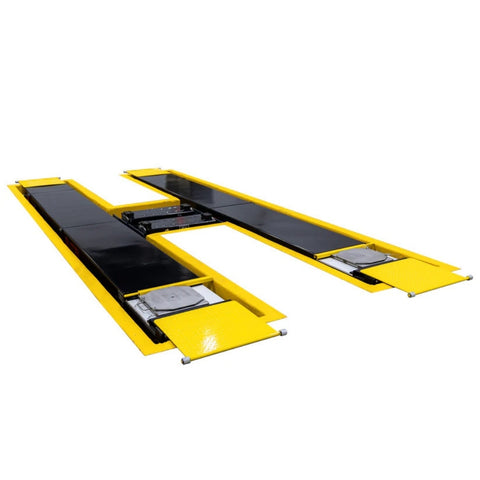

- Double-wide runways, front and rear opening, with flip-down wheel stops.
- Stainless steel front radius plates & rear slip plates, plus turn plate pocket protectors to protect paint and finish.
- Built-in air tire inflation kit at each wheel on the runways.

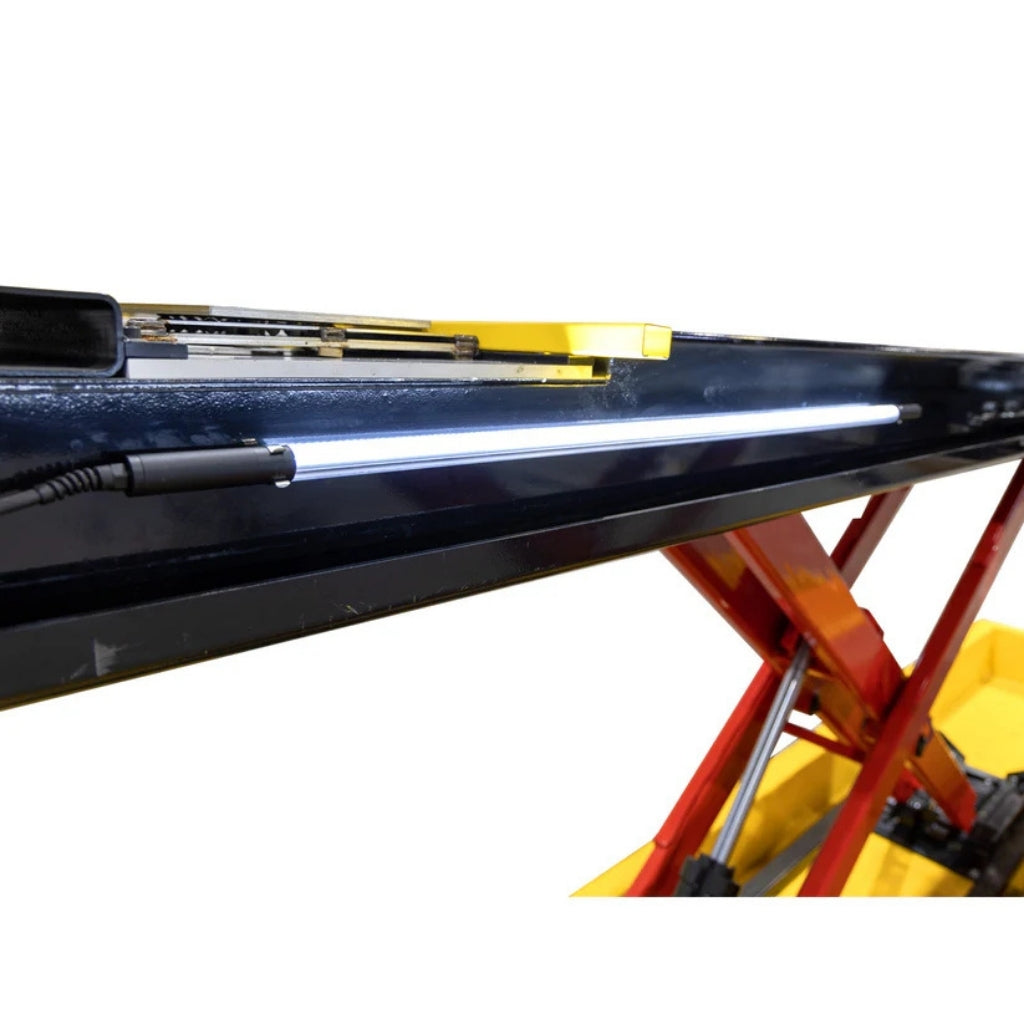

- LED undercarriage/underrunway lighting (24-inch shatterproof LED lights) with automatic shut-off.
- Low-angle approach ramps for ease of driving on/off.

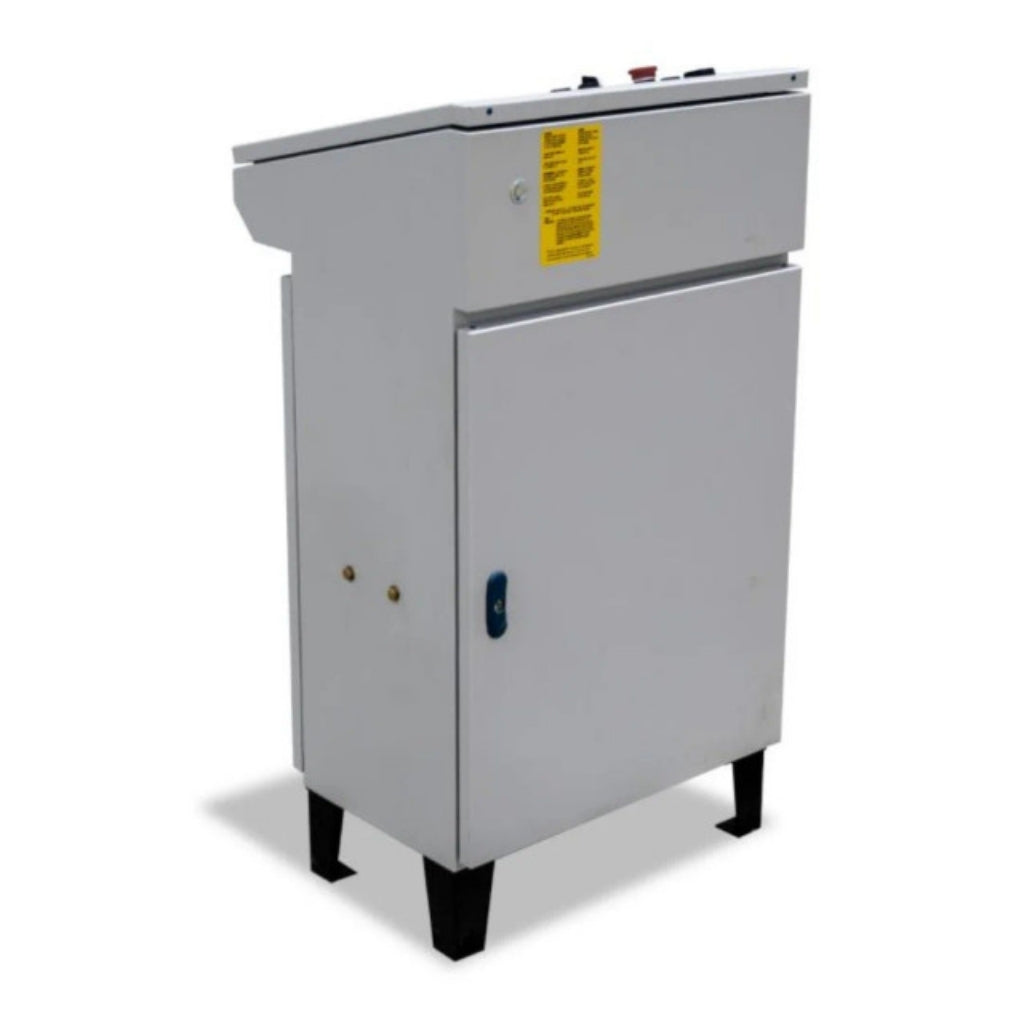

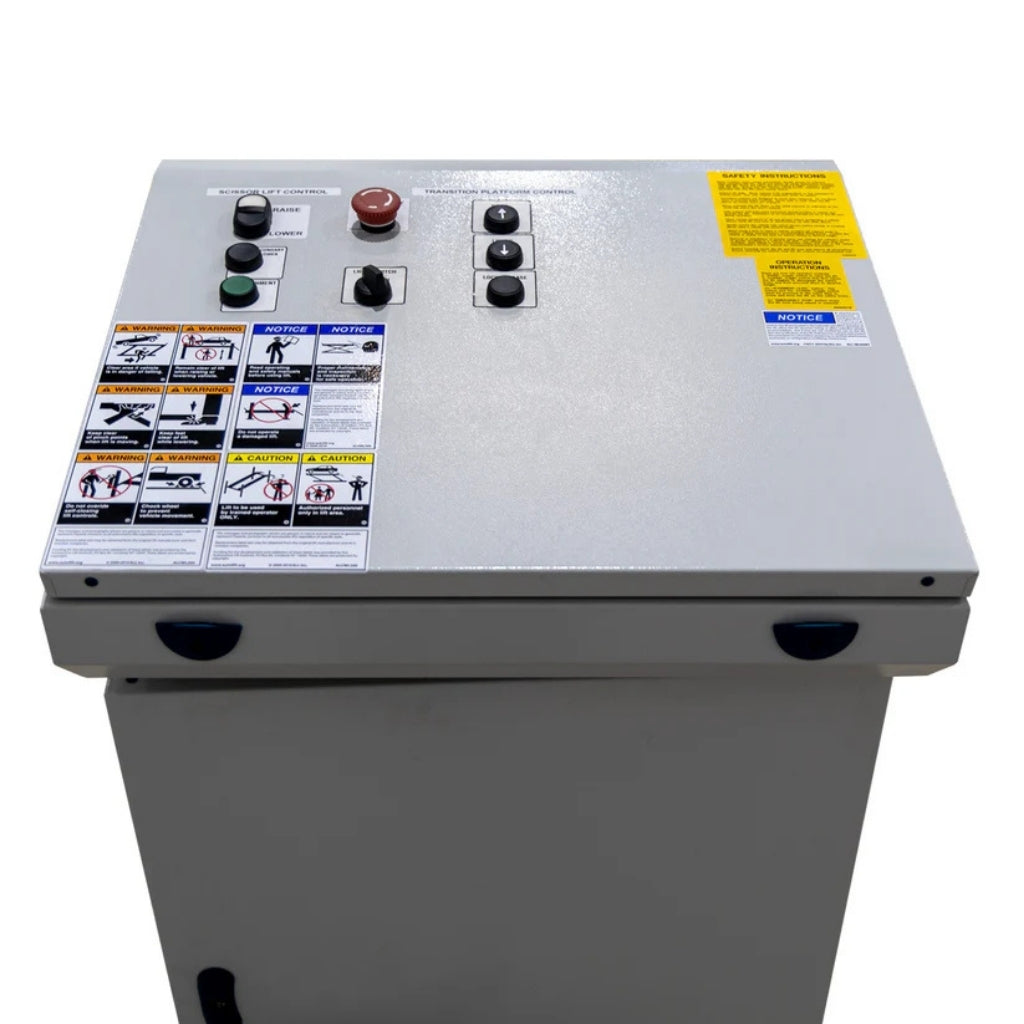

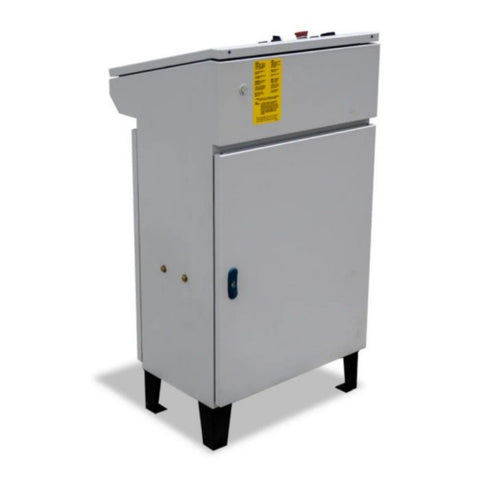

- Enclosed console control power unit.
- Premium double-baked powder coat finish and industrial grade rust proofing (Krown rust proofing).
- ALI (Automotive Lift Institute) certified.
| Specification | Details |
|---|---|
| Model Number | AULS12ALOR1T |
| Capacity | 12,000 lbs (~5.4 tonnes) |
| Overall Length | 242-3/4″ (~6166 mm) |
| Deck (Runway) Length | 185″ (~4700 mm) |
| Runway Width | 26″ (~660 mm) |
| Overall Width | 91-1/2″ (~2324 mm) |
| Width Between Runways | 41″ (~1041 mm) |
| Deck (Runway) Height (lowered) | 10-3/4″ (~273 mm) |
| Maximum Lift Height (raised) | 74″ (~1880 mm) |
| Minimum 4-Wheel Alignment Wheelbase | 84″ (~2234 mm) |
| Maximum 4-Wheel Alignment Wheelbase | 160″ (~4064 mm) |
| Maximum 2-Wheel Alignment Wheelbase | 160″ (~4064 mm) |
| Maximum Service Wheelbase | 167″ (~4242 mm) |
| Lift Time (Lower to Full Raise) | 58 seconds |
| Power Requirements | 230 V AC, 60 Hz, single phase, 25 A |
| Shipping (Weight) | 5,890 lbs (~2.7 metric tonnes) |
| Warranty (summary) | 1 year limited parts; 5 years on hydraulic jack parts; 1 year on lift table/hydraulic components; 90 days on turn plates, slip plates, bearings, air kit, LED lights |
