Autel - Alignment 12k Scissor Lift
Available to Order
SKU:
AUTEL-AULS12ALOR1
NSID:
79788
- $37,000.00
-
$44,400.00 - $37,000.00
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per

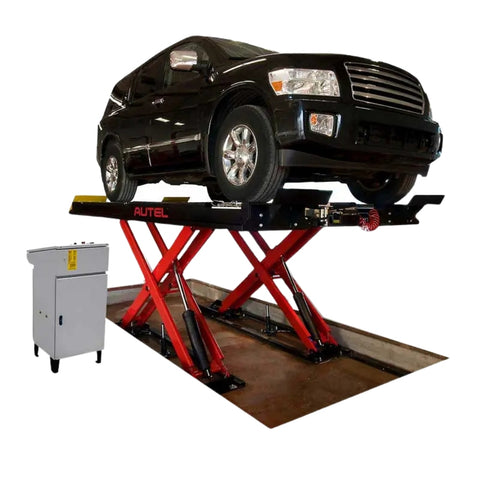

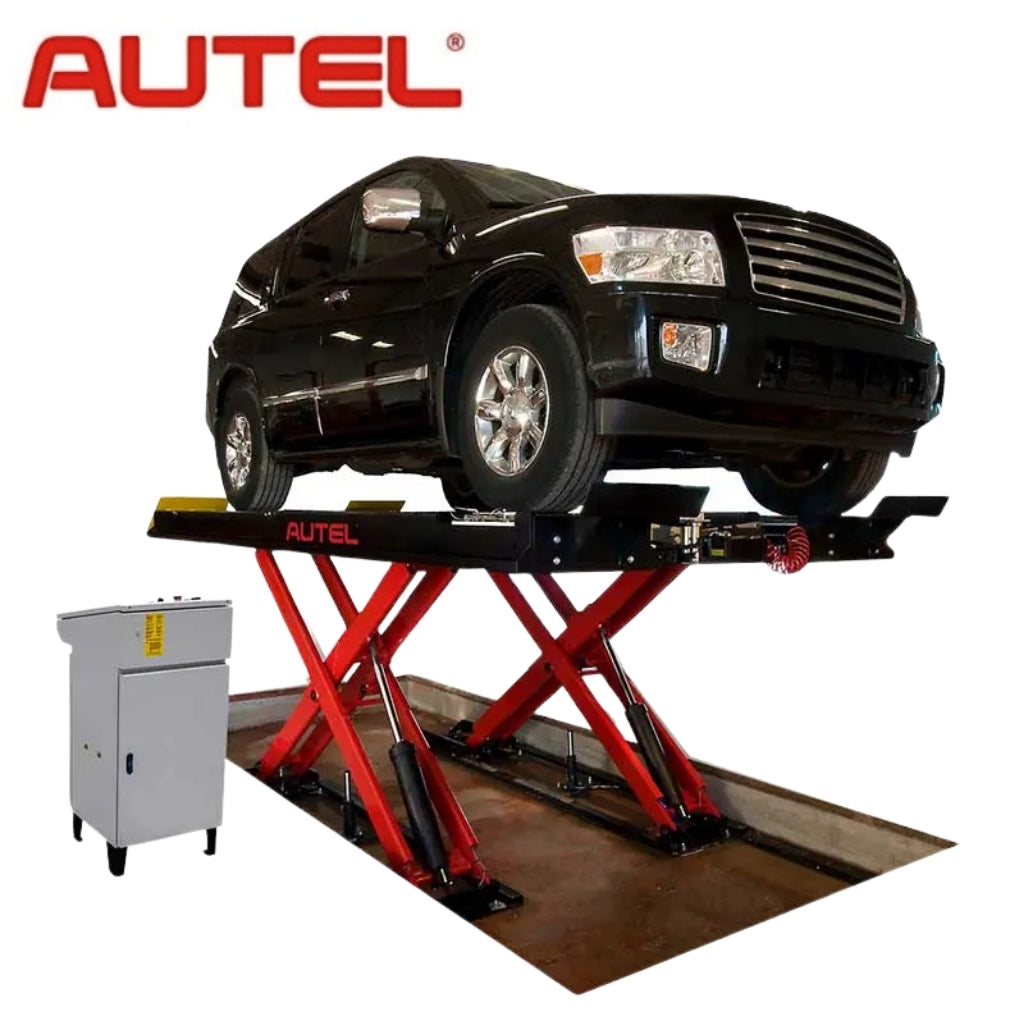

The Autel Alignment 12k Scissor Lift is a high-capacity, flush-mounted hydraulic scissor lift designed for alignment, ADAS calibration, and general service on passenger vehicles and light trucks. With a 12,000-lb lifting capacity, the lift combines heavy-duty structural design, ease of access, and features specifically built for alignment and calibration precision.
Description
xFeatures:
- Flush-mounted hydraulic scissors for a clean floor profile and flush approach ramps.
- Dual runways (front and rear opening) with flip-down wheel stops for safe positioning.
- Built-in jacking beams (approximately 6,000-lb capacity per beam for the 12K model) to lift individual wheels.

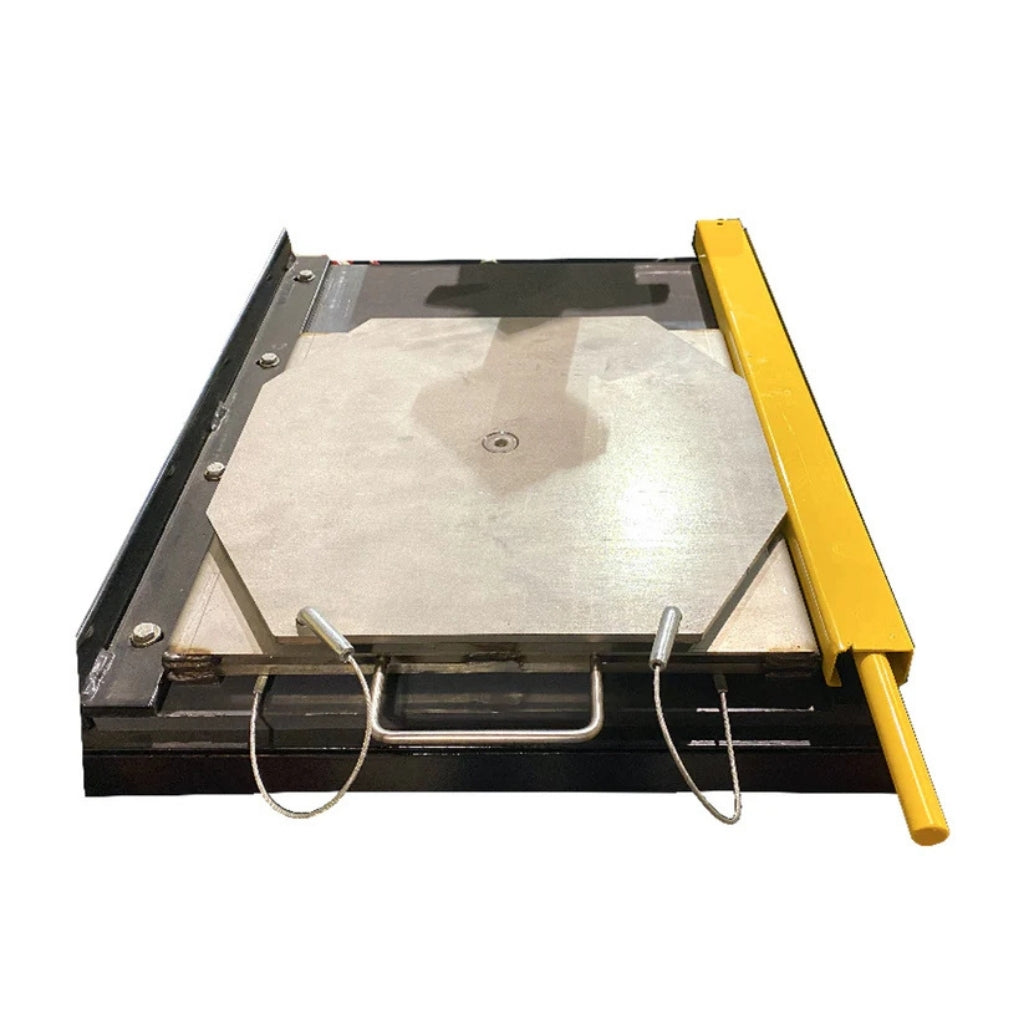

- Stainless steel front radius plates and rear slip plates, plus turn plate pocket protectors to preserve vehicle paint and components in alignment zones.
- Double-wide runways with “Z” rails for rigidity (to reduce flex and sag), improving alignment accuracy.

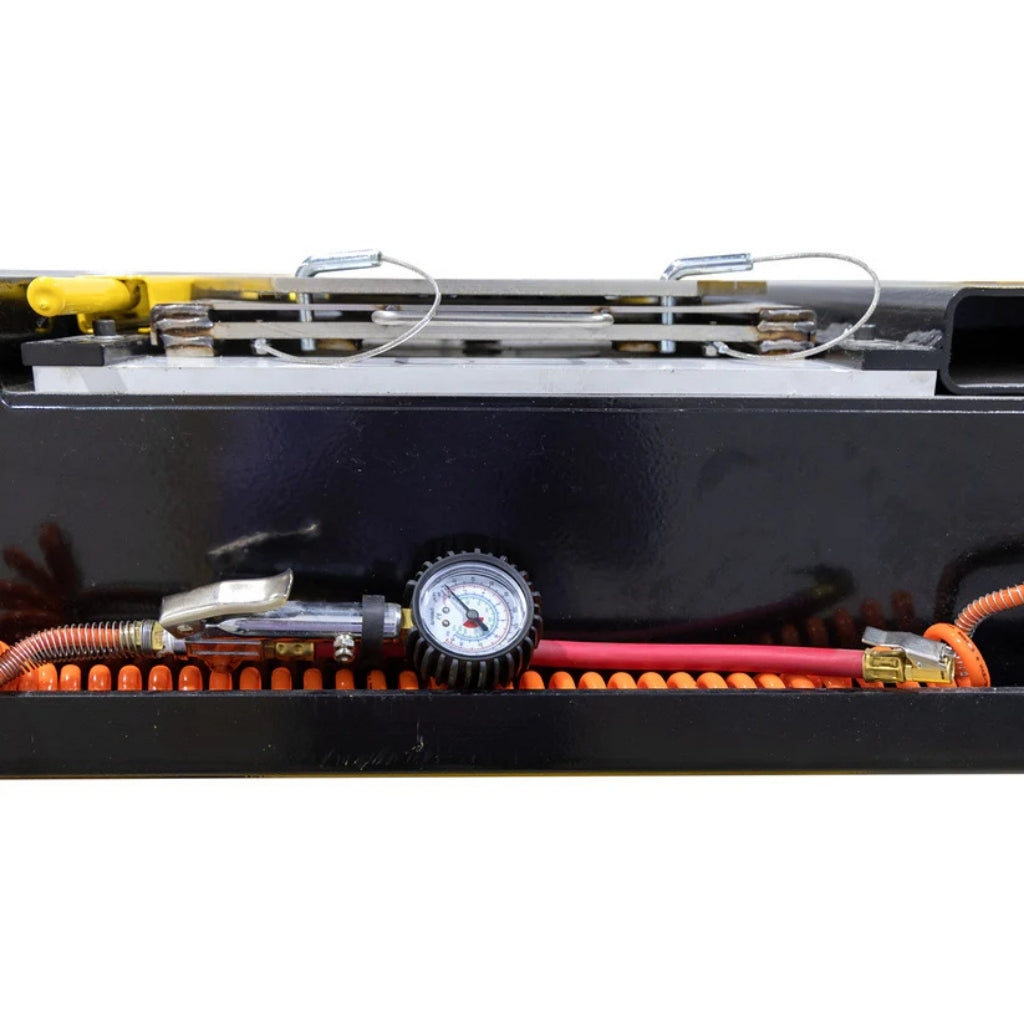

- Built-in air tire inflation kit at each wheel station.

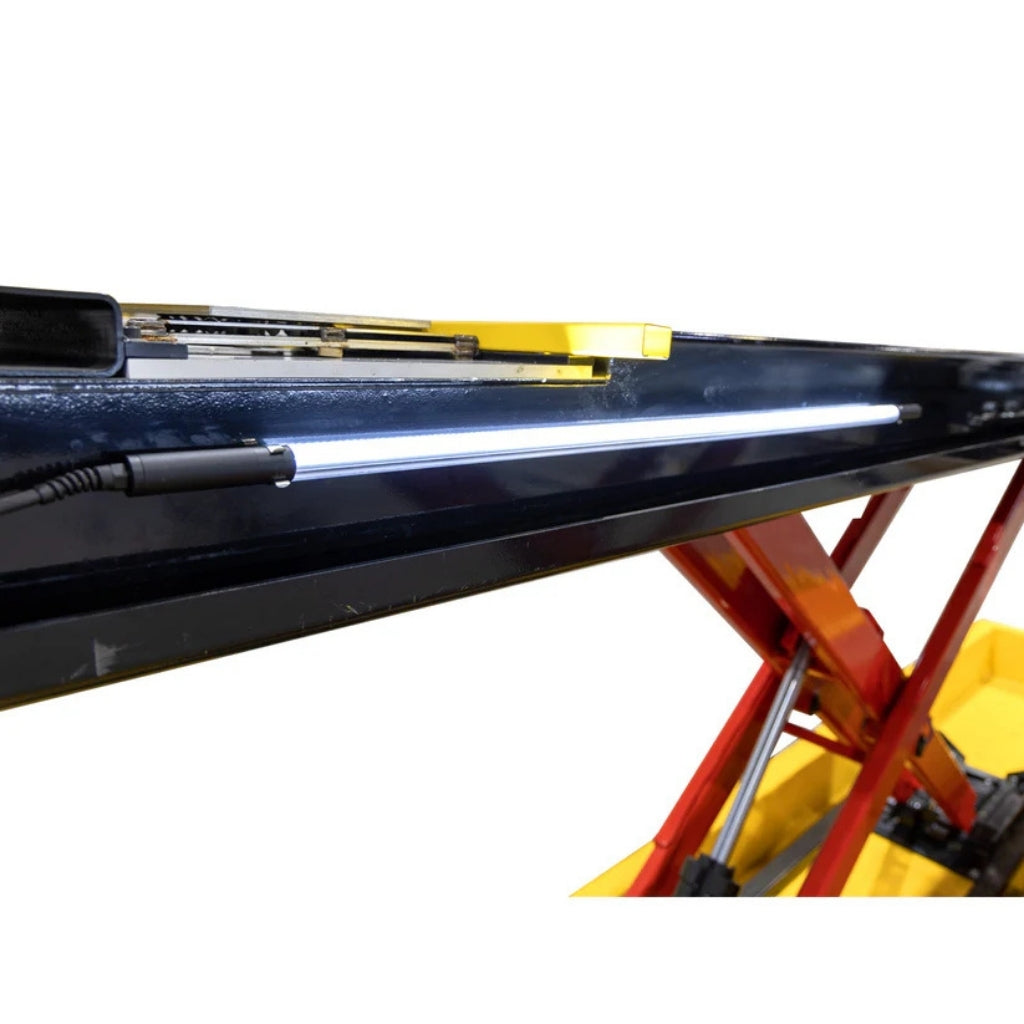

- 24-inch LED runway lights with automatic shutoff for better visibility.

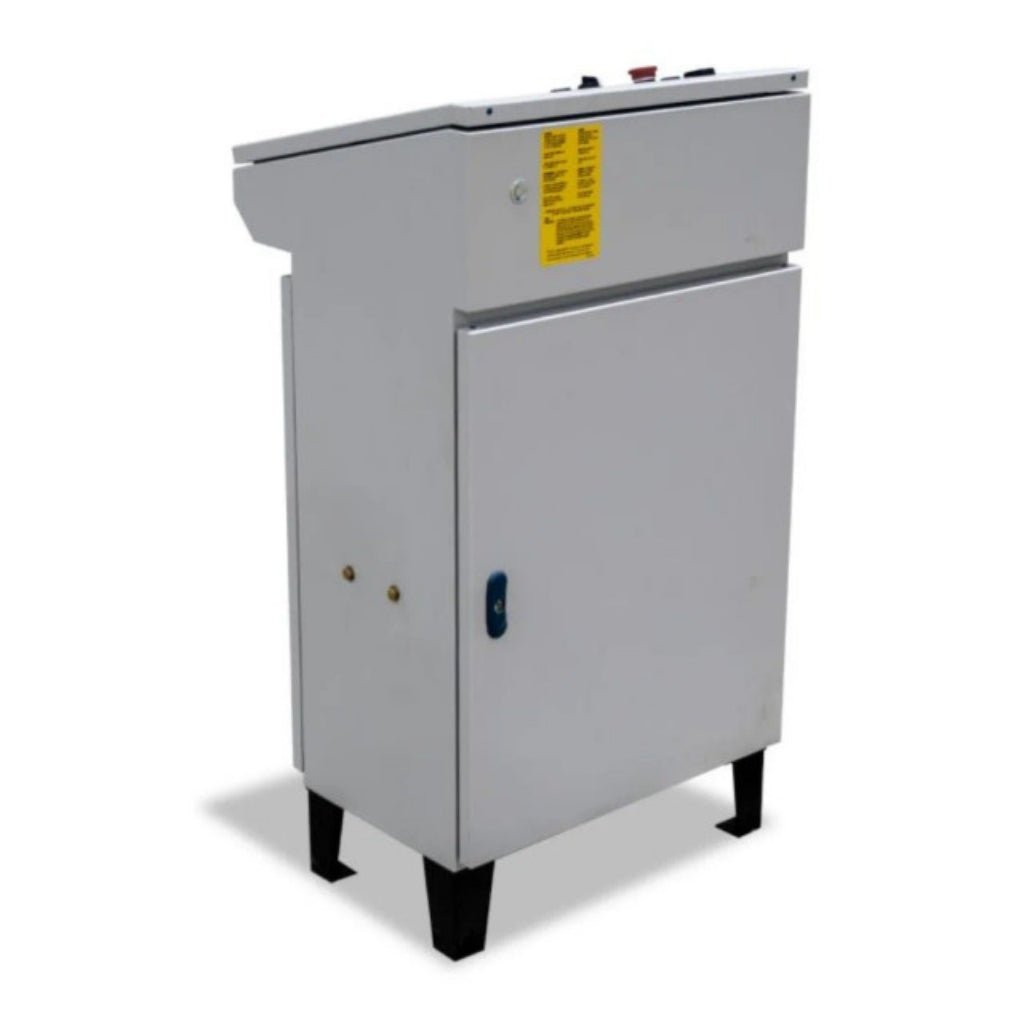

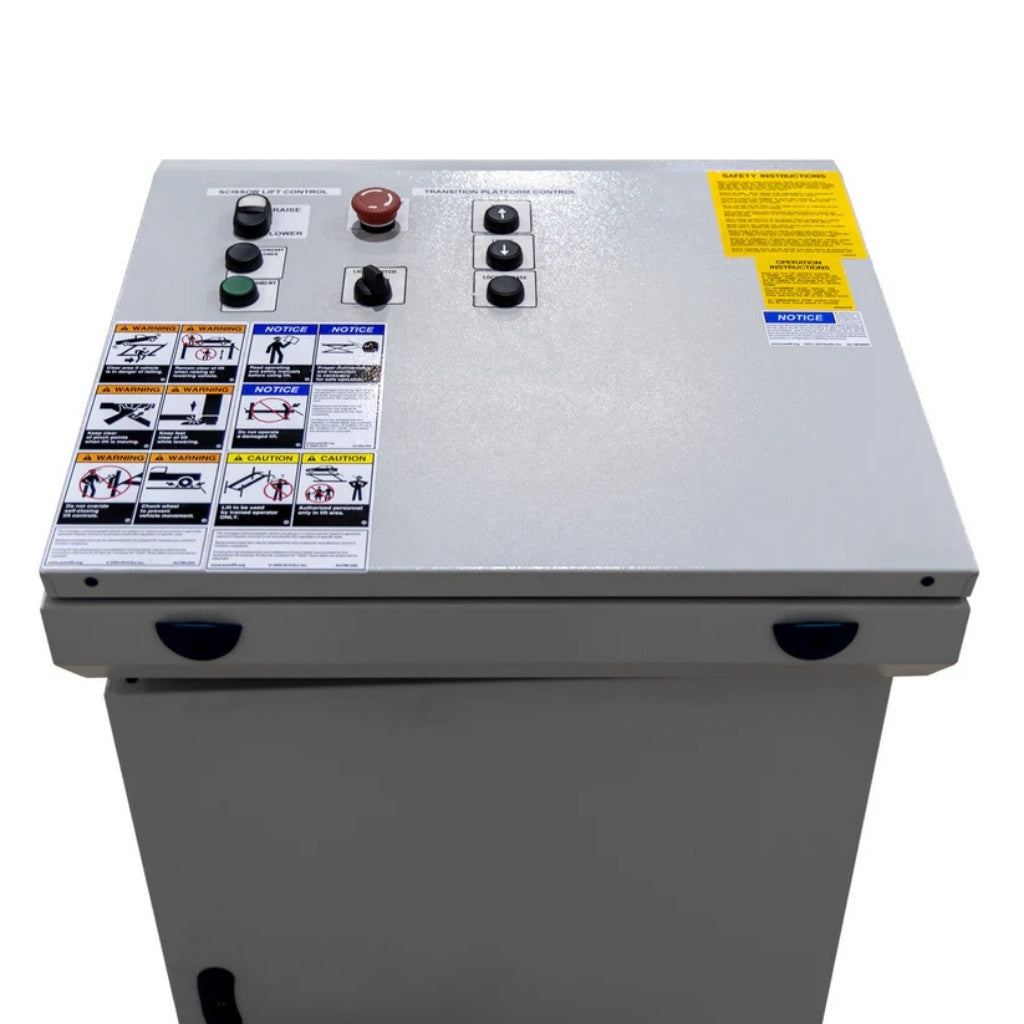

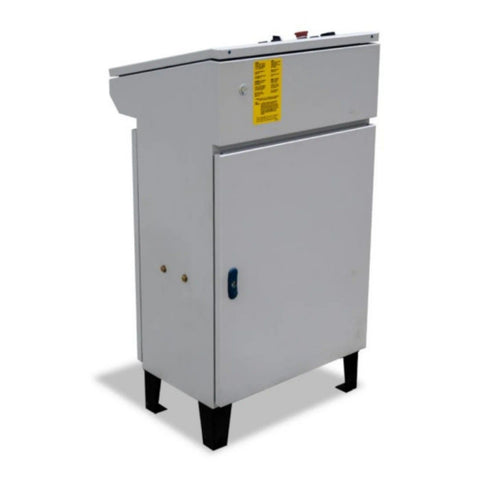

- Enclosed console control power unit; premium powder coat finish; rust-proofing via industrial methods.
- Made in North America and certified by ALI (Automotive Lift Institute).
| Specification | Value |
|---|---|
| Capacity | 12,000 lbs (~5.4 metric tons) |
| Runway Length | 185 in (~4,700 mm) |
| Runway Width | 26 in (~660 mm) |
| Overall Length | 242-3/4 in (~6,166 mm) |
| Overall Width | 91-1/2 in (~2,324 mm) |
| Width Between Runways | 41 in (~1,041 mm) |
| Deck (Platform) Width | 23 in (~584 mm) |
| Lowered Height | 10-3/4 in (~273 mm) |
| Raised Height | 74 in (~1,880 mm) |
| Minimum 4-Wheel Alignment Wheelbase | 84 in (~2,234 mm) |
| Maximum 4-Wheel Alignment Wheelbase | 160 in (~4,064 mm) |
| Maximum 2-Wheel Alignment Wheelbase | 160 in (~4,064 mm) |
| Maximum Service Wheelbase | 167 in (~4,242 mm) |
| Lift Time (Lower → Full Raise) | ≈ 58 seconds |
| Power Requirements | 230 V AC, 60 Hz, single phase, ~25 Amp |
| Shipping Weight | 5,890 lbs (~2,670 kg) |
