Autel - MaxiBAS BT608 Battery Diagnostic Tool
Available to Order
SKU:
AUTEL-BT608
NSID:
78831
- $595.00
-
$714.00 - $595.00
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
The Autel MaxiBAS BT608 Battery Diagnostic Tool is a professional analysis tool for testing 6- and 12-volt batteries from 100-3000 CCA. It covers Flooded, AGM, AGM Spiral, EFB, and GEL Cell batteries. With the Adaptive Conductance technology, you can get the most accurate test results and reduce the misdiagnosis to the lowest.
Features:
- Adaptive Conductance Technology: Delivers more accurate assessments of a battery’s cold cranking ability and reserve capacity, reducing misdiagnosis significantly
-
Versatile Battery & System Testing:
- Supports 6V and 12V batteries (100–3000 CCA) and 12V/24V cranking and charging systems
- Compatible with battery types: Flooded, AGM, AGM Spiral, EFB, and GEL, and various standards: CCA, CA, SAE, EN, IEC, DIN, JIS, MCA
-
Comprehensive Diagnostics:
- Enables in-vehicle and out-of-vehicle tests.
- Includes AutoVIN/VINScan features for fast vehicle identification and battery spec retrieval
- Reads and clears fault codes across all vehicle systems
-

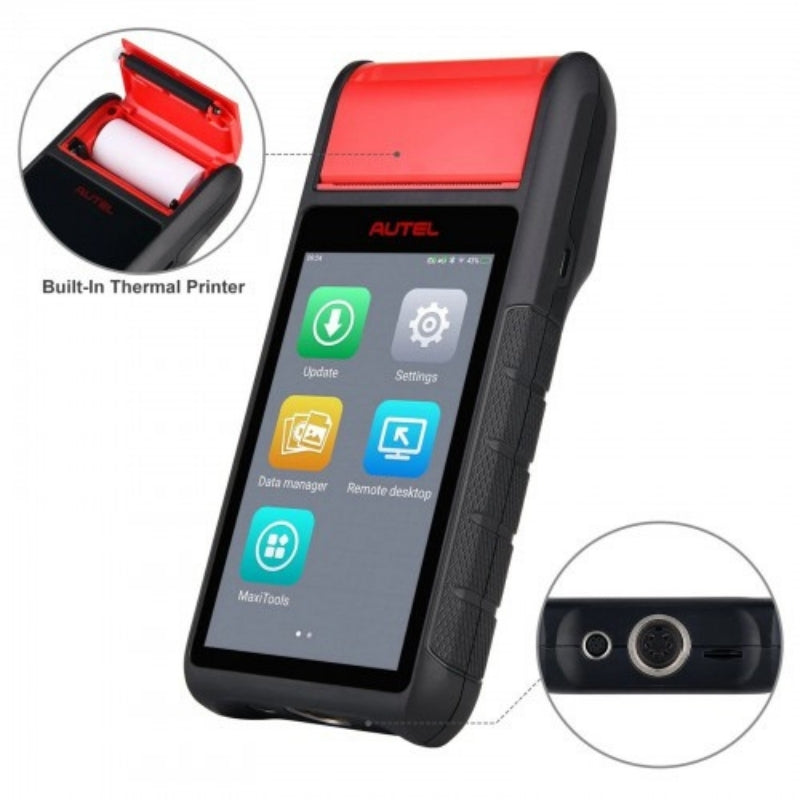

Built-in Thermal Printer & Reporting:
- Instantly prints diagnostic reports.
- Supports Wi-Fi report sharing (email, PC app) and full data management capabilities
-
Robust Tablet Hardware:
- OS: Android 9.0.
- Display: 5.5-inch capacitive touchscreen (720×1280 resolution).
- Processor: Quad-core Cortex-A35 @ 1.5 GHz
- Memory: 32 GB storage, 2 GB RAM.
- Camera: 8 MP (for VIN/barcode scanning).
- Connectivity: Wi-Fi (802.11 a/b/g/n/ac), Bluetooth 5.0 + EDR, USB-C.
- Battery: 7.7 V, 3000 mAh internal battery; ~6-hour runtime.
- Misc: Input 5 V DC, 450 mA working current, operating temp 0–50 °C (32–122 °F), storage temp −10–60 °C (14–140 °F)
-

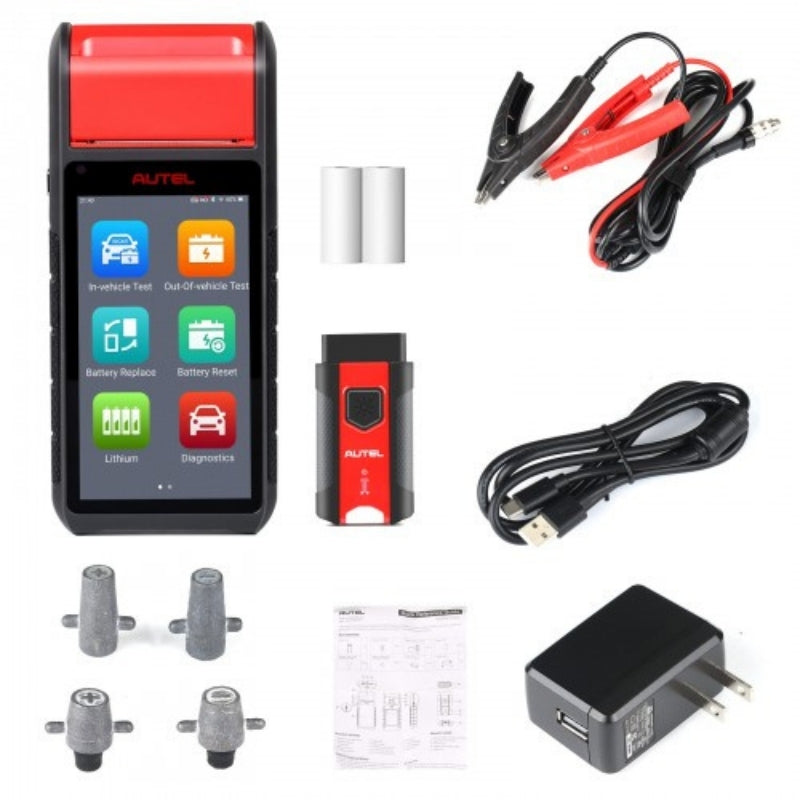

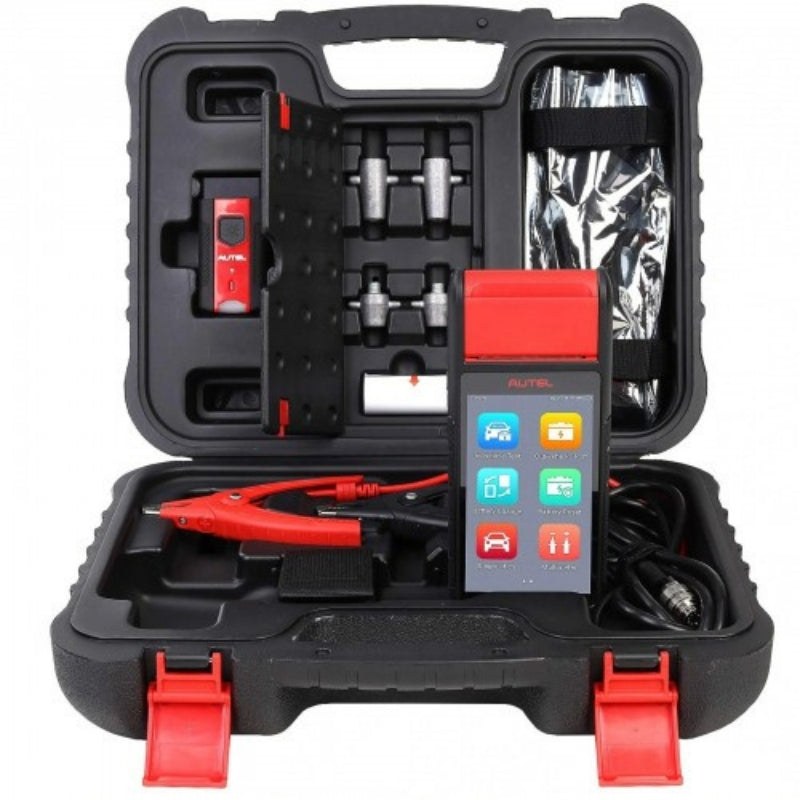

Accessories & Kit Contents:

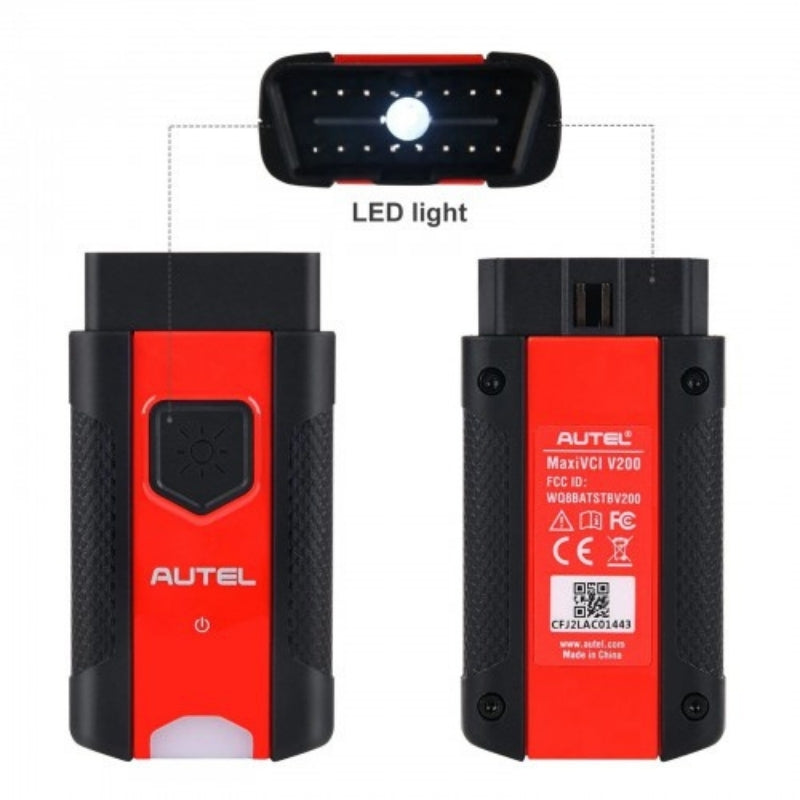

- Tablet main unit, Bluetooth VCI (MV200 series), battery clamp cable (with temperature sensor).

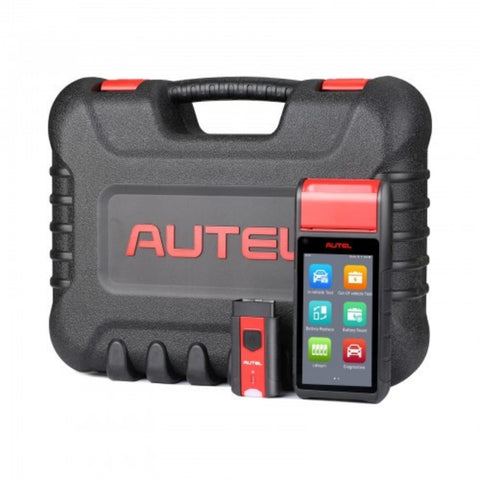

- Side-post terminals (type S & T), thermal paper rolls (2), USB cable, power adapter, hard case, quick start/reference guides.
- Optional accessories: DVOM leads, amp clamp
| Specification | Details |
|---|---|
| Operating System | Android 9.0 |
| Display | 5.5″ capacitive touchscreen, 720×1280 resolution |
| Processor | Quad-core Cortex-A35 @ 1.5 GHz |
| Memory & Storage | 2 GB RAM, 32 GB internal storage |
| Camera | 8 MP |
| Connectivity | Wi-Fi (802.11 a/b/g/n/ac), Bluetooth 5.0 + EDR, USB-C |
| Internal Battery | 7.7 V, 3000 mAh (approx. 6 hours runtime) |
| Input Power | 5 V DC; 450 mA working current at 7.7 V |
| Temperature Range | Operating: 0–50 °C (32–122 °F); Storage: −10–60 °C (14–140 °F) |
| Weight & Size | 204 × 90 × 32 mm (8.03″ × 3.54″ × 1.25″); 510 g (1.12 lb) |
| Battery Test Range | 6V / 12V batteries, 100–3000 CCA |
| Supported Battery Types | Flooded, AGM, AGM Spiral, EFB, GEL |
| Standards Supported | CCA, CA, SAE, EN, IEC, DIN, JIS, MCA |
| System Testing | 12V & 24V cranking/charging system tests; read/erase fault codes |
| Vehicle ID Features | AutoVIN, VINScan |
| Printer & Reports | Built-in thermal printer; Wi-Fi/email/PC report sharing |
| Adaptive Conductance | Yes (enhanced accuracy for battery health assessment) |
| Kit Includes | Tablet main unit, Bluetooth VCI, battery clamp cable (with temp sensor), side-post terminals (S & T), 2× thermal paper rolls, USB cable, power adapter, hard case, quick start/reference guides |
| Optional Accessories | DVOM leads, amp clamp |
