Autel - MaxiSYS - MS919 - Advanced Smart Diagnostic Tablet - MaxiFlash VCMI - Measurement System
Autel - MaxiSYS - MS919 - Advanced Smart Diagnostic Tablet - MaxiFlash VCMI - Measurement System
Autel - MaxiSYS - MS919 - Advanced Smart Diagnostic Tablet - MaxiFlash VCMI - Measurement System
Autel - MaxiSYS - MS919 - Advanced Smart Diagnostic Tablet - MaxiFlash VCMI - Measurement System
Autel - MaxiSYS - MS919 - Advanced Smart Diagnostic Tablet - MaxiFlash VCMI - Measurement System
Autel - MaxiSYS - MS919 - Advanced Smart Diagnostic Tablet - MaxiFlash VCMI - Measurement System
Autel - MaxiSYS - MS919 - Advanced Smart Diagnostic Tablet - MaxiFlash VCMI - Measurement System

Autel - MaxiSYS - MS919 - Advanced Smart Diagnostic Tablet - MaxiFlash VCMI - Measurement System

$3,999.99 $4,497.99
Availability: In Stock
Wishlist
  • Product SKU: AUTEL-MAXISYS-MS919
  • NSID: 25203
  • AUTEL-MAXISYS-MS919

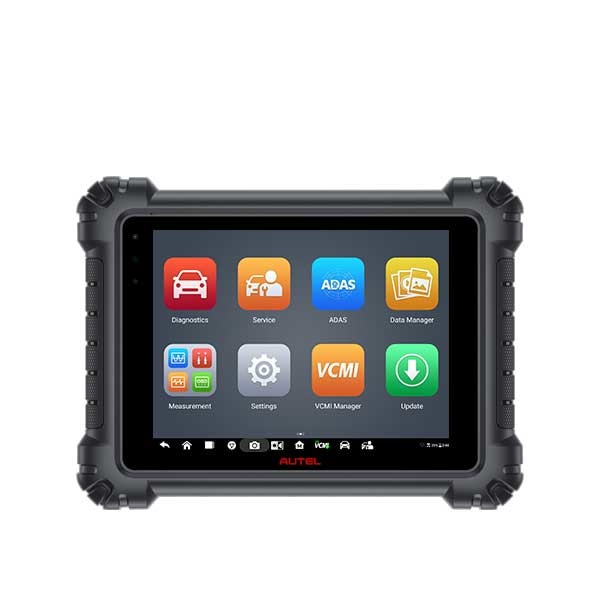

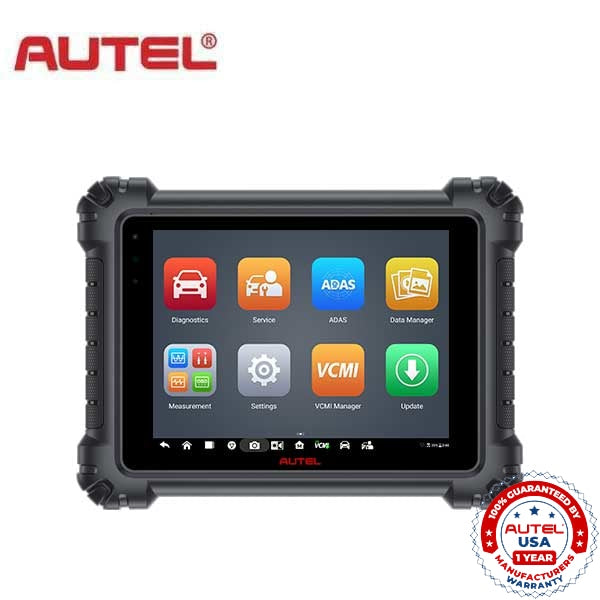

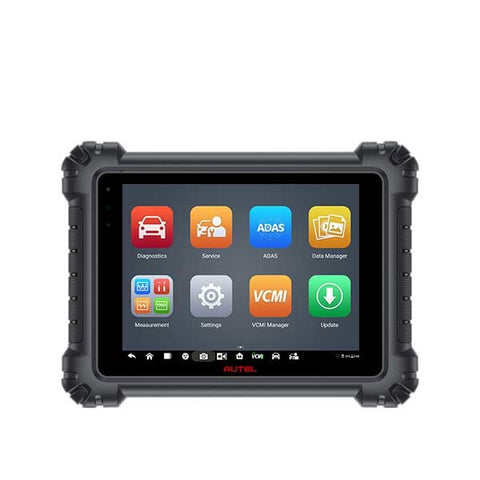

    The Autel MaxiSYS MS919 is the 2021 newest and advanced automotive diagnostic tool which combines diagnostics, service, extensive live data, channel coding, and ECU reflashing. It features a 9.7-inch touchscreen tablet with Android 7.0 OS powered by an Octa-core processor, substantial 128GB built-in memory to provide diagnostic guidance and test components to confirm repairs. The new MaxiFlash VCMI, functions as a 4-channel oscilloscope, waveform generator, multimeter, and CAN BUS tester. The supporting MS919 software provides a large library of preset guided tests and extensive waveform library, to ensure techs are getting the most Oscilloscope use. The MS919 software outperforms competitors by offering DTC and sensor specific test options to help test more accurately, as well as providing probe and component location diagrams so technicians test while connected correctly. The MS919 represents excellent value for money!

    Features and benefits:

    • 9.7’’ Touchscreen (1536 x 2048)
    • Android 10.0 OS
    • 2.3GHz + 1.7GHz Octa-core Processor / 256GB Memory
    • Advanced VCMI 5-In-1 Device: VCI, Oscilloscope, Multimeter, Waveform Generator, CAN Bus Check
    • Oscilloscope Preset Guided & Component Tests / Waveform Library
    • New VCI Protocols: D-PDU, DoIP/CAN FD, Mega CAN
    • Topology Module Mapping: Color Coded All System Status Screen (on supported vehicles)
    • Relevant Cases: DTC Troubleshooting / Repair Tips Video Library
    • Repair Assist: Guided Procedures with DTC Analysis & Fault Code Solutions
    • Code-Related Technical Service Bulletins (on select vehicles)
    • License Plate Reader
    • ScanVIN: Barcode or Text Recognition with Camera
    • Secure Gateway Access: Authorized FCA SGM Access with AutoAuth Account (sold separately)

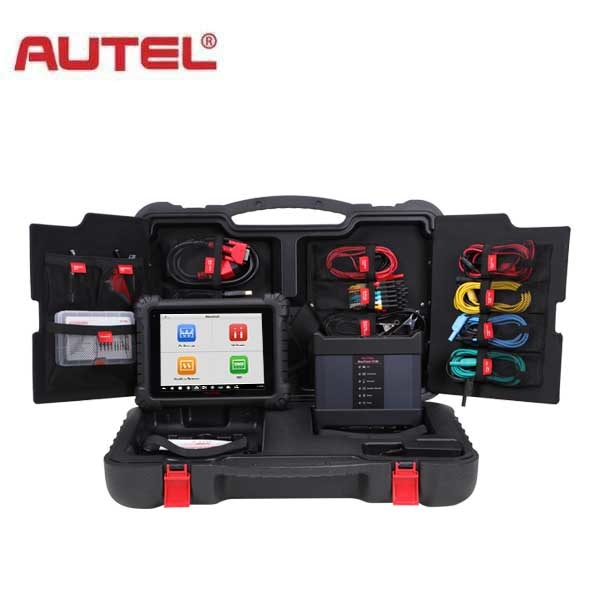

    • Includes Cables, Scope Connectors, Carrying Case
    • Enhanced Diagnostic Reports: PreSCAN & PostSCAN
    • 15000mAh – 3.8V lithium-polyment battery - 8hrs Continuous Use
    • 16MP Rear Camera Autofocus with Flashlight & 5MP Front Camera
    • 1-year update subscription and warranty (Both can be renewed)



    $3,999.99
    Get it shipped
    Today!
    Order within
    00 Hrs
    00 Mins
    00 Secs

Specifications:

Operating System Android 10.0
Processor Samsung Exynos8895V octa-core Processor (2.3GHz Quad-core Mongoose + 1.7GHz Quad-core A53)
Memory 4GB RAM & 128GB On-board Memory
Display 9.7 inch TFT-LCD with 1536 x 2048 resolution & capacitive touchscreen
Connectivity Wi-Fix2 (802.11 a/b/g/n/ac 2x2 MIMO)
BT v.2.1 + EDR
GPS
USB 2.0 (TWO USB HOST Type A, ONE USB mini device)
HDMI 2.0
SD Card (Support up to 256GB
Camera (rear) Rear: 16 Megapixel, Autofocus with Flashlight
Front: 5.0 Megapixel
Sensors Gravity Accelerometer, Ambient Light Sensor (ALS)
Audio Input/Output Microphone
Dual Speakers
3-Band 3.5 mm stereo/standard headset jack
Power and Battery 15000mAh 3.8V lithium-polymer battery
Charging via 12V AC/DC power supply
Input Voltage 12V/3A Adapter
Operating Temperature 0 to 50°C (32 to 122°F)
Storage Temperature -20 to 60°C (-4 to 140°F)
Dimensions (W x H x D) 304.4 mm (11.98") x 227.8 mm (8.97") x 42.5 mm (1.67")
Protocols DoIP, PLC J2497, ISO-15765, SAE-J1939, ISO-14229 UDS, SAE-J2411 Single Wire Can(GMLAN), ISO-11897-2, ISO-11897-3, SAE-J2819 (TP20), TP16, ISO-9141, ISO-14230, SAE-J2610 (Chysler SCI), UART Echo Byte, SAE-J2809 (Honda Diag-H), SAE-J2740 (GM ALDL), SAE-J1567 (CCD BUS), Ford UBP, Nissan DDL UART with Clock, BMW DS2, BMW DS1, SAE J2819 (VAG KW81), KW82, SAE J1708, SAE-J1850 PWM (Ford SCP), SAE-J1850 VPW (GM Class2)


Accessories:

Downloads:



Autel USA Tech Support: 855-288-3587

AUTEL-MAXISYS-MS919

The Autel MaxiSYS MS919 is the 2021 newest and advanced automotive diagnostic tool which combines diagnostics, service, extensive live data, channel coding, and ECU reflashing. It features a 9.7-inch touchscreen tablet with Android 7.0 OS powered by an Octa-core processor, substantial 128GB built-in memory to provide diagnostic guidance and test components to confirm repairs. The new MaxiFlash VCMI, functions as a 4-channel oscilloscope, waveform generator, multimeter, and CAN BUS tester. The supporting MS919 software provides a large library of preset guided tests and extensive waveform library, to ensure techs are getting the most Oscilloscope use. The MS919 software outperforms competitors by offering DTC and sensor specific test options to help test more accurately, as well as providing probe and component location diagrams so technicians test while connected correctly. The MS919 represents excellent value for money!

Features and benefits:

  • 9.7’’ Touchscreen (1536 x 2048)
  • Android 10.0 OS
  • 2.3GHz + 1.7GHz Octa-core Processor / 256GB Memory
  • Advanced VCMI 5-In-1 Device: VCI, Oscilloscope, Multimeter, Waveform Generator, CAN Bus Check
  • Oscilloscope Preset Guided & Component Tests / Waveform Library
  • New VCI Protocols: D-PDU, DoIP/CAN FD, Mega CAN
  • Topology Module Mapping: Color Coded All System Status Screen (on supported vehicles)
  • Relevant Cases: DTC Troubleshooting / Repair Tips Video Library
  • Repair Assist: Guided Procedures with DTC Analysis & Fault Code Solutions
  • Code-Related Technical Service Bulletins (on select vehicles)
  • License Plate Reader
  • ScanVIN: Barcode or Text Recognition with Camera
  • Secure Gateway Access: Authorized FCA SGM Access with AutoAuth Account (sold separately)
  • Includes Cables, Scope Connectors, Carrying Case
  • Enhanced Diagnostic Reports: PreSCAN & PostSCAN
  • 15000mAh – 3.8V lithium-polyment battery - 8hrs Continuous Use
  • 16MP Rear Camera Autofocus with Flashlight & 5MP Front Camera
  • 1-year update subscription and warranty (Both can be renewed)


Specifications:

Operating System Android 10.0
Processor Samsung Exynos8895V octa-core Processor (2.3GHz Quad-core Mongoose + 1.7GHz Quad-core A53)
Memory 4GB RAM & 128GB On-board Memory
Display 9.7 inch TFT-LCD with 1536 x 2048 resolution & capacitive touchscreen
Connectivity Wi-Fix2 (802.11 a/b/g/n/ac 2x2 MIMO)
BT v.2.1 + EDR
GPS
USB 2.0 (TWO USB HOST Type A, ONE USB mini device)
HDMI 2.0
SD Card (Support up to 256GB
Camera (rear) Rear: 16 Megapixel, Autofocus with Flashlight
Front: 5.0 Megapixel
Sensors Gravity Accelerometer, Ambient Light Sensor (ALS)
Audio Input/Output Microphone
Dual Speakers
3-Band 3.5 mm stereo/standard headset jack
Power and Battery 15000mAh 3.8V lithium-polymer battery
Charging via 12V AC/DC power supply
Input Voltage 12V/3A Adapter
Operating Temperature 0 to 50°C (32 to 122°F)
Storage Temperature -20 to 60°C (-4 to 140°F)
Dimensions (W x H x D) 304.4 mm (11.98") x 227.8 mm (8.97") x 42.5 mm (1.67")
Protocols DoIP, PLC J2497, ISO-15765, SAE-J1939, ISO-14229 UDS, SAE-J2411 Single Wire Can(GMLAN), ISO-11897-2, ISO-11897-3, SAE-J2819 (TP20), TP16, ISO-9141, ISO-14230, SAE-J2610 (Chysler SCI), UART Echo Byte, SAE-J2809 (Honda Diag-H), SAE-J2740 (GM ALDL), SAE-J1567 (CCD BUS), Ford UBP, Nissan DDL UART with Clock, BMW DS2, BMW DS1, SAE J2819 (VAG KW81), KW82, SAE J1708, SAE-J1850 PWM (Ford SCP), SAE-J1850 VPW (GM Class2)


Accessories:

Downloads:



Autel USA Tech Support: 855-288-3587
