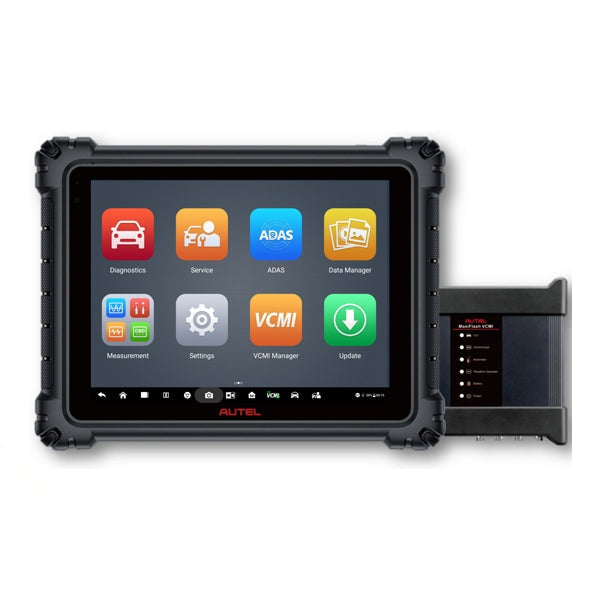

Autel - MaxiSYS - Ultra - Automotive Diagnostic Tablet With Advanced MaxiFlash VCMI
Autel - MaxiSYS - Ultra - Automotive Diagnostic Tablet With Advanced MaxiFlash VCMI
Couldn't load pickup availability

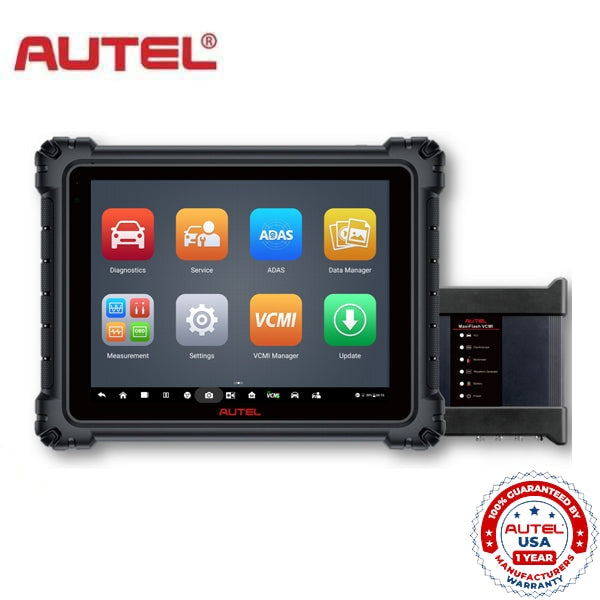

The MaxiSYS Ultra is Autel’s most ambitious diagnostics tablet to date, featuring a 12.9-inch touchscreen Android-based tablet powered by an Octa-core processor (2.3GHz Quad + 1.7GHz Quad), substantial 256GB built-in memory and features the MaxiFlash VCMI, a 5-in-1 communication and testing tool providing wireless vehicle communications between the vehicle and tablet and supporting the latest DoIP, D-PDU and Mega CAN vehicle communication protocols. The VCMI also functions as a 4-channel oscilloscope, waveform generator, multimeter and CanBUS tester. The Ultra offers the most advanced approach to vehicle diagnostics, service and repair with its dynamic module topology interface for supported vehicles, and coding and adaptation capabilities. Utilize Remote Expert to contract with expert programmers and diagnosticians with OE tools and subscriptions for module programming, ADAS calibration, and gateway access. The Ultra features a rechargeable Lithium battery proving 8 hours of continues use, a convenient docking station and front and rear cameras.
- Autel updates provide latest OE level coverage for more than 80 US Domestic, Asian and European vehicles, including supercars
- Exceptional OE-Level functionality from comprehensive OBDII diagnostics & services to advanced ECU coding and programming
- Automatic system and software updates with real-time push message notifications via internet
- Interactive Data Logging sessions enable direct contact with Autel Support for first-hand troubleshooting of diagnostic bugs and errors
- One-stop multitasking designed for ideal management of workshop operations to keep all data files, customer info, and vehicle records well organized
- Cloud-based Data Manager saves customer and vehicle records, scanner data and technician notes
Details
Watch Demonstration and Feature Videos Below
Technical Specs:

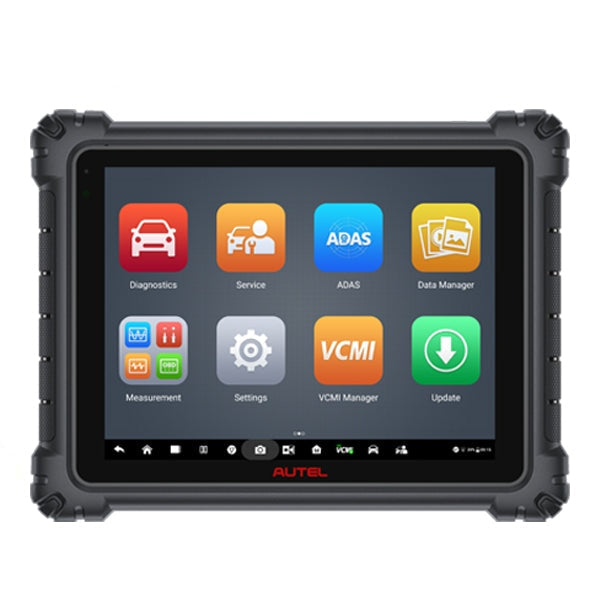

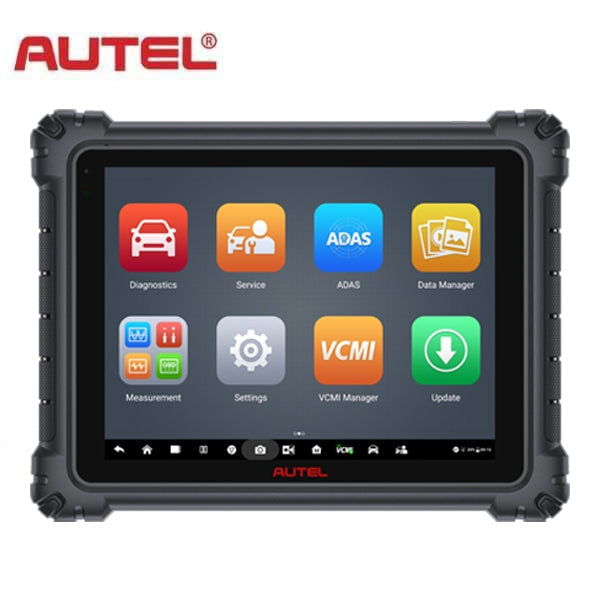

- Large 12.9’’ Touchscreen (2732 x 2048) / Android 7.0
- 2.3GHz + 1.7GHz Octa-core Processor / 256GB Memory
- Advanced VCMI 5-In-1 Device: VCI, Oscilloscope, Multimeter, Waveform Generator, CAN BUS Check
- Oscilloscope Preset Guided & Component Tests / Waveform Library
- New VCI Protocols: D-PDU, DoIP/CAN FD, Mega CAN
- Split Screen Multi-Application Function / Dual Wi-Fi Connection

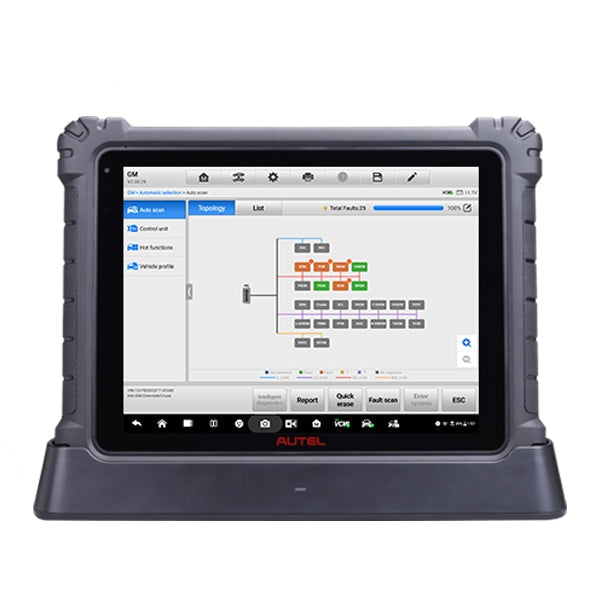

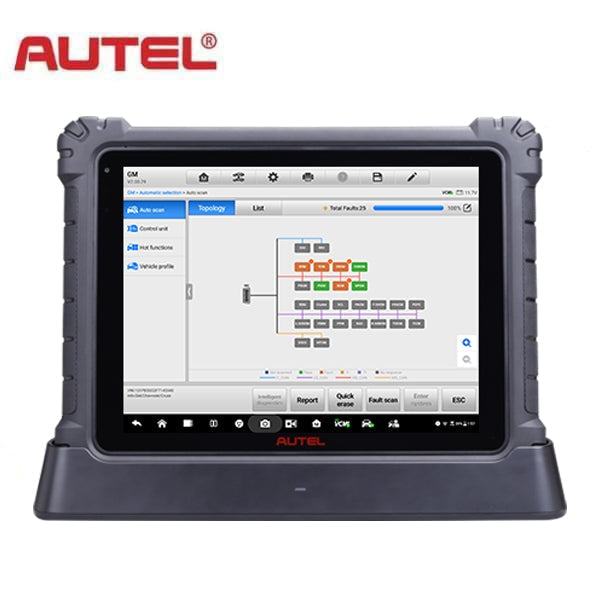

- Dynamic Module Topology interface with Color Coded All System Status Screen (on supported vehicles)
- Performs Coding and Adaptations
- Cloud-based Report Management
- Remote Expert-ready: contract with expert programmers and diagnosticians with OE tools and subscriptions for module programming, ADAS calibration, and gateway access.
- ScanVIN: Barcode or Text Recognition with Camera
- Secure Gateway Access: Authorized FCA SGM Access with AutoAuth Account
- Includes Docking Station, Cables, Scope Connectors, Carrying Case, 1YR Warranty & Software Subscription
- Enhanced Diagnostic Reports: PreSCAN & PostSCAN
- 18000mAh - 8hrs Continuous Use / 16MP Rear Camera & 5MP Front Camera

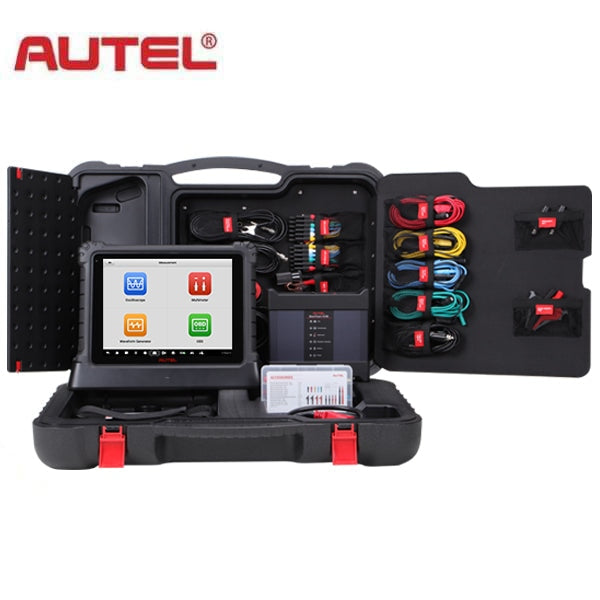

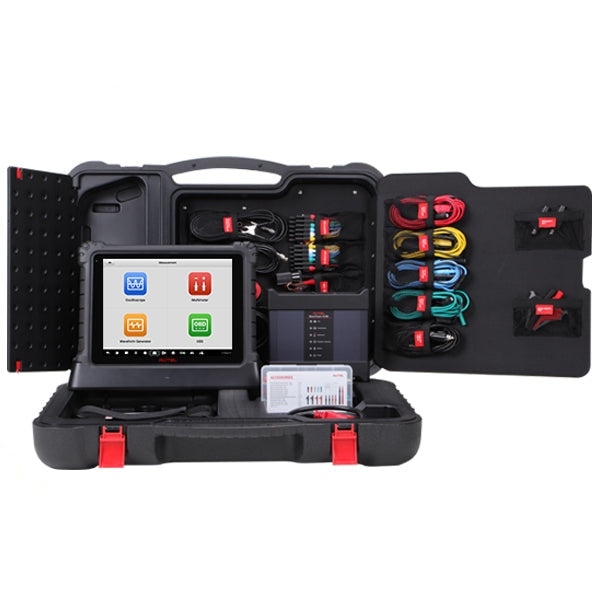

MaxiSYS Ultra Includes:
- Main Unit
- MaxiFlash VCMI
- Main Cable V2.0
- USB 2.0 Cable V2
- AC/DC Adapter(12V)
- Cigarette Lighter
- Light Fuse 6x30mm 2 PCS
- Clipper Cable
- Scope Test Lead 4 PCS
- Multimeter Test Lead 2 PCS
- Secondary Ignition Pickup 2 PCS
- Attenuator 20:1 2 PCS
- Breakout Lead 4x6 PCS
- Multimeter Probe 1x2 PCS
- Flexible Back-pinning Probe 2x2 PCS
- Back-pinning Probe - Red/Green/Blue/Yellow/Black 1x5 PCS
- Back-pinning Probe Screw 2 PCS
- Back-pinning Probe Replacement Needle 20 PCS
- Small Crocodile Clip 2x2 PCS
- Large Dolphin Clip 1x2 PCS
- Quick Reference Guide
- Packing List
- Soft Cloth
- Tool Box 177 x 102.5 x 23.5 mm
- Carrying Case 687 x 170 x 470 mm
