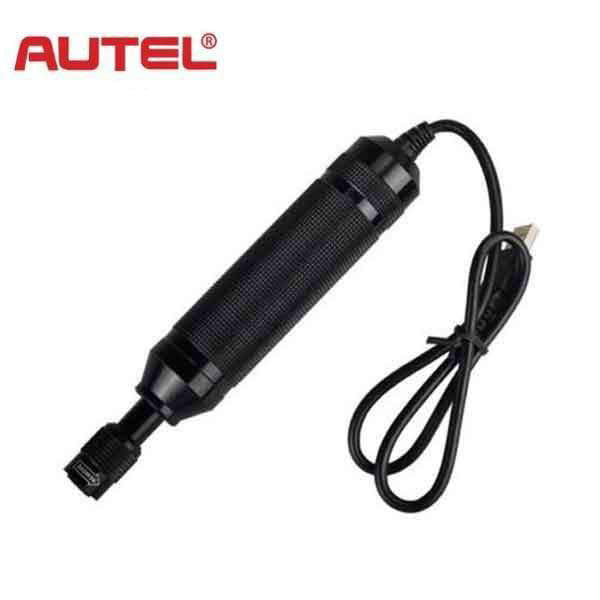

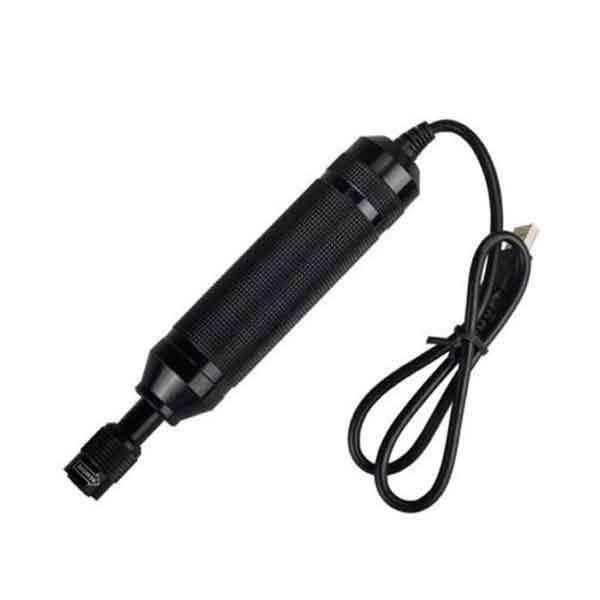

Autel - MaxiVideo - MV105 - Digital Inspection Camera - 5.5 mm
- Product SKU: AUTEL-MV105
- NSID: 1216
-
AUTEL-MV105
The MV105 digital inspection camera is designed to work with MaxiSys series products (except MaxiSys 906) or PC. It turns your MaxiSys tablet into a video inspection scope, allowing you to examine difficult-to-reach areas normally hidden from sight. It is capable of recording digital still images and videos, which offers you an economical solution to inspect machinery, facilities, and infrastructure in a safe and quick way.
Features:
- White LED lights to illuminate the inspection areas.
- Small diameter allows it to be used in the tight spaces.
- Wonderful for up-close visual inspections in confined areas, such as engine cylinders and small part inspections.
- Powerful and perfect for inspecting most spark plug holes.
- Super bright LED and high resolution provide crystal clear images.
Specifications
| Optimal Viewing Distance | 3/8’’ to 12’’ (0.95cm to 30cm) |
| Image Capture | 320 x 240 |
| Image Head | 5.5mm (0.22’’) |
| Accuracy | 1% |
| Operating Temperature | Main Unit: 0°C to 50°C (32°F to 122°F) Cable: -10°C to 70°C (14°F to 158°F) |
| Storage Temperature | -20°C to 75°C (-4°F to 167°F) |
| Waterproof | Imager head and cable to 1m (3’) |
Includes
- 1x MVIHC55 Module
- 1x MV105
