Autel - MS919S2 - MaxiSYS - Advanced Diagnostic Tool with MaxiFlash - 6-in-1 VCMI2
In Stock
SKU:
AUTEL-MS919S2
NSID:
89702
- $5,199.00
-
$6,238.80 - $5,199.00
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per

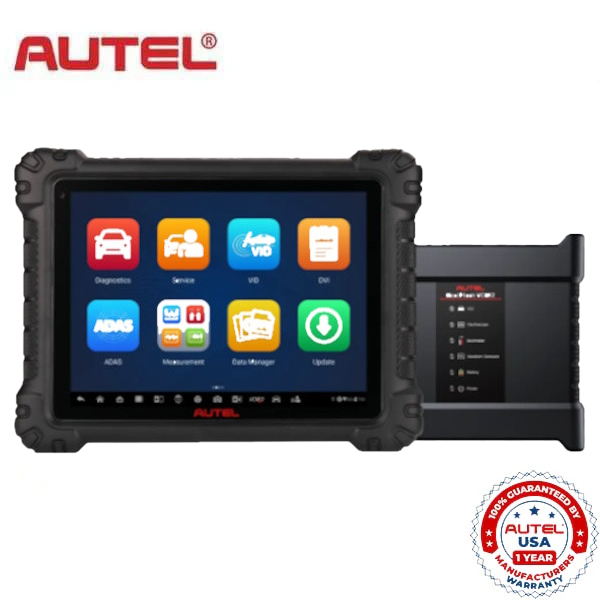

The Autel MaxiSYS MS919 S2 is a premium 11-inch wireless diagnostic tablet for 1996 and newer U.S., Asian, and European vehicles, delivering OE-level diagnostics, advanced service functions, Topology 3.0 system analysis, and enhanced live data with graphing and split-screen oscilloscope support. It includes the powerful MaxiFLASH VCMI2, combining VCI, J2534 pass-thru programming, 4-channel oscilloscope, waveform generator, multimeter, CAN-bus tester, and Remote Expert capability in one compact unit. Built on Android 13 with a 2.7 GHz 8-core processor, 256GB storage, and Wi-Fi 6, it offers fast performance and broad protocol coverage, plus security gateway access for select Mercedes-Benz, Nissan, VW/Audi, and Stellantis vehicles. The MS919 S2 also includes digital vehicle inspection, navigation assistance, 1 year of MOTOR TruSpeed repair info, 1 year of free software updates, and a 1-year limited warranty.
Features:
- The MS919 S2 is an 11-inch next-generation advanced diagnostic Android-based touchscreen tablet with an enhanced wireless MaxiFLASH VCMI2.
- The MaxiFLASH VCMI2 is a compact 6-in-1 vehicle communication and measurement unit: VCI, J2534-pass-thru, 4-channel oscilloscope, waveform generator, multimeter, CAN-bus tester, and standalone Remote Expert box.
- Industry-leading U.S., Asian, and European vehicle coverage, with all systems diagnostics, pre- and post-scan reporting, bi-directional testing, hidden and special functions, coding, and adaptations.
- Topology 3.0 dynamic network analysis with the ability to ping and monitor individual module communications across multiple networks, and enhanced Live Data analysis.
- The MS919 S2 tablet also features a multi-point digital vehicle inspection application, MAX, a hands-free tablet navigation assistant, and one year of free access to MOTOR TruSpeed integrated repair information.
- One-Tap Access to 45+ Maintenance and Reset Service Functions.
- Industry-leading Security-Gateway Access (Mercedes-Benz, Nissan, VW/Audi, and Stellantis. AutoAuth account required, VW/Audi on-tool token/sub purchase.)
- The MS919 S2 features a 2.7 GHz 8-core processor for superior diagnostics. communication speed, the dynamic Android 13 operating system, increased storage of 256 GB, faster and more consistent Wi-Fi 6.0, and an advanced MaxiFLASH VCMI2.
- Enhanced PID analysis with Live Data Fusion, Reference Sampling, Parameter Graphing, and Real-time, Split-Screen analysis with Oscilloscope and Live Data screens.
- Upgrade accessory purchase options: ADAS calibration-capable with software upgrade and ADAS target package, Video (borescope) Scope MV108S/105S Battery Tester (BT506).
- The MS919 S2 is covered by a one-year limited warranty and receives one-year of free software updates.
Specifications:
| Operating System | Android 13 |
| Processor | Octa-core processor |
| Memory | 12 GB RAM & 256 GB on-board memory |
| Display | 11 - inch anti-glare screen (2176 x 1600) |
| Connectivity |
|
| Camera (rear) |
|
| Sensors | Gravity Accelerometer, Ambient Light Snesor (ALS) |
| Audio Input/Output |
|
| Power and Battery |
|
| Input Voltage | DC input: 12V/6A USB-C input: 15V/3A max. (also support 9V/3A or 5V/3A) |
| Operating Temperature | 0°C to 50°C (32°F to 122°F) |
| Storage Temperature | -10°C to 60°C (14°F to 140°F) |
| Dimensions (WxHxD) | 315.4mm (12.42") x 240.3 mm (9.46") x 39.0 mm (1.54") |
| Weight | 1656.5 g (3.65 lbs.) |
| Protocols | PLC J2497, ISO-15765, SAE-J1939, ISO-14229 UDS, SAE-J2411 Single Wire Can (GMLAN), ISO-11898-2, ISO-11898-3, SAE-J2819 (TP20), TP16, ISO-9141, ISO14230, SAE-J2610 (Chrysler SCI), UART Echo Byte, SAE-J2809 (Honda Diag-H), SAE-J2740 (GM ALDL), SAE-J1567 (CCD BUS), Ford UBP, Nissan DDL UART with Clock, BMW DS2, BMW DS1, SAE J2819 (VAG KW81), KW82, SAE J1708, SAE-J1850 PWM (Ford SCP), SAE-J1850 VPW (GM Class2), ISO 13400, CAN FD |
Downloads:

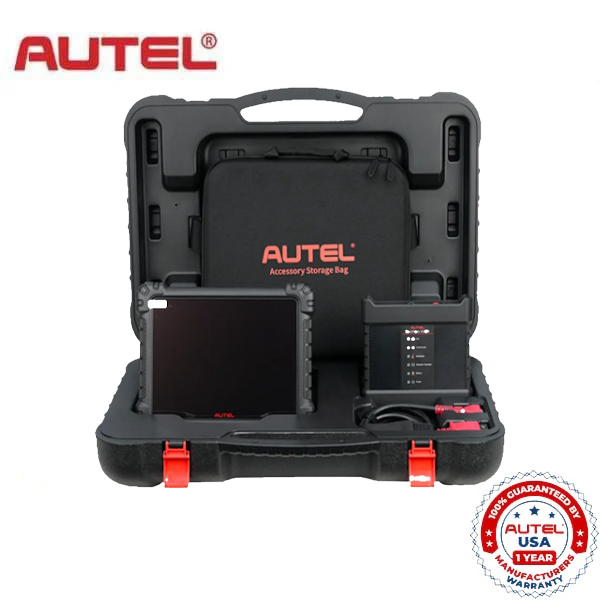

What's Included:
- MS919S2 Main Unit
- MaxiFlash VCMI2
- USB Type-C Cable
- USB 2.0 Cable V2
- AC/DC Adapter (12V)
- Auxiliary Power Outlet Adapter
- Spare Fuse (6x30mm - 2pcs)
- Clamp Cable
- Attenuator 20:1 (2pcs)
- Scope Test Lead (1x4 pcs)
- Multimeter Test Lead (1x2 pcs)
- Secondary Ignition Pickup (2pcs)
- Breakout Lead (4x6 pcs)
- Multimeter Prove (1x2 pcs)
- Flexible Back-Pinning Probe (2s2 pcs)
- Back-Pinning Probe (Red/Green/Blue/Yellow/Black, 1x5 pcs)
- Back-Pinning Probe Replacement Needle (20pcs)
- Small Alligator Clip (2x2 pcs)
- Large Dolphin Clip (1x2 pcs)
- USB Ethernet Adapter
- Tool Box
- Accessory Storage Bag
- Carrying Case
