Details
Specifications
| Configuration |

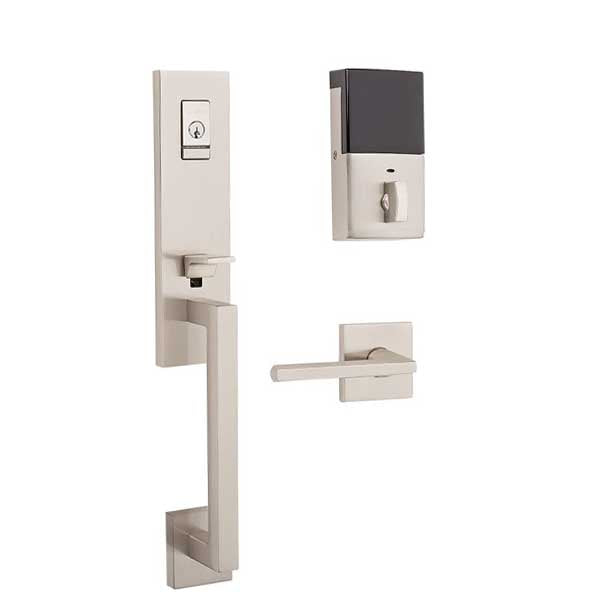

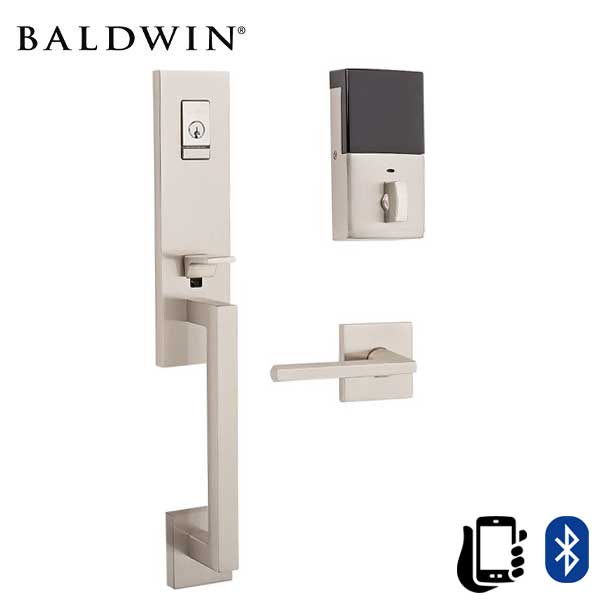

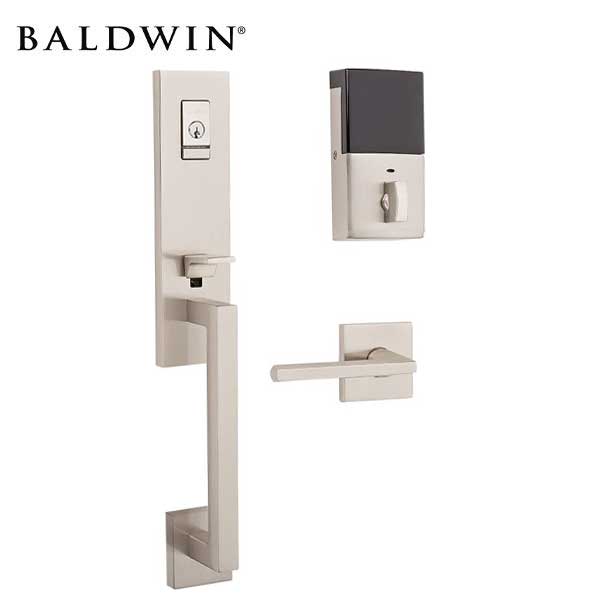

Bluetooth Handleset |
| Device Compatibility | Android, iPhone |
| Wireless Communication | Bluetooth, WiFi |
| Electronic | Yes |
| Cylinder | Single Cylinder |
| Keyway | Baldwin 5 Pin C Keyway |
| Handing | Right Hand |
| Finish | 150 - Satin Nickel |
| Latch Faceplate | Square Corner |
| Center to Center |
5.5" in. |
| Grip Center to Center | 8.75" in. |
| Handle Projection |
2.7188" in. |
| Interior Handle Length |
4.46 " |
| Overall Height |
17.0938" in. |
| Trim Height |
9.8125" in. |
| Trim Width |
2.625" in. |
| Backset | Adjustable 2-3/8" or 2-3/4" |
| Cross Bore |
2-1/8" |
| Edge Bore | 1" |
| Door Thickness |
1-3/4" |
| Auto-Lock Capable |
Yes |
| Battery | AA |
| BHMA Certification |
Grade 2 |
Remote control - Baldwin key fob (sold seperately HERE)
Downloads
Return Policy: We do not accept returns on unsealed products. In order to return a defective item a support ticket is needed. To receive a ticket, please contact Baldwin directly at 800-566-1986 or visit their support page here. Once you have the ticket contact UHS Hardware for the return.
