Baldwin - Reserve Del Mar Traditional Handleset - Single Cylinder Lever - Left Handed - Square Rose - Venetian Bronze - Grade 2

In Stock
SKU: BLD-EE.DELXCUR.L.TAE.112.6L.DS.CKY.KD
NSID: 7598

Get it shipped ! Order within:

Get it shipped ! Order within:

Get an Extra Hour with

$325.35
$407.29
$325.35

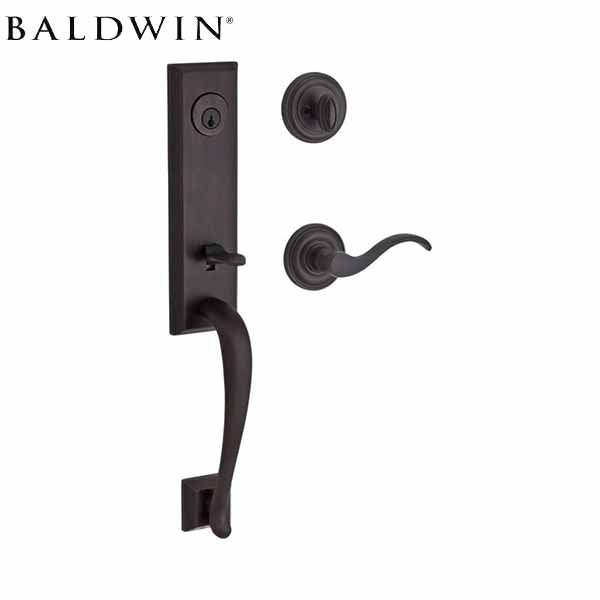

Baldwin Del Mar Left Handed Standard C Keyway Single Cylinder Keyed Entry Handleset with Traditional Square Rose and Curve Lever on Interior

Baldwin's single cylinder handleset has a keyed cylinder on the exterior and a thumbturn on the interior. Unlocking and locking the deadbolt is done by either a key on the exterior or via the thumbturn on the interior. This handleset includes both the interior and the exterior for a complete entrance solution. Baldwin Reserve Series products are constructed from solid brass - providing a more luxurious, higher quality feel than door hardware made with lesser metals. When you hold a Baldwin product in your hand, you will immediately notice the difference that solid brass makes – it is heavier, stronger, and smoother than most of the door hardware on the market today.


Features:
  • Baldwin 5-pin C-Keyway standard
  • Guide posts for easy installation
  • Tested to exceed ANSI/BHMA Grade 2 security
  • Designed for Right handed doors
  • Solid brass deadbolt latch with hardened steel roll pin for additional strength and security
  • Interior comes in same finish as exterior. If split finish is desired, please contact customer service
  • Limited Lifetime Mechanical Warranty and Limited 25 Year Finish Warranty

Call 1-800-878-6604 for Bulk / Dealer Pricing!

    Specifications

    Dimensions and Measurements

    Backset
    2-3/4", 2-3/8", Adjustable 2-3/8" or 2-3/4"
    Center to Center 5.5 in.
    Cross Bore
    1"
    Door Thickness
    2", 1-7/8", 1-3/4"
    Edge Bore
    1"
    Grip Center to Center
    8.4062 in.
    Handle Projection 2.89 in.
    Interior Handle Length
    3.9687 in.
    Overall Height
    16.8125 in.
    Trim Height
    9.5 in.
    Trim Width
    2.6875 in.

    Included Components

    Cylinder Included
    Yes

    Characteristics and Features

    Configuration Handleset
    Cylinder 5 Pin C
    Function Single Cylinder, Keyed Entry
    Handing Right
    Interior Handle Style
    Lever
    Keyway C
    Latch Faceplate
    Square Corner, Drive-In, Round Corner
    Lock Style
    Single Point
    Material Brass
    Mount One Piece
    Solid Construction Solid Brass
    Theme Transitional

    Manufacturer Technology

    SmartKey No

    Warranty and Product Information

    BHMA Certification Grade 2
    Collection Reserve
    Product Class
    Residential
    Series Del Mar


    Downloads

    Return Policy: We do not accept returns on unsealed products. In order to return a defective item a support ticket is needed. To receive a ticket, please contact Baldwin directly at 800-566-1986 or visit their support page here. Once you have the ticket contact UHS Hardware for the return.
