Baldwin Reserve - EN.ARC.RSR - Arch Lever Set - Rustic Square Rose - 481 - Dark Bronze - Entry - Grade 2 - RH
In Stock
SKU:
BLD-EN.ARC.R.RSR.481.6L.DS.CKY.KD
NSID:
7604
Get it shipped ! Order within:
Get it shipped ! Order within:
Get an Extra Hour with
- $166.40
-
$203.58 - $166.40
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per

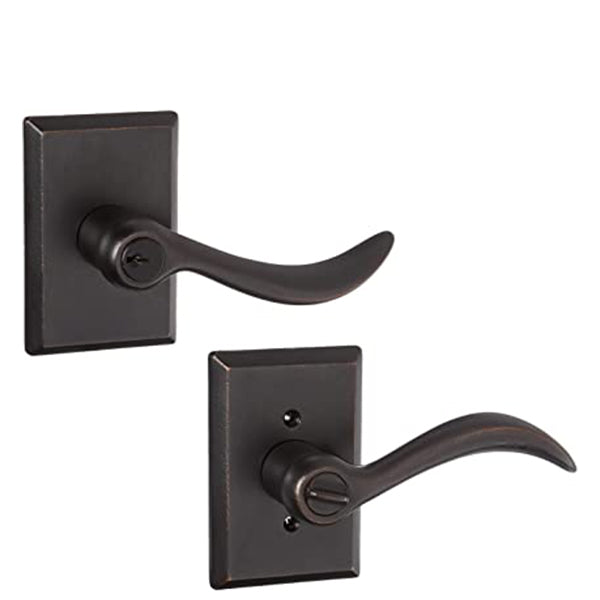

Baldwin Arch Single Cylinder Leverset with Rustic Square Rose
Baldwin's Arch lever features a substantial size and a hand distressed look, giving the classic shape of the Arch lever a rustic appearance. The either dark or white bronze finishes are both sophisticated an luminous, while also providing a long lasting luster with their durable lacquer finish. Featuring the Rustic Square Rose which adds to the weathered look and feel of the already exquisite door lever.
Features:
- Solid forged brass construction built to last a lifetime.
- To personalize your look, this Rustic inspired design is available in 2 finishes.
- Baldwin 5-pin C-Keyway standard.
- Versatility and Easy Installation:
- Adjustable Latch for both 2-3/8" and 2-3/4" backset
- Round Corner, Square Corner and Drive-In Latch Plates
- Includes both Round Corner and Square Corner Strike Plates
- Guide Post for Easy Installation
- Accommodates door thickness 1-3/8" to 2". Up to 2-1/2" thick door with service part kit (Part Number: 8BR0706).
- 2-1/8" cross bore and 1" edge bore for latch.
- Tested to exceed ANSI/BHMA Grade 2 security.
- Shown with Rustic Square Rose, can be customized with other Reserve roses.
- Features easy-to-install spring assisted chassis for optimal operational strength.
- Limited Lifetime Mechanical Warranty and Limited 25 Year Finish Warranty.
Specifications
| Configuration | Leverset |
| Function | Keyed Entry, Single Cylinder |
| Cylinder | 5 Pin C |
| Finish | 481 - Dark Bronze |
| Handing | Right Hand |
| Backset | 2-3/4", 2-3/8", Adjustable 2-3/8" or 2-3/4" |
| Latch Faceplate | Square Corner, Drive-In, Round Corner |
| Cross Bore | 2-1/8" |
| Edge Bore | 1" |
| Door Thickness | 1-1/2", 1-3/4", 1-3/8", 1-5/8", 1-7/8", 2", 2-1/2", 2-1/4", 2-1/8", 2-3/8" |
| Handle Length | 4.5 in. |
| Trim Diameter | 2.625 in. X 4 in. |
| Concealed Screws | No |
| BHMA Certification | Grade 2 |
