Baldwin Reserve - PS.SQU.CSR - Contemporary Square Lever Set - Square Rose - 150 - Satin Nickel - Passage - Grade 2 - LH
- Product SKU: BLD-PS.SQU.L.CSR.150.6L.DS
-
BLD-PS.SQU.L.CSR.150.6L.DS

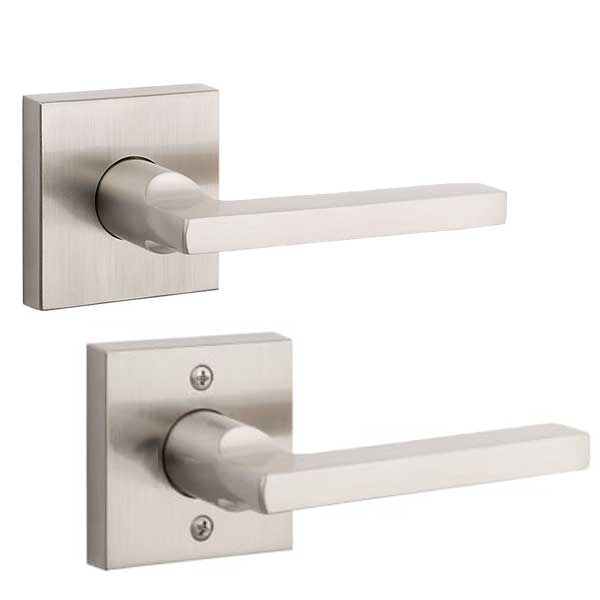

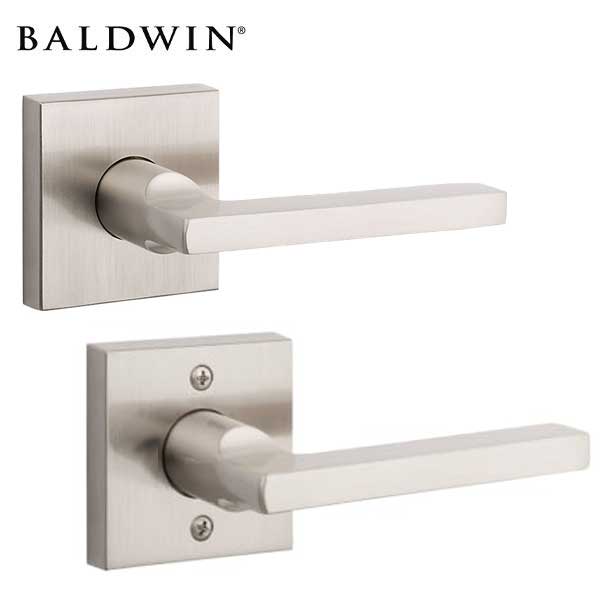

Item Number: 8096Baldwin Square Passage Door Lever Set with Contemporary Square Rosette
Passage Function: Passage door hardware has no locking mechanism. Both the interior and exterior handles are always free making it perfect for hallways, closet doors, and anywhere else a lock isn't needed. Passage door hardware can also be used in conjunction with a deadbolt to secure a back door or entrance.
Features:
- Tested to exceed ANSI/BHMA Grade 2 security requirements
- Constructed of solid brass for durability and premium feel
- Includes round, square and drive-in latch faceplates
- Easily installs on standard prep door from 1-3/8" to 2" thick
- Features easy-to-install spring assisted chassis for optimal operational strength
- Limited Lifetime Mechanical Warranty and Limited 25 Year Finish Warranty
- Rosette has exposed screws on one side
- Tested to exceed ANSI/BHMA Grade 2 security requirements
Specifications
| Configuration |
Leverset |
| Function |
Passage |
| Cylinder | No Cylinder |
| Finish | 150 - Satin Nickel |
| Handing | Left Hand |
| Backset | Adjustable 2-3/8" or 2-3/4" |
| Latch Faceplate |
Drive-In, Round Corner, Square Corner |
| Cross Bore |
2-1/8" |
| Edge Bore | 1" |
| Door Thickness |
1-3/4" to 2" |
| Handle Length |
4.25" in. |
| Trim Diameter | 2.5625 in. x 2.5625 in. |
| Concealed Screws | No |
| BHMA Certification |
Grade 2 |
Downloads
Return Policy: We do not accept returns on unsealed products. In order to return a defective item a support ticket is needed. To receive a ticket, please contact Baldwin directly at 800-566-1986 or visit their support page here. Once you have the ticket contact UHS Hardware for the return.
BLD-PS.SQU.L.CSR.150.6L.DS
Item Number: 8096
Baldwin Square Passage Door Lever Set with Contemporary Square Rosette
Passage Function: Passage door hardware has no locking mechanism. Both the interior and exterior handles are always free making it perfect for hallways, closet doors, and anywhere else a lock isn't needed. Passage door hardware can also be used in conjunction with a deadbolt to secure a back door or entrance.
Features:
- Tested to exceed ANSI/BHMA Grade 2 security requirements
- Constructed of solid brass for durability and premium feel
- Includes round, square and drive-in latch faceplates
- Easily installs on standard prep door from 1-3/8" to 2" thick
- Features easy-to-install spring assisted chassis for optimal operational strength
- Limited Lifetime Mechanical Warranty and Limited 25 Year Finish Warranty
- Rosette has exposed screws on one side
Specifications
| Configuration |
Leverset |
| Function |
Passage |
| Cylinder | No Cylinder |
| Finish | 150 - Satin Nickel |
| Handing | Left Hand |
| Backset | Adjustable 2-3/8" or 2-3/4" |
| Latch Faceplate |
Drive-In, Round Corner, Square Corner |
| Cross Bore |
2-1/8" |
| Edge Bore | 1" |
| Door Thickness |
1-3/4" to 2" |
| Handle Length |
4.25" in. |
| Trim Diameter | 2.5625 in. x 2.5625 in. |
| Concealed Screws | No |
| BHMA Certification |
Grade 2 |
Downloads
Return Policy: We do not accept returns on unsealed products. In order to return a defective item a support ticket is needed. To receive a ticket, please contact Baldwin directly at 800-566-1986 or visit their support page here. Once you have the ticket contact UHS Hardware for the return.
