Baldwin Reserve - PV.TUB.CRR- Tubular Lever Set - Contemporary Round Rose - 150 - Satin Nickel - Privacy - Grade 2 - RH
- Product SKU: BLD-PV.TUB.R.CRR.150.6L.DS
- NSID: 7593
-
BLD-PV.TUB.R.CRR.150.6L.DS

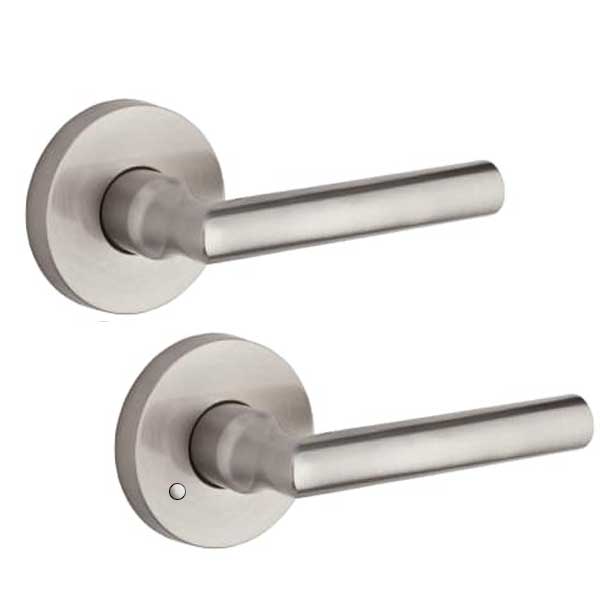

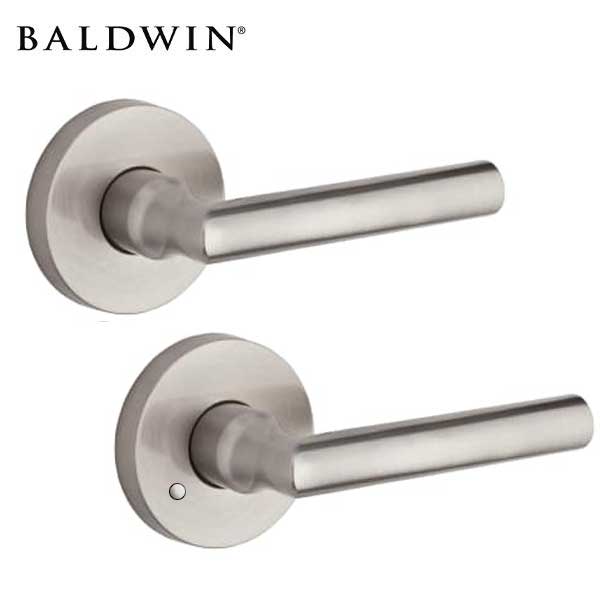

Baldwin Tube Privacy Leverset with Contemporary Round Rose
Privacy Function: Privacy door hardware features a locking mechanism on the interior for use on bedroom and bathroom doors where locking is needed. The exterior side features a small pin hole to unlock the door hardware from the outside. Emergency release tool included (small pin)
Features:
- Tested to exceed ANSI/BHMA Grade 2 security requirements
- Constructed of solid brass for durability and premium feel
- Includes round, square and drive-in latch faceplates
- Easily installs on standard prep door from 1-3/8" to 2" thick
- Features easy-to-install spring assisted chassis for optimal operational strength
- Limited Lifetime Mechanical Warranty and Limited 25 Year Finish Warranty
- Rosette has exposed screws on one side
- Tested to exceed ANSI/BHMA Grade 2 security requirements
Specifications
| Configuration |
Leverset |
| Function |
Privacy |
| Cylinder | No Cylinder |
| Finish | 150 - Satin Nickel |
| Handing | Right Hand |
| Backset | Adjustable 2-3/8" or 2-3/4" |
| Latch Faceplate |
Drive-In, Round Corner, Square Corner |
| Cross Bore |
2-1/8" |
| Edge Bore | 1" |
| Door Thickness |
1-3/4" to 2" |
| Handle Length |
4.25" in. |
| Trim Diameter | 2.5625 in. x 2.5625 in. |
| Concealed Screws | No |
| BHMA Certification |
Grade 2 |
Downloads
Return Policy: We do not accept returns on unsealed products. In order to return a defective item a support ticket is needed. To receive a ticket, please contact Baldwin directly at 800-566-1986 or visit their support page here. Once you have the ticket contact UHS Hardware for the return.
